Vertiv 1 RMU 19 in Cable MGT BAR 5 D Rings BLK - CM-05

Vertiv CM-05 Concise Descriptor

Overview

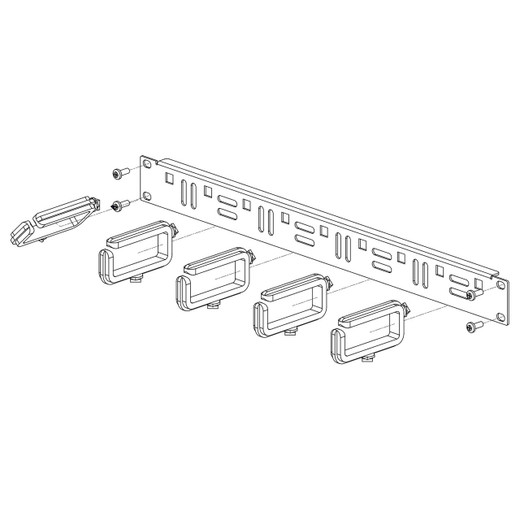

The Vertiv CM-05 is a 1 RMU (Rack Unit) high, 19-inch wide cable management bar designed to organize and route cables within network and server racks. Featuring five D-rings, it provides discrete attachment points for bundling and securing network patch cords, power cables, and fiber optic runs. This accessory is crucial for maintaining airflow and simplifying maintenance in dense rack environments, particularly when deploying equipment like NEMA 12K wall mounts or standard 19" rack-mount servers and switches. The CM-05 model is finished in black for a clean aesthetic.

Compatibility

This cable management bar is designed for 19-inch rack installations. It is explicitly listed for use with the following Vertiv rack and wall-mount enclosures: WMCM, WDX, WLP, NEMA, WM, WD, WE, 15WM, SR, and SRD. It also supports the 7206-EIA, 7206-FR-A18, 7206-SL, and 7206-FRSL-AHD stationary and sliding shelves, as well as the WMPK-CMD pole mount kit. The CM-05 itself occupies 1 RMU of vertical space.

Installation Notes

The CM-05 is designed for standard 19-inch rack mounting. It utilizes #10-32 screws (HDW-102-50) for mounting to rack rails, and #12-24 screws (HDW-104-50) are provided for direct attachment to specific wall mount enclosures like WM, WMCM, WLP, WD, N12, SR, and SRD when using the WMPK-CMD pole mount kit. The unit occupies 1 RMU of vertical rack space.

What's in the Box

• 1x Vertiv CM-05 Cable Management Bar
• Package of 50x #10-32 x 1/2" Phillips Pan Head Screws (HDW-102-50)
• Package of 50x #12-24 x 1/2" Phillips Pan Head Screws (HDW-104-50)
