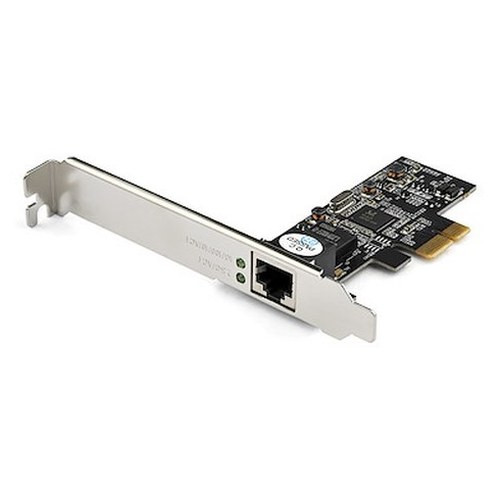

StarTech ST2GPEX 2.5GbE Single-Port PCIe Network Adapter

Overview

The StarTech ST2GPEX is a single-port 2.5 Gigabit Ethernet network card that drops into any available PCIe x1 slot and delivers Multi-Gigabit connectivity over standard Cat5e or better cabling — no infrastructure rip-and-replace required. Built around the Realtek RTL8125B chipset, it auto-negotiates across 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps, making it a practical fit for workstations, servers, or NVRs that need more throughput than Gigabit but aren't stepping up to a full 10GbE investment. For network expansion cards in surveillance and commercial IT environments, the ST2GPEX sits at a realistic price-to-performance point where the 2.5x bandwidth increase over standard GbE is immediately felt when pulling high-bitrate video streams or running backup jobs concurrently with live recording.

Key Features

• 2.5Gbps Multi-Gigabit throughput: The 2.5GbE spec means you get 2.5x the raw bandwidth of standard Gigabit Ethernet without touching your Cat5e cabling plant. On an NVR pulling streams from a dozen 4K cameras, that headroom matters — you are no longer bandwidth-constrained at the network card before the disk subsystem gets involved.
• Realtek RTL8125B chipset: The RTL8125B has broad OS driver support across Windows, Linux, and FreeBSD. For integrators deploying on Windows Server or Linux-based VMS appliances, this means drivers are readily available without hunting for legacy support packages.
• PCIe x1 bus interface: A single PCIe x1 lane is sufficient for 2.5GbE — the card won't waste a wider x4 or x8 slot. It also installs in any x1, x4, x8, or x16 slot (physical compatibility goes both ways), giving you flexibility in tight server or workstation motherboards where slot real estate is at a premium.
• 16K jumbo frame support: Jumbo frames reduce CPU overhead on large data transfers by allowing bigger payloads per packet. At 16K maximum, this card supports the largest common jumbo frame sizes — useful for iSCSI-attached storage or bulk video file transfers where CPU cycles matter.
• IEEE 802.1q VLAN tagging: Native VLAN support at the NIC level lets you segment security camera traffic from general office traffic without adding a managed switch port per device. This is the spec that matters when you are hardening a surveillance network against lateral movement on a shared LAN.
• Standard profile form factor: At 3.1 in × 4.7 in × 0.8 in and 1.3 oz, the ST2GPEX fits standard ATX and micro-ATX cases. It ships as standard profile — verify your chassis supports it if you are working in a compact or SFF enclosure.
• Dual LED indicators: One dedicated green LED for 2.5Gbps link confirmation, a second for 1Gbps/100Mbps/10Mbps — so you can confirm negotiated link speed at a glance without opening a management console. Practical during installation and troubleshooting.
• IEEE 802.3bz / 802.3ab / 802.3u / 802.3i compliance: Full compliance across the relevant Ethernet standards ensures interoperability with 802.3bz-capable switches (the Multi-Gigabit standard) as well as legacy GbE, Fast Ethernet, and 10BASE-T infrastructure. The card will operate correctly even when connected to a switch that only supports 1Gbps — it just negotiates down.
• Operating range 5°C to 50°C: Covers standard conditioned server room and office environments. If your installation runs in an unconditioned space that can exceed 50°C ambient, plan for supplemental cooling or choose a card rated for wider industrial temperatures.

Integration and Compatibility

The ST2GPEX connects via a standard RJ-45 port and integrates directly with any managed or unmanaged network switch supporting IEEE 802.3bz for full 2.5GbE operation. Pair it with a 2.5GbE-capable switch port to realize the full throughput benefit — connecting it to a 1GbE-only switch will result in automatic negotiation to 1Gbps, which still works but leaves the card's primary advantage on the table. For surveillance deployments, the card fits naturally alongside network video recorders where the onboard NIC is already saturated by high-bitrate camera streams. The 12V DC input voltage is drawn directly from a standard PCIe slot — no auxiliary power connector required. VLAN 802.1q support integrates with downstream managed switches for traffic segmentation without needing additional hardware. For guidance on planning network bandwidth for IP camera deployments, the IP camera bandwidth planning guide covers stream bitrate calculations by resolution and frame rate. If your deployment includes PoE camera infrastructure, consider reviewing your PoE switch selection alongside this card to ensure the uplink to your NVR is not the bottleneck.

Frequently Asked Questions

Q: Does the ST2GPEX require a PCIe x1 slot specifically, or will it work in larger slots?

A: The ST2GPEX uses a PCIe x1 interface but is physically compatible with x1, x4, x8, and x16 slots. It will operate correctly in any of those — the x1 electrical connection is all it needs for 2.5GbE throughput.

Q: What cabling does the ST2GPEX require to run at 2.5Gbps?

A: Cat5e or better supports 2.5GbE (IEEE 802.3bz) at standard Ethernet distances. You do not need Cat6 or Cat6a to reach 2.5Gbps — this is one of the key advantages of the Multi-Gigabit standard over 5GbE or 10GbE.

Q: What is the warranty on the ST2GPEX?

A: StarTech covers the ST2GPEX with a 2-year manufacturer warranty.

Q: Will the ST2GPEX work if my switch only supports 1Gbps?

A: Yes. The card auto-negotiates across 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps per IEEE standards. Connected to a 1GbE switch port it will negotiate to 1Gbps and operate normally — you just won't get the 2.5Gbps benefit until the switch port is upgraded.

Q: Does the ST2GPEX support jumbo frames?

A: Yes, up to 16K maximum jumbo frame size. This reduces per-packet CPU overhead on large transfers, which is relevant for iSCSI storage connections and bulk video file operations on NVR or server platforms.

Q: Is the ST2GPEX compatible with Linux-based systems?

A: The Realtek RTL8125B chipset has broad driver availability across major operating systems including Linux distributions, making it viable for Linux-based VMS appliances and open-platform NVR builds. Confirm driver availability for your specific kernel version prior to deployment.

Marty Allison

The spec I keep coming back to on the ST2GPEX is the 16K jumbo frame ceiling on the RTL8125B — most installers think of 2.5GbE purely as a raw throughput story, but the jumbo frame support is what actually reduces CPU load on the host when you are streaming a dozen high-bitrate camera feeds into an NVR simultaneously. That combination is worth calling out specifically.

Technical Highlights:

• 2.5Gbps auto-negotiation: Operates at 2.5Gbps, 1Gbps, 100Mbps, or 10Mbps depending on switch capability — no manual configuration required. The 2.5x bandwidth increase over GbE is realized immediately on a 2.5GbE-capable switch without any cabling changes if you are already on Cat5e.
• PCIe x1 bus: Draws 12V DC directly from the PCIe slot — no auxiliary connector, no power supply modification. At 1.3 oz and 3.1 × 4.7 × 0.8 in, it occupies minimal slot space and fits standard ATX and micro-ATX platforms without clearance issues.
• 802.1q VLAN tagging: NIC-level VLAN support means security camera traffic can be segmented at the host without relying solely on switch port assignment — a meaningful layer of network hygiene in mixed-use environments.

Deployment Considerations:

• The 2.5GbE benefit is only realized end-to-end if the switch port also supports 802.3bz. Confirm your upstream switch has Multi-Gigabit ports before spec'ing this card as a throughput upgrade — otherwise you are installing a 1GbE card at 2.5GbE pricing.
• Operating temperature ceiling is 50°C — standard for conditioned server rooms but worth flagging for any NVR or workstation installed in a non-climate-controlled IDF closet or equipment cabinet where ambient temperatures can spike during summer months.

The ST2GPEX is the right call for an NVR or video management workstation running on Cat5e infrastructure where the existing GbE NIC is already near saturation from 4K camera streams — it delivers the bandwidth headroom without a switch infrastructure overhaul or a jump to the higher cost and complexity of 10GbE.
