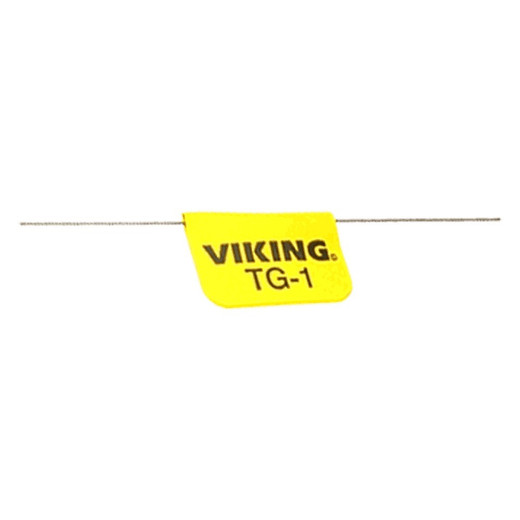

Viking 1 Line Privacy/Exclusion Device Punchdown Block - TG1

Viking Electronics TG1 Teleguard Line Privacy Device

Overview

The Viking Electronics TG1 is a Teleguard© privacy device designed to protect active telephone, fax, and modem transmissions from being interrupted when another extension is accidentally picked up. For any environment where a shared phone line carries business-critical fax or modem traffic — think small offices, backroom point-of-sale systems, or alarm communicators riding a POTS line — accidental pickup on a parallel extension is a real operational problem. The TG1 solves it at the wiring level, without software configuration or powered electronics.

Viking's Viking Electronics telephone products are widely deployed in commercial and industrial telephony applications where reliability and simplicity matter more than feature count. The TG1 fits that lineage: a passive, inline solution that installs on a punchdown block and requires no additional power source.

Key Features

• Extension Interruption Prevention: When a call, fax transmission, or modem session is active on the line, the TG1 blocks other extensions from breaking in — protecting data integrity on fax and modem sessions where a mid-transmission pickup causes a dropped connection or corrupted transfer.
• Fax and Modem Compatible: Unlike voice-only privacy devices, the TG1 is explicitly rated for fax and modem transmissions, making it suitable for legacy alarm panel dialers and analog fax machines still common in healthcare, legal, and light-industrial facilities.
• Punchdown Block Installation: Terminates directly on standard punchdown blocks, keeping the install clean and contained in the telecom enclosure — no splices, no inline barrel connectors.
• Passive Operation: Requires no external power supply, eliminating a failure point and simplifying the installation in locations without convenient AC access.

Integration and Compatibility

The TG1 is part of Viking's broader Teleguard© privacy product line, which covers single-line and multi-extension configurations. It is intended for analog POTS (plain old telephone service) lines and is compatible with standard telephone wiring infrastructure. If your environment has already migrated to VoIP handsets with a hosted PBX, this device is not applicable — privacy and exclusion at the extension level is handled by the PBX software in those deployments. The TG1 addresses the analog wiring layer specifically.

For facilities still running analog telephone entry systems or legacy alarm dialers alongside voice lines, the TG1 provides straightforward protection against cross-extension interference without touching the PBX or central office equipment.

Frequently Asked Questions

Q: What does the Viking TG1 actually prevent?

A: The TG1 prevents another phone extension on the same line from interrupting an active call, fax, or modem session. When the line is in use, picking up a parallel extension will not break the connection.

Q: Does the TG1 require external power?

A: No. The TG1 is a passive device and operates without an external power supply.

Q: Is the TG1 compatible with VoIP or digital phone systems?

A: The TG1 is designed for analog POTS lines. VoIP and digital PBX systems handle extension privacy at the software/PBX level and do not require this type of inline device.

Q: Does the TG1 work with fax machines and modem dialers?

A: Yes. Viking specifically rates the TG1 for fax and modem transmissions in addition to standard voice calls, making it suitable for alarm panel dialers and analog fax equipment.

Q: Where does the TG1 install in the wiring infrastructure?

A: The TG1 terminates on a standard punchdown block within the telecom wiring closet or enclosure — no inline splicing required.

Marty Allison

The TG1 is one of those devices that solves a very specific, very annoying problem in analog telephony deployments. If you're running an alarm panel dialer or a legacy fax machine on a shared POTS line, a single accidental pickup on a parallel extension drops your transmission mid-stream — and in the case of a Central Station dialer, that's a failed alarm report. The TG1 blocks that at the wiring level with no power, no configuration, and no ongoing maintenance.

Technical Highlights:

• Passive inline operation: No power supply required — eliminates a failure point in environments where reliable telephony is more important than features.
• Fax and modem rated: Viking explicitly covers data transmissions (fax, modem) in addition to voice — relevant for alarm communicators and POS dialers still running on analog.
• Punchdown block termination: Installs cleanly in the telecom enclosure on standard punchdown blocks — no field splices, no barrel connectors to corrode.

Deployment Considerations:

• This device addresses the analog wiring layer only. If your site has already cut over to VoIP or a hosted PBX, the TG1 has no role — extension privacy is managed by the PBX in those environments.
• Evidence confirms fax and modem compatibility but does not specify maximum line count or multi-line configurations — verify with Viking if you need coverage across more than one analog line simultaneously.

The TG1 is the right fit for facilities still running analog alarm dialers, legacy fax, or point-of-sale modems on shared POTS lines where accidental extension pickup is causing failed transmissions. It is not the right tool for VoIP or digital PBX environments.
