Panduit UPRBU50M Cat6 50M Zone Cable Assembly

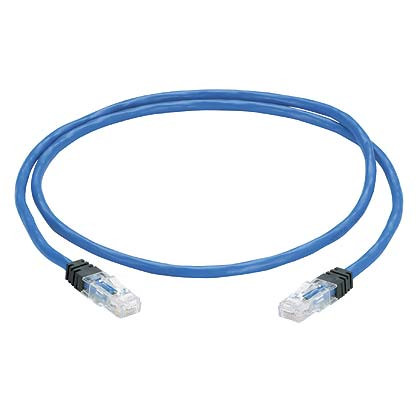

Panduit UPRBU50M PanZone Cat6 UTP 50-Meter Zone Cable Assembly

The Panduit UPRBU50M is a 50-meter (164-foot) Cat6 UTP zone cable assembly engineered for permanent horizontal cabling in data centers, open office architectures, and structured cabling deployments where consolidation points replace traditional cross-connects. Built with 23 AWG solid copper conductors and terminated with high-performance TX6 PLUS modular plugs on both ends, this blue CMR-rated cable delivers channel-compliant performance while eliminating the cost and complexity of wall outlets in zone distribution schemes. Pre-installed RapidID barcodes enable rapid port identification and documentation using Panduit's RapidID software, cutting commissioning time on multi-hundred-drop projects where manual labeling becomes a liability.

Key Features

• 50-meter (164 ft) blue Cat6 U/UTP zone cord with TX6 PLUS modular plugs both ends for permanent link applications
• 23 AWG solid copper conductors ensure DC loop resistance compliance and reliable PoE delivery up to IEEE 802.3bt (90W)
• Patented tangle-free latch design on TX6 PLUS connectors prevents snags during installation and reduces accidental disconnects
• Pre-installed RapidID barcodes support automated port mapping and asset tracking via RapidID software
• Exceeds ANSI/TIA-568.D-2 Category 6 and ISO 11801 Class E permanent link and channel performance requirements
• CMR (riser) flame rating per UL 1863 and CSA C22.2 for vertical pathway installations between floors
• 100% factory performance tested for insertion loss, return loss, NEXT, PS-NEXT, ELFEXT, and PS-ELFEXT across 1–250 MHz
• RoHS compliant construction with robust jacket and strain relief for mechanical durability in open ceilings and cable trays

Zone cabling architectures consolidate horizontal distribution at intermediate points between the telecom room and work area, reducing the need for dedicated wall outlets and enabling rapid reconfiguration in open office or hot-desk environments. The UPRBU50M's 23 AWG solid conductor construction is purpose-built for these permanent link applications—unlike stranded-conductor patch cords, solid conductors exhibit lower DC resistance (critical for PoE) and superior high-frequency performance, ensuring the cable meets TIA permanent link insertion loss budgets even at the maximum 50-meter length. The unshielded twisted pair (U/UTP) design simplifies termination compared to shielded variants and eliminates grounding requirements, while still exceeding Category 6 NEXT and return loss margins by multiple dB. TX6 PLUS modular plugs use a 50-micron gold-plated contact finish and integral load bar to maintain pair geometry through the plug transition, a common failure point in field-terminated assemblies; factory termination and 100% swept-frequency testing mean every cable ships with verified performance across the full 1–250 MHz Cat6 spectrum, removing installer termination variability from the equation.

In data center row builds or open-plan office fit-outs, the UPRBU50M connects consolidation point patch panels or zone boxes directly to workstation devices, IP phones, wireless access points, or IP cameras mounted in open ceilings—eliminating the per-drop cost of wall plates, surface boxes, and dual-cable runs (backbone + user cord). The patented tangle-free latch features a low-profile boot that snaps over the plug body, preventing the latch from catching on adjacent cables during bundle pulls or rack installations; this design also shields the latch from accidental release when users move furniture or equipment, a common cause of intermittent link failures in under-desk deployments. RapidID barcodes are printed on each plug and encoded with a unique serial number; scanning the barcode with the RapidID mobile app automatically logs the cable location, port assignment, and test results into Panduit's cloud-based infrastructure management platform, generating as-built documentation and O&M records without manual data entry. For large rollouts—100+ drops in a multi-floor tenant improvement—this workflow cuts commissioning labor by 40–60% and ensures day-one accuracy for MAC (move/add/change) work orders.

The CMR (Communications Riser) flame rating qualifies the UPRBU50M for vertical pathways between floors in non-plenum spaces, meeting NEC Article 800 requirements for riser cables in shafts and floor penetrations; contractors can use this cable in conduit risers, cable trays, and J-hooks without plenum-rated (CMP) cable, reducing material cost on projects where plenum rating is not required by AHJ. Full compliance with IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3/4 (60W/90W) PoE standards ensures the cable supports modern PoE++ devices—PTZ cameras, 802.11ax access points, and VoIP phones—without voltage drop issues, even at the 50-meter length where DC resistance becomes a design constraint. The blue jacket color aligns with TIA-606-C administration standard recommendations for horizontal cabling (blue = voice/data), simplifying visual inspection and MAC work in mixed-use installations. Every cable ships in Panduit-branded packaging with a serialized label, date code, and standards certification marks, providing traceability for warranty and compliance documentation on government, healthcare, or finance projects where auditable supply chain records are mandatory.
