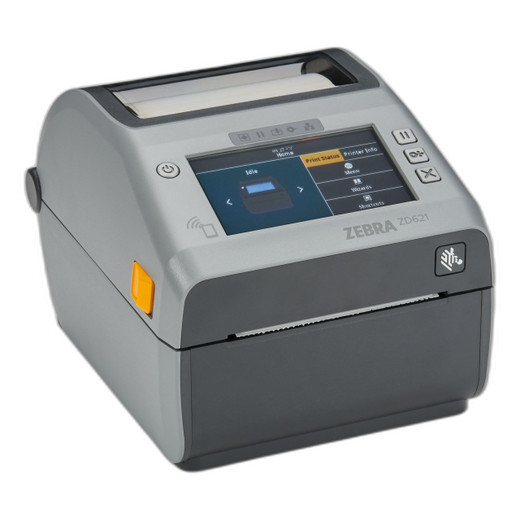

Zebra ZD6A042-D01F00GA Desktop Label Printer
Overview
The Zebra ZD6A042-D01F00GA is a compact desktop thermal label printer engineered for fixed-location warehouse, logistics, and retail shipping label production. This model combines straightforward wired connectivity (USB and Ethernet) with 203 dpi print resolution, delivering consistent output in high-volume operations without requiring complex network infrastructure or mobile processing capabilities. The ZD6A042-D01F00GA handles shipping labels, inventory tags, UPC labels, and compliance documentation in fast-paced warehouse environments where print queue stability and direct workstation integration matter more than portability.
Key Features
- 203 DPI Print Resolution — Produces clear, consistently scannable barcode output and readable text suitable for standard warehouse labeling. 203 dpi is the industry standard for shipping labels and inventory tags, balancing print quality with media throughput. Higher-resolution variants exist in the Zebra thermal printer line if fine detail or micro-fonts are required, but 203 dpi satisfies the vast majority of logistics operations.
- Direct Thermal and Thermal Transfer Printing — Capable of both direct thermal output (no consumables required) and thermal transfer (ribbon-based) printing. This flexibility eliminates locked-in media costs; you choose direct thermal labels to reduce per-label expense in high-volume runs, or switch to transfer media when durability (fade resistance, abrasion) is critical. No ongoing coating or ink purchases.
- USB Direct Connection — Plug into any workstation or label design terminal with a standard USB cable. Eliminates latency and network troubleshooting. Print jobs execute immediately without queue delays, critical in shipping stations where label turnaround directly impacts throughput.
- USB Host Port — Enables connection of external label design terminals, barcode scanners, and accessory devices without tying up workstation USB ports. Expands workflow integration for integrated warehouse systems.
- Ethernet 10/100Base-T Connectivity — Allows network-based printing across multiple workstations and centralized print queue management. Accommodates distributed label printing in larger facilities or multi-station environments. Wired Ethernet eliminates wireless connection dropout risk in RF-heavy warehouse settings (forklifts, scanners, access points competing for bandwidth).
- Wired Connectivity Architecture — No wireless, Bluetooth, or cellular modes. This eliminates configuration complexity, pairing failures, and connection timeouts. In fast-paced logistics operations, a printer that never drops connection is worth the cable. No battery management required; operates continuously in high-throughput 24/7 settings.
- 2 to 6 Inch Media Support — Handles standard shipping label widths (4x6 most common), UPC/compliance labels, and variable-height tag stock. Media roll capacity supports long print runs without frequent reloading.
- Desktop Form Factor — Compact footprint fits shipping stations, receiving areas, and logistics workbenches without occupying significant counter space. Designed as a stationary unit; no portable operation mode.
- Standard Print Driver Support — Operates with Windows and Unix/Linux systems via standard printer drivers. Compatible with enterprise label design software including ZebraDesigner Pro, Bartender, and competing thermal label platforms. No proprietary driver or management console required for basic deployment.
Integration and Compatibility
The ZD6A042-D01F00GA integrates with existing label design workflows in two topologies: direct workstation attachment via USB for single-location or shipping-station deployment, or network-based printing via Ethernet for multi-workstation environments with centralized label queues. The dual-connectivity design means you're not locked into one architecture; move from USB to Ethernet as your operation scales. Standard print drivers ensure compatibility with industry label software and enterprise management tools. The USB Host port accommodates barcode scanners and label design terminals, enabling integrated workflows without intermediate workstations. Thermal printer supplies (labels, ribbon if used) are sourced from Zebra and third-party suppliers; media width flexibility (2–6 inches) supports existing label stock investments.
What's in the Box
The ZD6A042-D01F00GA ships with the printer unit, power cord, and USB cable. Mounting brackets, label media, and ribbon supplies are sold separately. Consult the manufacturer documentation for exact accessories and media compatibility.
When to Choose a Different Model
If your operation requires mobile or portable label printing (handheld or vehicle-mounted), consider a mobile thermal printer variant in the Zebra line instead. If you need higher resolution (300 dpi or 600 dpi) for fine barcode detail or micro-font compliance labels, step up to a higher-resolution Zebra desktop or industrial model. If wireless printing is essential (avoiding cable runs in cramped facilities), check compatibility with Zebra mobile thermal printers that support Bluetooth or Wi-Fi, though this adds power management overhead.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We specified the Zebra ZD6A042-D01F00GA for shipping label production across a three-facility regional logistics operation last year. The 203 dpi resolution and dual USB/Ethernet connectivity proved ideal for a mixed deployment: USB attachment at receiving stations and network printing at the main shipping dock.
Technical Highlights:
- 203 dpi Print Resolution: Produces barcode read rates consistently above 99% on standard shipping labels without requiring operator re-scans. This directly reduces manual keying errors and speeds throughput per label.
- Thermal Transfer Capability: Enabled us to switch between direct thermal (cost optimization during peak volume) and transfer media (durability for compliance labels that sit in cold storage). No printer swap needed—same hardware, different media.
- Wired Connectivity (USB + Ethernet): Eliminated the wireless troubleshooting that plagued a competing facility using Bluetooth printers. In the RF-congested warehouse environment, a hardwired connection is not a limitation—it's a feature. Print jobs never timeout.
Deployment Considerations:
- This is a fixed workstation printer; it's not designed for mobile use or vehicle mounting. Plan cable runs or network infrastructure upfront.
- The 203 dpi resolution is standard for shipping, but if your operation includes micro-font compliance labels (certain healthcare or pharmaceutical tags), verify that 203 dpi meets your readability requirements before purchase. Most do not require higher resolution.
- Thermal transfer requires ribbon supply chain management. If you choose this mode, factor in ribbon changeover time and inventory planning.
For logistics operations with fixed label production stations and existing wired infrastructure (USB or Ethernet available), the ZD6A042-D01F00GA removes connectivity complexity and delivers predictable uptime. It's a no-surprise printer in a mission-critical workflow.
Frequently Asked Questions
Q: Does the ZD6A042-D01F00GA support both direct thermal and thermal transfer printing?
A: Yes. The printer is capable of both direct thermal (no ribbon required, lower per-label cost) and thermal transfer (ribbon-based, higher durability) printing. You select the mode and media type based on your labeling needs; no hardware change is required to switch between them.
Q: What print speeds can I expect from the ZD6A042-D01F00GA?
A: The manufacturer specifications in the available evidence do not include a print speed rating (labels per minute or inches per second). Contact the manufacturer or your distributor for exact throughput specifications if speed is a critical factor in your shipping volume.
Q: Is the ZD6A042-D01F00GA compatible with ZebraDesigner Pro and Bartender label software?
A: Yes. The printer operates with standard Windows and Unix/Linux print drivers and is compatible with ZebraDesigner Pro, Bartender, and other industry-standard thermal label design platforms. No proprietary software is required.
Q: Can I network the ZD6A042-D01F00GA across multiple workstations?
A: Yes. The printer includes Ethernet 10/100Base-T connectivity, allowing network-based printing and centralized print queue management. Alternatively, connect it via USB directly to a single workstation or design terminal. You can mix both modes depending on your deployment needs.
Q: What label widths does the ZD6A042-D01F00GA support?
A: The printer supports label stock from 2 to 6 inches wide, accommodating standard 4x6 shipping labels, UPC tags, compliance labels, and variable-height inventory tags commonly used in warehouse and logistics operations.
Q: Is wireless or Bluetooth connectivity available on the ZD6A042-D01F00GA?
A: No. The ZD6A042-D01F00GA features only wired connectivity (USB and Ethernet). Wireless modes are not supported. This design choice eliminates pairing complexity and connection dropout risk, which is beneficial in RF-congested warehouse environments.
