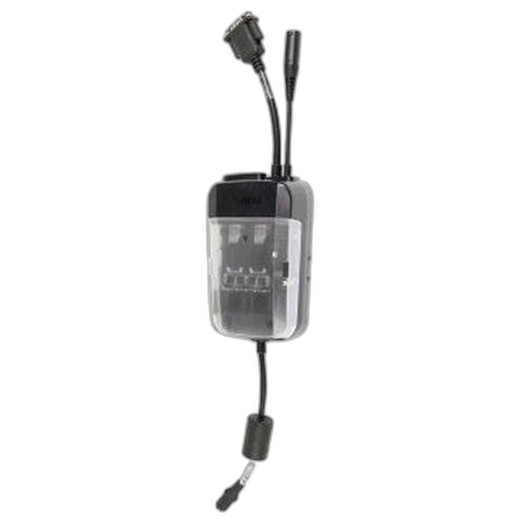

Zebra SHARE-USBH-01 USB IO Hub with 15-Pin D Connector
Overview
The Zebra SHARE-USBH-01 is a specialized USB IO Hub designed to integrate with specific Zebra vehicle cradles. It provides essential connectivity for data transfer and charging, particularly in mobile environments where direct USB connections are needed for peripherals or data logging. This hub is a custom product, intended for deployment scenarios requiring a robust connection via its 15-pin D-connector, often found in fleet management or field service applications using compatible Zebra mobile computers.
Compatibility
This USB IO Hub is designed for use with specific Zebra vehicle cradles. It is compatible with cradles supporting mobile computers in the MC5x/MC6x series. Additionally, it is noted for compatibility with the EMC Product Line for TC53/TC58 devices, enabling data and charging functions through the cradle's 15-pin D-connector interface.
Installation Notes
The SHARE-USBH-01 requires specific power adapter cables for operation, such as the CHG-AUTO-CLA1-01 (Cigarette Lighter Auto Charger) or CHG-AUTO-HWIRE1-01 (Hard Wired Auto Charger), which provide 12/24V power. These cables connect to the hub and then to the vehicle's power source. The hub itself connects to the compatible Zebra vehicle cradle via its 15-pin D-connector.
What's in the Box
- 1x Zebra SHARE-USBH-01 USB IO Hub (15-pin D Connector)
