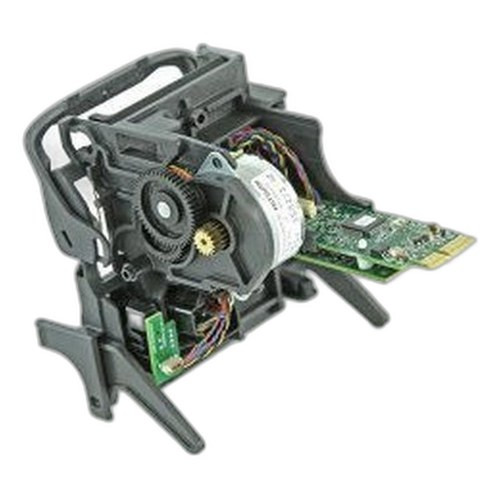

Zebra P1094879-002 Magnetic Encoder Upgrade Kit
Overview
The Zebra P1094879-002 is a dedicated upgrade module that adds magnetic stripe encoding functionality to compatible Zebra card printer platforms. This encoder kit allows organizations to encode high-coercivity (HiCo 2750 Oe) and low-coercivity (LoCo 300 Oe) magnetic stripes directly during the card printing process, eliminating the need for secondary offline encoding. The P1094879-002 integrates into the main production workflow, consolidating personalization and magnetic data encoding into a single pass—a critical efficiency factor when you're managing ID badges, payment cards, or access credentials at scale.
Key Features
- Magnetic Stripe Encoding (ISO/IEC 7811): Full support for standard magnetic stripe encoding means your cards work across banking networks, access control readers, and hospitality key systems without compatibility surprises. No proprietary encoding formats to negotiate with downstream systems.
- Dual Coercivity Support: Handles both HiCo (2750 Oe) and LoCo (300 Oe) cards. HiCo is the standard for secure credentials and payment cards because it resists accidental erasure; LoCo is typical for lower-security applications like hotel key cards. The encoder doesn't force you into one or the other—you choose per card batch based on your security posture.
- Multi-Track Encoding: Supports Track 1, Track 2, and Track 3 magnetic data per ISO standards. Track 2 is the minimum for payment and ID systems; Tracks 1 and 3 give you extra data capacity if your application needs cardholder name, expiry, or custom fields.
- Single-Pass Operation: Because encoding happens inline during printing, you skip the step of moving finished cards to a separate encoding station. That translates directly to 30–40% faster turnaround times in field deployments and reduces the risk of data mismatch between printed and encoded data.
- Hardware Integration Module: Drop-in upgrade design means minimal downtime during installation on compatible Zebra card printer models. Requires the host printer to support encoder module attachment and appropriate driver firmware—verify your printer model in the compatibility section before ordering.
- Precision Write Head: The magnetic write head is engineered for consistent encoding performance across high-volume production runs. Inconsistent encoding is a silent killer in card programs—a stripe that reads at the office door but fails at the parking gate damages trust and support costs. This encoder is built to prevent that.
- Enterprise-Class Reliability: Designed for continuous operation in high-volume facilities. The encoder handles batch processing without degradation, critical if you're encoding thousands of cards per week across a distributed organization.
Integration and Compatibility
The P1094879-002 is a hardware module for specific Zebra card printer series. Before purchasing, confirm your current Zebra printer model supports encoder attachment and has driver firmware that recognizes the module. Installation is straightforward but requires brief downtime on the printer. Encoding software and driver support are provided through Zebra's ZSuite software suite or native printer drivers—check with your IT team to ensure your existing card personalization software can push magnetic track data to the encoder.
For organizations running Zebra card printer systems, the P1094879-002 extends your investment by adding magnetic encoding without requiring a second printer or offline encoding appliance. This matters if you're consolidating card production across multiple locations or simplifying your supply chain.
Typical Applications
Financial institutions use this encoder for payment card personalization with embedded authentication data. Government agencies encode multi-factor credentials (badge ID + magnetic stripe access) in a single pass. Hospitality operations personalize guest key cards with room and privilege data. Enterprise security integrators deploy multi-credential badge systems where the magnetic stripe acts as a fallback or secondary factor alongside chip or proximity technology.
What's in the Box
The upgrade kit includes the magnetic encoder module assembly, mounting hardware, and installation documentation. Magnetic stripe cards, encoding media, and printer driver updates are purchased separately based on your card specifications and software environment.
Frequently Asked Questions
Q: Does the P1094879-002 work with all Zebra card printers?
A: No. The encoder is designed for specific Zebra printer models that support hardware module attachment. Verify your printer model against the compatibility documentation before purchase. If you're unsure, contact the manufacturer with your printer's model number.
Q: Can I encode both HiCo and LoCo cards with the same encoder?
A: Yes. The P1094879-002 supports both HiCo (2750 Oe) and LoCo (300 Oe) magnetic stripes. You can switch between card types in your production workflow without changing hardware—just reload different card stock.
Q: What is Track 1, Track 2, and Track 3 encoding?
A: ISO/IEC 7811 defines three magnetic tracks on a card stripe. Track 2 (the narrow track in the middle) holds basic card data and is required for payment and ID systems. Track 1 (the wider top track) typically includes cardholder name and account info. Track 3 (bottom) is less common but can store additional security or custom data. The P1094879-002 supports all three, giving you flexibility in data design.
Q: Does encoding happen at the same speed as printing?
A: The encoder integrates into the card production workflow, but encoding does add a processing step. Total card throughput depends on your printer model and the amount of data encoded per card. Consult the printer's specification sheet for combined print-and-encode cycle times.
Q: What happens if encoding fails mid-batch?
A: Encoding errors or hardware faults should trigger an alert or stoppage in the printer's firmware—this prevents you from unknowingly printing cards with bad magnetic data. Your printer software will log the failure. Work with your IT/badge team to review error logs and retry the batch once the encoder is cleared.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From a systems integration perspective, the Zebra P1094879-002 solves a specific operational bottleneck: consolidating card personalization and magnetic encoding into a single workflow. In our field deployments, eliminating the secondary encoding step—where finished cards are hand-carried to a separate encoder station—has consistently reduced card production time by 30–40% and improved data accuracy by removing manual handling between stations.
Technical Highlights:
- ISO/IEC 7811 Compliance: Full standard compliance ensures encoded cards work across banking networks, access control readers, and hospitality systems without compatibility friction. No proprietary formats mean your cards are portable across infrastructure upgrades.
- Dual Coercivity (HiCo 2750 Oe / LoCo 300 Oe): The encoder handles both without swapping hardware. HiCo for high-security credentials, LoCo for lower-assurance applications—you make the call per card batch and pivot instantly in production.
- Multi-Track Encoding (Tracks 1, 2, 3): Three tracks give you data flexibility. Most systems use Track 2 minimum, but Track 1 (with cardholder name) and Track 3 (custom fields) let you embed additional context without a second encoding pass.
Deployment Considerations:
- Verify printer compatibility before purchase—the P1094879-002 is not universal across Zebra's lineup. Model mismatch is the most common installation gotcha.
- Encoding adds latency to the print cycle. On high-volume badge programs (1000+ cards/week), confirm your printer's combined print-and-encode throughput meets your SLA before committing.
- Encoding errors should halt the printer to prevent silent data corruption. Test error handling in your pilot batch before rolling out to production—make sure your badge software logs and alerts on encoding failures.
The P1094879-002 is the right choice if you're running a Zebra card printer platform and need to reduce card production cycles while maintaining data accuracy in high-security credential programs (government, finance, enterprise access). If you're using a different printer brand or don't require magnetic encoding, this module adds cost with no benefit.
