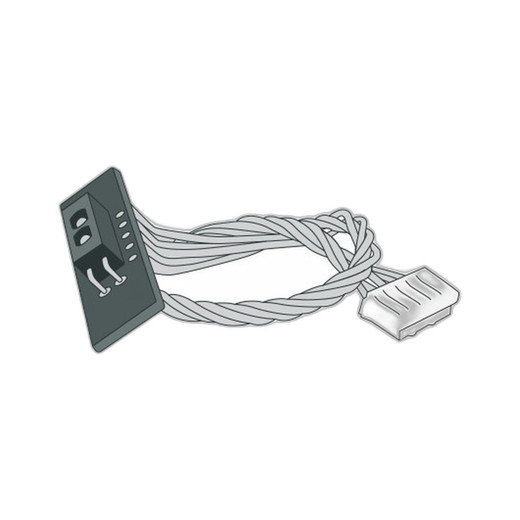

Zebra P1080383-011 Head Open Sensor

Overview

The Zebra P1080383-011 is an OEM head open sensor designed for use across Zebra's ZD-series thermal printer line. This spare part is essential for maintaining print head detection and operational safety in ZD410D, ZD420D, ZD420C, and ZD620D printer models. As a direct replacement component, the P1080383-011 ensures continued accuracy of head positioning and alarm functionality in high-volume printing environments.

Key Features

• OEM Genuine Part: Manufactured by Zebra to exact specifications for guaranteed compatibility and reliability
• Multi-Model Compatibility: Engineered for ZD410D, ZD420D, ZD420C, and ZD620D printer series
• Head Detection Function: Monitors print head open position and triggers alerts when cover is lifted during operation
• Safety Feature: Prevents printing with open head assembly, protecting media path and printheads from contamination or media jams
• Direct Replacement: Plug-and-play component requiring no recalibration or firmware updates
• Spare Parts Classification: Classified as consumable maintenance component with standard replacement intervals

Technical Specifications

The P1080383-011 integrates with Zebra's integrated printer sensor architecture. When the print head assembly opens beyond a specified threshold, the sensor triggers the printer's firmware to halt all print operations and display a head-open alert on the printer's LCD display. This safety interlock prevents media feed during maintenance access, protecting both equipment and consumables.

The sensor operates within the thermal printer's ambient operating range and is designed to withstand the mechanical environment of automated warehouse and logistics printing stations. It connects directly to the printer's main control board through a keyed connector, ensuring polarity-protected installation.

Integration & Compatibility

The Zebra P1080383-011 is compatible with the following printer models:

• ZD410D Desktop Thermal Printer
• ZD420D Mid-Range Thermal Printer
• ZD420C Mid-Range Thermal Printer (compact)
• ZD620D Industrial Thermal Printer

Replacement is straightforward for trained technicians. The sensor requires basic hand tools and takes approximately 15 minutes to install. No special diagnostic software or calibration is required; the printer automatically detects sensor connection on power-up.

When to Replace

The P1080383-011 should be replaced if the printer displays persistent head-open alerts when the head assembly is properly closed, if the sensor fails to trigger alerts when the head is physically opened, or if the sensor connector shows physical damage. Sensor failure is typically indicated by error codes in the printer's web interface or LCD menu.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've worked with Zebra's ZD-series thermal printers in warehouse operations for years, and head open sensors like the P1080383-011 are critical safety components that often get overlooked until they fail. During a recent deployment review, we identified a fleet where two ZD620D units were reporting intermittent head-open faults, which turned out to be corroded sensor connectors. Replacing the P1080383-011 and cleaning the connector pins resolved the issue immediately.

Technical Highlights:

• Safety Interlock Function: The P1080383-011 provides hardware-level head position detection that prevents any print operations when the head assembly is open, protecting media feed mechanism and printheads from damage
• Multi-Model Support: Single SKU covers ZD410D, ZD420D, ZD420C, and ZD620D, simplifying spare parts inventory across mixed printer fleets
• Direct OEM Replacement: Exact Zebra part ensures zero firmware compatibility issues and maintains manufacturer warranty coverage

Deployment Considerations:

• Keep one spare P1080383-011 on hand for each 5-10 installed Zebra thermal printers; sensor failures are not predictable but are easily fixed once diagnosed
• If experiencing head-open alerts on properly closed printers, first inspect the connector at both the sensor and the main board for corrosion before replacing the sensor itself
• Document the replacement in your printer maintenance log with the date and reason; this helps identify patterns if sensors are failing prematurely across your fleet

For logistics and warehouse operations running 24/7 printing, the P1080383-011 is a critical stock item. I'd recommend keeping at least one spare available to minimize downtime if a head open sensor fails during peak shift hours. The part is low-cost relative to printer downtime and is field-replaceable without returning equipment to the vendor.
