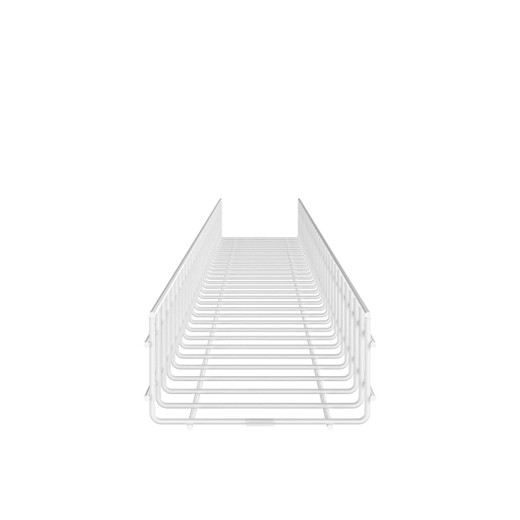

Panduit PWB4X8WH 4" x 8" Powder-Coated Steel Wire Basket
The Panduit PWB4X8WH is a 4" x 8" powder-coated steel wire basket engineered for structured cable management in data centers, connected buildings, and industrial automation environments. UL-classified as an Equipment Grounding Conductor per NEC Sections 392.3(C) and 392.7(B), this basket provides compliant overhead pathway routing for copper, fiber, and low-voltage cabling where code-adherent grounding and long-span support are non-negotiable. The white powder-coated finish integrates cleanly into finished ceiling spaces and plenum-rated environments without the visual weight of traditional cable tray.
Key Features
- UL-classified Equipment Grounding Conductor meeting NEC 392.3(C) and 392.7(B) requirements for code-compliant installations
- Powder-coated steel construction with white finish for corrosion resistance and clean integration in visible ceiling grids
- 4" x 8" pathway dimensions accommodate structured cabling bundles in data center hot/cold aisles and telecom rooms
- Compatible with Panduit wire basket mounting hardware, splice plates, and vertical riser systems
- Ships in cartons of 2 sections for efficient bulk staging on multi-floor buildouts
Wire basket provides the fill-ratio advantage of traditional ladder rack while delivering significantly lower installed weight per linear foot—critical when retrofitting above existing T-bar ceilings or spanning long runs between structural supports. The open-grid design maintains full visibility for adds/moves/changes and simplifies airflow modeling in DCIM planning tools. Panduit's powder-coat process bonds the finish to the steel substrate under heat and electrostatic charge, creating a barrier that resists chipping during handling and outlasts field-applied paint in high-vibration industrial settings. The white colorway meets the aesthetic requirements of Class A office build-outs and healthcare facilities where exposed overhead infrastructure must blend with architectural finishes.
This basket is part of Panduit's wire basket platform, which shares common mounting brackets, fittings, and grounding hardware across the product line. You can transition from 4" height sections to 2" low-profile runs or 6" high-capacity segments using the same hanger and splice components, reducing SKU sprawl in your truck stock. The 8" width handles typical 24-port patch panel bundles plus power whips without exceeding NEC fill limits, and the open construction allows passive cooling of PoE+ and PoE++ trunk cables that would overheat in solid-bottom tray. Installation crews will recognize this as a direct-swap alternative to Cooper B-Line CF105/200WH, Legrand FT4X8X10-WH, or Cablofil WBT4X8WH based on the competitor cross-reference data—use it wherever your drawings call out 4x8 basket and local supply is constrained.
The UL Equipment Grounding Conductor classification eliminates the need for supplemental ground straps or bonding jumpers when installed per the manufacturer's splice and termination instructions, saving both material cost and labor on every joint. This matters in large-scale deployments where even 15 minutes per splice point compounds across hundreds of sections. Engineers specifying this product should verify hanger spacing against the loaded weight of the cable plant and coordinate basket elevation with sprinkler head clearances, HVAC duct routing, and lighting fixture placements during the coordination drawing phase to avoid costly field rework.
