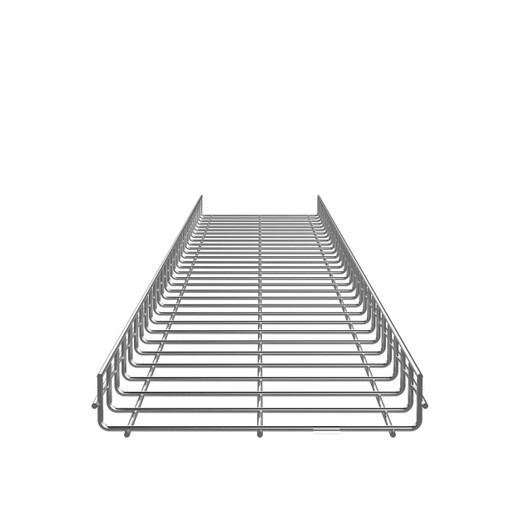

Panduit PWB2X12EZ 2" x 12" Electro Zinc Wire Basket Tray

The Panduit PWB2X12EZ is a 2-inch height by 12-inch width steel wire basket tray engineered for high-density cable routing in data centers, connected buildings, and industrial automation environments. Its electro zinc finish delivers corrosion resistance in climate-controlled spaces while maintaining UL classification as an equipment grounding conductor per NEC Sections 392.3(C) and 392.7(B). When you need overhead pathway infrastructure that supports both power and data cabling with Code-compliant grounding, this tray provides the structural capacity and electrical continuity required for mission-critical installations.

Key Features

2" × 12" cross-section accommodates Cat6A, fiber trunk, and 12-16 AWG power cabling in a single pathway

Electro zinc finish on steel mesh resists corrosion in HVAC-controlled server rooms and IDF closets

UL classified for use as Equipment Grounding Conductor under NEC 392.3(C) and 392.7(B) — eliminates separate bonding wire runs

Compatible with Panduit's PWC, PWRBS, and modular fitting ecosystem for end plates, tees, and crosses

Direct cross-reference for Cablofil CF54/300EZ, Legrand FT2X12X10, and Atkore WBT2X12ZP legacy installs

Wire basket trays solve the thermal and access challenges that solid-bottom ladder rack can't address in converged infrastructure deployments. The open-weave construction allows continuous airflow around bundled cables, preventing hot spots in densely packed pathways above racks or along ceiling grids. The 2-inch height provides adequate side-rail support for mixed-media bundles — you can route 10GbE copper alongside PoE trunk cables and 120VAC branch circuits without exceeding NEC fill ratios or creating separation violations. The 12-inch width fits standard 600 mm overhead grid spacing in Tier III data centers and aligns with 19-inch rack columns when wall-mounted vertically for riser applications.

Electro zinc plating is the correct finish choice for indoor commercial environments where you need cost-effective corrosion protection without the premium of hot-dip galvanized or stainless steel. It meets the exposure requirements of NFPA 70 Table 392.10(A) for dry and damp locations, covering 95% of security system backbone and structured cabling installs. The steel mesh maintains full electrical continuity across welded intersections, allowing the tray itself to function as the equipment grounding conductor when properly bonded at terminations — this eliminates the need to pull a separate green ground wire inside the basket, saving both labor and materials on long horizontal runs.

The PWB2X12EZ ships in 10-foot standard lengths (verify exact length with distributor as Panduit offers both stock and cut-to-order). Installation uses Panduit's tool-free PWC splice plate system or PWRBS adjustable hang rod brackets, both designed for fast overhead mounting to threaded rod, cable tray trapeze, or building structure. When integrating into existing Cablofil, Legrand, or Atkore wire basket systems, verify that the competitor's fitting hardware matches Panduit's 2-inch side-rail height and 0.281-inch wire gauge — the competitor part numbers listed (CF54/300EZ, FT2X12X10, WBT2X12ZP) are dimensionally interchangeable but may use different splice plate attachment methods. Always bond each tray section to building ground per NEC 392.60(A) and maintain continuity across non-conductive isolation fittings.
