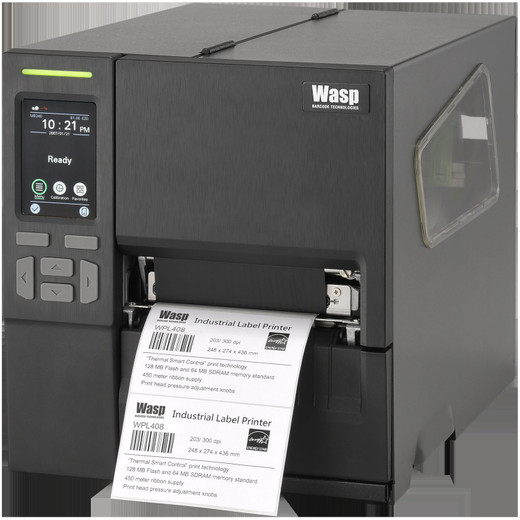

Wasp 633809007170 Wasp WPL408 Industrial Barcode Printer

Wasp 633809007170 Industrial Barcode Printer

Overview

The Wasp WPL408 (model 633809007170) is a compact thermal transfer and direct thermal industrial label printer rated for high-volume barcode production in warehouses, shipping, and inventory-driven operations. At 203 dpi and 10 ips print speed, it handles standard label formats with clean, scannable barcodes without the footprint of larger industrial units. The 3.5-inch color LCD touchscreen with menu-driven interface and one-step setup means minimal configuration time before deployment.

Key Specifications & Deployment Benefits

• Dual-mode printing (Thermal Transfer & Direct Thermal): Thermal transfer mode uses ribbons for longer label life and durability in harsh environments; direct thermal mode eliminates ribbon cost for short-shelf-life labels. Choose mode per application without swapping hardware.
• 203 dpi resolution with upgradeable path to 300/600 dpi: 203 dpi is baseline for barcode density and readability in standard WMS workflows; if you need label text or QR codes below 0.5", upgrade path exists without replacing the printer.
• 10 ips throughput: 254 mm/second translates to roughly 600 labels/hour at 4-inch width — adequate for mid-volume pick-pack operations but not for ultra-high-speed cross-dock lines.
• 4.25-inch maximum print width: Fits standard 4x6 shipping labels and 4-inch warehouse label stock; max 1,000-inch continuous length per print job and 8-inch roll OD capacity.
• Multiple connectivity (USB, Ethernet 10/100 Mbps, Serial RS-232, WiFi-ready slot): Direct USB for single-system integration, Ethernet for networked label servers, WiFi module available separately for mobile scanners or roaming mobile print jobs. No single connectivity bottleneck.
• Thermal Smart Control print technology: Proprietary head-pressure and temperature algorithm minimizes barcode dropout and ribbon waste — relevant if you run long ribbon spans or operate in temperature-variable warehouse conditions.
• 128 MB Flash + 128 MB SDRAM, 32-bit RISC processor: Sufficient for storing complex label templates and fonts (8 internal bitmap fonts plus TrueType engine); handles on-device barcode generation without PC round-trips.
• Internal universal power supply (90W, 24V output): 100–240V AC input eliminates regional power adapters; 24V DC architecture is standard industrial practice for warehouse environments.

Compatibility & Integration

The WPL408 integrates with any WMS or label-design software that outputs Zebra ZPL II, Epson EPL, or Intermec CPCL commands — the industry standard protocols. Ethernet and USB connections support direct integration into warehouse network printers or standalone systems; USB host port allows bar-code scanner input for dynamic label content. Ribbon width range 1.6–4.3 inches accommodates narrow specialty labels or full-width 4-inch stock without recalibration.

Environmental & Operational Context

Operating range is -40°F to 140°F, 10–90% non-condensing humidity — suitable for climate-controlled warehouses but not for unheated shipping docks or outdoor receiving areas. Storage-temperature resilience to -40°F is useful if the printer ships or sits in cold logistics environments before commissioning. Dimensions (9.76" W × 10.79" H × 17.17" D) and weight (20.28 lbs) fit standard benchtop mounting or compact wall brackets in dock stations.
