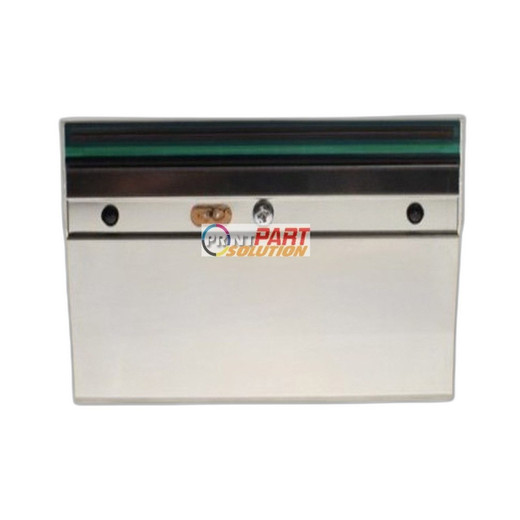

Wasp 633809003172 WPL308 Print Head Module 203 DPI
Overview
The Wasp 633809003172 is a 203 DPI print head module designed as a direct replacement component for Wasp WPL308 thermal printers. This module handles the core printing mechanism — the part that makes contact with media and applies heat to produce barcode, label, and receipt output. Deploy this when your existing print head shows degradation (fading, missed dots, uneven density) or fails outright. It's a field-serviceable replacement that restores print quality without replacing the entire printer.
Compatibility
This print head module fits the Wasp WPL308 printer line exclusively. Verify your printer model matches WPL308 before ordering — print head modules are not interchangeable across different Wasp printer families. The 203 DPI specification means this head is designed for standard-resolution thermal output (typical for warehouse barcode labels, shipping labels, and general-purpose receipt printing). Do not substitute with 300 DPI or 600 DPI variants — they have different dimensions and heating characteristics.
Installation Notes
Print head replacement requires removing the printer's cover, disconnecting the existing head's electrical connector, and sliding out the old module. The new head slides into the same rail assembly. Ensure the printer is powered off and has cooled for 10 minutes before removal — thermal heads retain heat. Align the connector pins carefully to avoid damage. After installation, run a test print to verify consistent density across the full width of the print path. If density is uneven after installation, the platen (rubber roller beneath the head) may be worn and need separate replacement.
