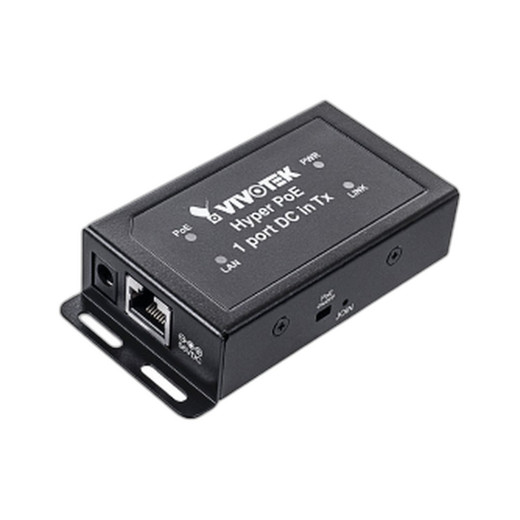

Vivotek AP-FHP-0105-T Hyper PoE Long Range Extender

Vivotek AP-FHP-0105-T Hyper PoE Long Range Extender

The Vivotek AP-FHP-0105-T is a compact Hyper PoE transmitter module engineered to extend power and data delivery across distances that standard Ethernet cannot achieve. As a dedicated Tx (transmitter) module, it serves as the originating point in long-distance PoE infrastructure, enabling deployment of IP security cameras and networked devices in remote or expansive outdoor environments where cable runs exceed conventional limits.

Key Features

• Hyper PoE Transmission: 1x FE RJ45 Hyper PoE port with dedicated power pins (1-4 negative, 5-8 positive)
• High-Power Output: Supports up to 60W power delivery for demanding devices such as PTZ cameras
• Fast Ethernet Connectivity: 1x FE RJ45 output port (10/100 Mbps) with standard PoE pin configuration
• Dual Power Input: Accepts DC 56V or Hyper PoE input for flexible installation options
• Manual Control: Integrated PoE on/off switch for quick power management
• Low Power Consumption: Only 3W draw ensures minimal energy overhead
• Outdoor-Rated Design: Compact form factor (109 x 51.5 x 24 mm) suitable for outdoor mounting
• Certified Safety: CE, FCC, VCCI, and C-Tick certifications for global compliance

Technical Specifications

• Model: AP-FHP-0105-T
• Ports: 1 Hyper PoE input, 1 Ethernet output
• Input Voltage: DC 56V or Hyper PoE
• Power Consumption: 3W
• Weight: 169g
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -20°C to 85°C (-4°F to 185°F)
• Humidity Range: 5% to 95% non-condensing
• Certifications: CE, FCC, VCCI, C-Tick

Applications

Ideal for large-scale surveillance deployments across campuses, parking lots, perimeter fencing, industrial facilities, and other environments requiring extended cable runs. The AP-FHP-0105-T serves as the transmitter stage in Hyper PoE long-range systems, pairing with compatible receiver modules to maintain power and data integrity over distances impossible with standard PoE technology.

Marty Allison

This transmitter module is purpose-built for infrastructure requiring extended reach beyond the 100-meter standard PoE limit. The separate Hyper PoE input and Ethernet output ports enable clear signal path control, while the dual power input (DC 56V or Hyper PoE) provides installation flexibility. The 3W power consumption is negligible, making this an efficient backbone component.

For proper operation, this must be paired with a compatible Hyper PoE receiver module at the remote end. The manual PoE switch adds operational control without requiring network management configuration.
