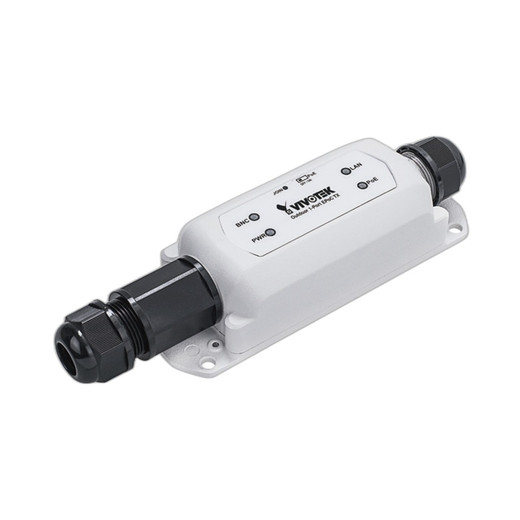

Vivotek AP-FEX-0106-T Outdoor Fiber Extender

Vivotek AP-FEX-0106-T Outdoor Fiber Extender

The Vivotek AP-FEX-0106-T is a high-performance outdoor fiber extender designed to extend network connectivity across challenging terrain and long distances. Purpose-built for IP surveillance and security infrastructure, this transmitter unit leverages fiber optic technology to deliver reliable, long-range data and power transmission without signal degradation. Engineered for harsh outdoor environments, it extends both PoE and Ethernet signals far beyond traditional copper cable limitations, making it ideal for sprawling security deployments across industrial facilities, municipal infrastructure, and large outdoor perimeters.

Key Features

• Extended PoE & Ethernet Reach: Transmits PoE up to 1.2 km and Ethernet data up to 2.4 km over RG6 fiber cable, eliminating the need for intermediate power supplies or signal repeaters
• Compact Outdoor Design: Rugged, weatherproof enclosure measuring 111 x 51.4 x 22 mm with low 3W power consumption, ideal for remote mounting
• Industrial-Grade Surge Protection: BNC port rated for 6KV surge protection, safeguarding equipment against lightning and electrical transients
• Wide Temperature Tolerance: Operates reliably from -30°C to 60°C, with storage capability to -40°C, ensuring year-round performance in extreme climates
• Single-Port Configuration: One EPoC transmitter port with integrated PoE on/off switch for flexible power management
• Standards-Based Compatibility: Supports 802.3at/af PoE standards with seamless integration into existing Vivotek surveillance ecosystems

Technical Specifications

• Transmission Mode: Transmitter (Tx)
• Ports: 1 BNC port (750Ω), 1 Ethernet port
• Maximum PoE Distance: 1.2 km @ 7.5W over RG6
• Maximum Ethernet Distance: 2.4 km over RG6
• Power Consumption: 3W
• Operating Humidity: 5–95% non-condensing
• Certifications: CE, FCC, VCCI
• Weight: 171 g

Ideal Applications

Perfect for extending surveillance coverage across large industrial sites, utility infrastructure, perimeter security systems, and municipal outdoor areas where traditional cabling cannot reliably or economically reach. The AP-FEX-0106-T eliminates the need for intermediate repeaters or additional power infrastructure, reducing deployment complexity and total cost of ownership.
