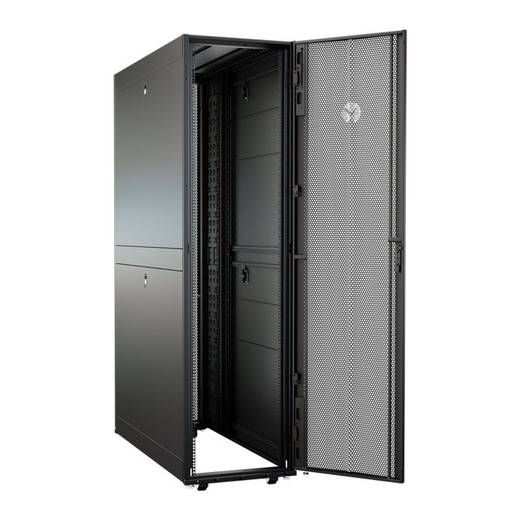

Vertiv VR Rack 48U X 600MM W X 1400MM D - VR3407SP

Vertiv VR3407SP 48U Server Rack — 600mm W x 1400mm D

Overview

The Vertiv VR3407SP is a 48U, 600mm-wide by 1400mm-deep open-frame server rack built for dense IT and network equipment deployments where load capacity and airflow matter. The VR3407SP ships with a single perforated front door and split rear doors — the perforations allow passive airflow through the rack so hot-aisle containment strategies work without additional blanking panel engineering. At 89.2 in tall (including feet and top panel), plan for ceiling clearance before specifying this in low-headroom closets or raised-floor environments. This is a standard 19-inch EIA-310E-compliant enclosure, which means any rackmount gear — servers, patch panels, UPS units, KVM switches — mounts without adapter rails.

Compatibility

The VR3407SP is compatible with standard 19-inch rackmount equipment per EIA 310E, covering the full Vertiv rack and power infrastructure product line including Liebert UPS units, PDUs, and thermal management equipment. The 1400mm depth accommodates deep 1U and 2U servers (Dell PowerEdge, HPE ProLiant, Supermicro) without rail extension kits — most enterprise server rails top out at 900–1000mm, leaving clearance for rear cable management. The 600mm width is the narrowest standard footprint; verify that any side-mounted cable trays or accessories spec'd for 800mm enclosures are not assumed here. Pair with a rack PDU and a blanking panel kit to maintain airflow integrity across open rack units.

Installation Notes

Static load capacity is 3000 lbs (1360 kg) — sufficient for a fully populated 48U rack of enterprise servers, storage arrays, and networking gear. Dynamic load rating drops to 2250 lbs (1022 kg), which governs seismic zone installations and environments where the rack may be moved under load; confirm local building codes if data center seismic compliance is required. The powder-coated steel frame meets UL2416 (IT equipment rack standard), RoHS, and REACH. Leveling feet are expected on a unit this size — verify that floor loading and anchor bolt provisions are in place before final positioning. The split rear door configuration allows cable egress from either side without removing the full rear panel, which simplifies post-installation adds in tight rows. For airflow-sensitive deployments, consult rack cooling options to complement the perforated door design.
