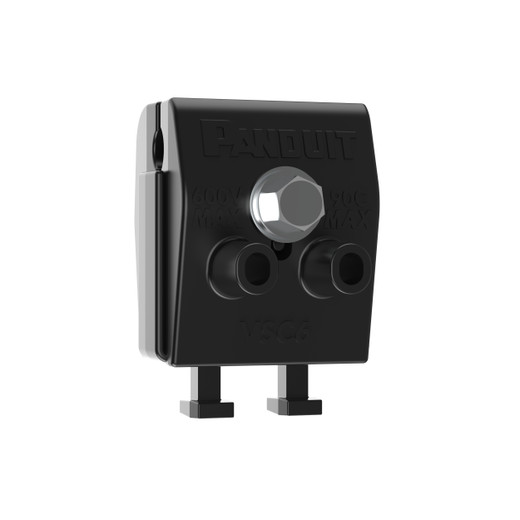

Panduit VS-CKP14-6 VeriSafe AVT Insulation Piercing Connection Kit
Overview
The Panduit VS-CKP14-6 is a purpose-built insulation piercing connection kit for the VeriSafe Absence of Voltage Tester (AVT) system, designed to give electricians and maintenance engineers a fast, repeatable method for tapping sensor lines onto live conductors ranging from 14 to 6 AWG — without stripping wire or compromising insulation integrity. If you've worked with absence-of-voltage verification on industrial panels, you know the pain of improvised tap connections: nicked insulation, loose terminations, and no strain relief. The VS-CKP14-6 addresses all three in a single compact package rated to 600V AC or DC.
This kit is part of the Panduit VeriSafe safety product line and is specifically matched for use with VAT VeriSafe sensors. Each kit ships with three connectors plus termination hardware sufficient to complete one full AVT installation — meaning you have exactly what you need on hand without hunting for supplemental hardware.
Key Features
- Dual-tap single housing: The compact connector body accommodates up to two taps within one enclosure, so both conductor connections are fully insulated and physically isolated in the same footprint. That matters in tight panel environments where available space around a conductor is measured in millimeters.
- Patent-pending insulation-piercing design: The connector taps the conductor without stripping or nicking the insulation, preserving conductor integrity for the long term. On safety-critical circuits this isn't a convenience — it's the correct installation method, eliminating the failure mode introduced by exposed-copper taps.
- Integrated strain relief: Built-in strain relief is part of the connector body, not an add-on step. Under vibration or incidental cable movement, the sensor line connection stays mechanically stable — important in motor control centers and equipment with high-cycle machinery nearby.
- 600V AC/DC rating: Rated for circuits up to 600V AC or DC, covering the vast majority of industrial distribution voltages where AVT sensors are deployed — 480V 3-phase panels, 600V Canadian code installations, and 480V DC bus applications.
- 14–6 AWG conductor range: The AWG range covers the typical feed conductor sizes found at panel branch circuits and feeder taps — from 14 AWG lighting/small-motor branch circuits up through 6 AWG feeder conductors. If your target conductors fall outside this range, Panduit offers additional VS-series connector kits sized accordingly.
- cULus listed — UL 486A/486B and CSA C22.2 No. 65-13: Compliance with both UL 486A-486B (wire connectors) and CSA C22.2 No. 65-13 means the VS-CKP14-6 meets the standards required for electrical inspections in both US and Canadian jurisdictions. On jobs subject to AHJ review, that listing eliminates a common objection point.
- Complete single-AVT installation kit: Each package contains three connectors and all necessary termination hardware for one VAT installation. Stocking one kit per planned AVT point simplifies job-site kitting and reduces the chance of a partial installation due to missing hardware.
Integration & Compatibility
The VS-CKP14-6 is designed exclusively for use with Panduit VeriSafe AVT sensor lines. It is not a general-purpose insulation piercing connector — the geometry and electrical ratings are matched to the VeriSafe system's sensor tap requirements. Before ordering, confirm the target conductor is within the 14–6 AWG range; conductors outside this range require a different kit from the VS-series.
For teams building out electrical safety verification infrastructure across multiple panels, the VS-CKP14-6 pairs with the full VeriSafe AVT ecosystem including the tester itself and any panel-mounted indicator hardware. All connections are made without energizing or de-energizing the circuit, consistent with the AVT's zero-energy-state verification workflow.
Standards compliance (UL 486A-UL 486B, CSA C22.2 No. 65-13, cULus) positions this connector for use in NEC and CEC governed installations without additional field engineering review in most cases — confirm with your AHJ on jurisdiction-specific requirements. For projects requiring full VeriSafe system components, this kit is the correct sensor tap hardware for the noted conductor range.
What's in the Box
- 3x VS-CKP14-6 insulation piercing connectors
- Termination hardware for 1 complete VAT installation
Frequently Asked Questions
Q: What conductor sizes does the VS-CKP14-6 support?
A: The VS-CKP14-6 accommodates conductors from 14 AWG to 6 AWG. If your conductors fall outside this range, you will need a different connector kit from the Panduit VS-series lineup.
Q: What is the maximum voltage rating for the VS-CKP14-6?
A: The VS-CKP14-6 is rated for use on circuits up to 600V AC or DC, covering most industrial distribution voltages including 480V 3-phase panels and 600V Canadian-code installations.
Q: Does the VS-CKP14-6 require stripping the conductor insulation?
A: No. The insulation-piercing design taps the conductor without stripping or cutting the insulation, preserving conductor integrity and eliminating exposed-copper failure modes at the tap point.
Q: What certifications does the VS-CKP14-6 carry?
A: The VS-CKP14-6 is cULus listed and meets UL 486A-UL 486B and CSA C22.2 No. 65-13, qualifying it for electrical inspection in both US and Canadian jurisdictions under NEC and CEC governed installations.
Q: How many AVT installations does one VS-CKP14-6 kit support?
A: Each kit includes three connectors and complete termination hardware sufficient for one full VeriSafe AVT installation.
Q: Is the VS-CKP14-6 compatible with systems other than VeriSafe?
A: No — the VS-CKP14-6 is designed specifically for use with the Panduit VeriSafe Absence of Voltage Tester (VAT) sensor lines. It is not a general-purpose insulation piercing connector.
The VS-CKP14-6 is a connector kit I'd want pre-kitted on any VeriSafe AVT deployment where you're working across varied feeder sizes. The 14–6 AWG range and 600V AC/DC rating cover the lion's share of industrial panel work without needing to mix connector kits mid-installation, and the patent-pending insulation-piercing approach means you're not introducing a new insulation breach every time you add a sensor tap.
Technical Highlights:
- Dual-tap single enclosure: Accommodating two taps in one housing keeps the connector footprint tight — a real advantage when working inside a loaded panel where clearance around the conductor is limited and you cannot afford bulk.
- 600V AC/DC rating: Covers standard 480V 3-phase US distribution and 600V CEC installations — you won't need a different connector variant for cross-border projects within this voltage range.
- cULus / CSA C22.2 No. 65-13 listing: Both the US and Canadian safety standards are covered in a single part number, which simplifies procurement on projects where panels span both code jurisdictions.
Deployment Considerations:
- Stock one kit per planned AVT sensor point — the three-connector kit maps to exactly one VAT installation, so job-site kitting is straightforward: count your sensor locations, order that many VS-CKP14-6 kits.
- The connector is rated to 6 AWG minimum on the large end — if your feeder conductors are 4 AWG or larger, verify the applicable Panduit VS-series kit before ordering; the VS-CKP14-6 will not accommodate those sizes.
For motor control center retrofits and industrial panel safety upgrades requiring VeriSafe AVT integration across multiple 480V branch circuits, the VS-CKP14-6 (often searched as VS CKP14 6) is the right tap hardware to specify — it eliminates field improvisation at the sensor connection point and keeps the installation cULus-compliant from the connector up.
