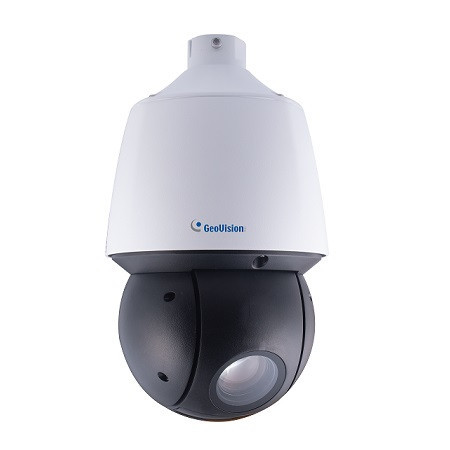

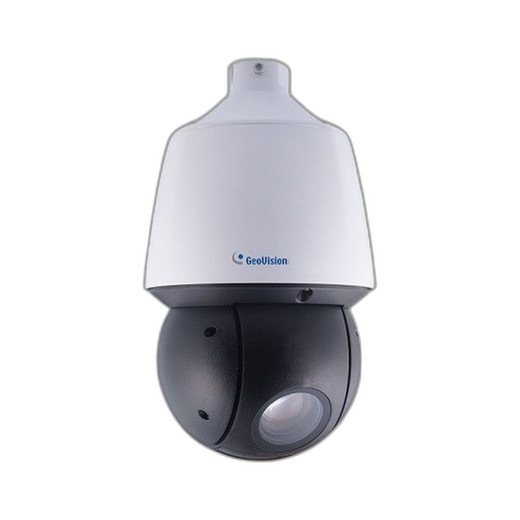

Geovision 84-SD4825W-IR00 4MP Speed Dome Camera

Geovision 84-SD4825W-IR00 4MP Speed Dome Camera

Overview

The Geovision 84-SD4825W-IR00 is a 4MP speed dome camera designed for outdoor surveillance where active monitoring, zoom capability, and round-the-clock imaging matter. Built as a compact dome, it combines H.265 compression, WDR (Wide Dynamic Range) for mixed-lighting scenes, and IR night vision to eliminate the need for supplemental lighting in complete darkness. The speed dome form factor—combined with 25x optical zoom—enables tracking and detail capture across distributed scenes: parking facilities, perimeter security, retail loss prevention, and facility grounds. H.265 encoding cuts bandwidth and storage load roughly in half versus H.264, a meaningful reduction when deploying multiple cameras or working within constrained network budgets. PoE power delivery simplifies installation by eliminating separate power supplies and proprietary cabling.

Compatibility

The 84-SD4825W-IR00 integrates with standard enterprise surveillance infrastructure: ONVIF-compliant video management systems (VMS), Geovision GV-Control Center, and third-party NVR platforms supporting ONVIF Profile S streaming. PoE injection via standard 802.3at (PoE+) switches supplies power without additional wiring. Ethernet network connectivity uses standard RJ-45 cabling and operates on typical corporate or industrial IP networks without proprietary gateways. Ceiling or wall-mount configurations fit standard bracket and conduit installations.

Installation Notes

Mount the dome using supplied hardware on ceiling or wall surfaces rated for the camera's weight and vibration load. Ensure PoE+ switch capacity: the unit draws sufficient power for sustained operation and zoom activity. Position the camera to avoid direct, prolonged sunlight into the lens—glare compromises IR performance and WDR effectiveness. Verify network switch supports ONVIF streaming and video codec negotiation (H.265 primary; H.264 fallback). For outdoor exposed installations, confirm IP66 rating meets your environmental specification and verify cable gland sealing at entry points.

What's in the Box

• 1x Geovision 84-SD4825W-IR00 speed dome camera
• 1x mounting bracket
• 1x power cable (PoE)
• 1x RJ-45 network cable connector
