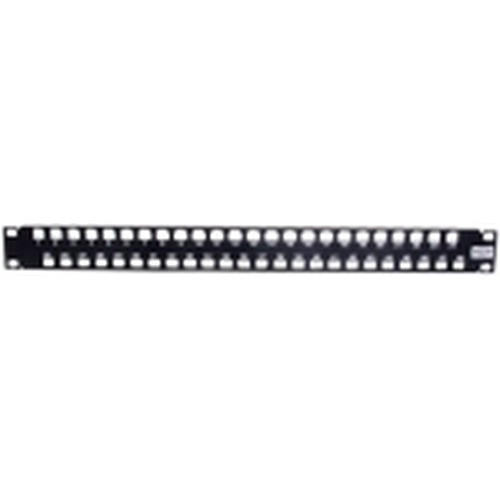

Hubbell UDX48E1U High-Density Unloaded Jack Panel

Overview

The Hubbell UDX48E1U is a 1U, high-density, unloaded jack panel designed to terminate up to 48 network jacks. This panel provides a clean and organized termination point for structured cabling systems, essential for managing complex network infrastructure in enterprise environments, data centers, or telecommunications closets. Its 1U form factor maximizes rack space efficiency, allowing for a significant number of connections within a minimal vertical footprint. The UDX48E1U facilitates the creation of custom patch panel configurations by allowing you to select and install the specific keystone jacks required for your network's needs.

Compatibility

This unloaded panel is designed to accept a wide range of Hubbell category 5e, category 6, and category 6A keystone jacks. It is compatible with standard 19-inch rack systems. For specific jack compatibility, consult the Hubbell cabling solutions catalog.

Installation Notes

Installation requires standard rack mounting hardware (not included). Keystone jacks are inserted from the front and secured via a retention mechanism. Ensure adequate clearance for cable management on both the front and rear of the rack. Proper cable strain relief should be utilized on the rear of the installed keystone jacks to maintain connection integrity.
