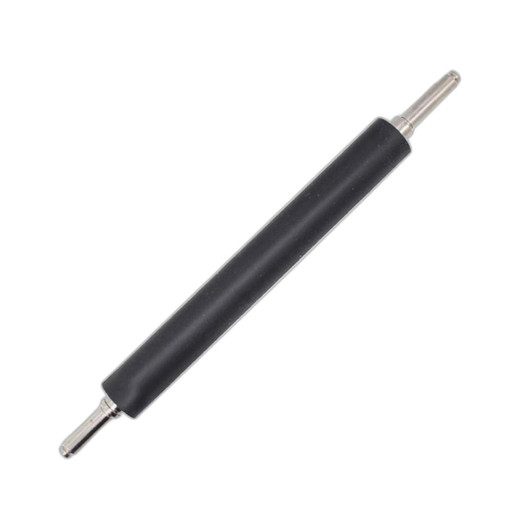

TSC 98-0470101-00LF Platen Roller for Peel-Off Kit

TSC 98-0470101-00LF Platen Roller for Peel-Off Kit

Overview

The TSC 98-0470101-00LF is a replacement platen roller assembly designed for label printing systems equipped with peel-off functionality. This component is a critical wear item in thermal transfer and direct thermal label printers that utilize automatic label separation and collection mechanisms. The platen roller works in conjunction with the peel-off kit to support media advancement and ensure consistent label separation during high-volume production runs.

As a dedicated replacement part, the 98-0470101-00LF maintains print quality and operational reliability in TSC printer systems. Platen rollers are subject to regular wear from continuous media contact, ribbon abrasion, and peel-off stress; replacement at recommended intervals prevents degraded print alignment, media jams, and premature damage to other printer components.

Key Features

• Peel-Off System Compatibility: Engineered for seamless integration with TSC peel-off kits; supports automatic label separation without manual intervention
• Thermal Transfer & Direct Thermal: Compatible with both print methods, accommodating diverse label material requirements
• Label Media Support: Optimized for label stock handling; maintains consistent media path during advancement and peeling cycles
• Wear-Resistant Construction: Designed to withstand extended contact with adhesive labels, thermal ribbons, and peel-off mechanisms
• Print Quality Preservation: Proper platen roller function ensures accurate label registration and prevents smudging or misalignment
• Straightforward Installation: Designed as a drop-in replacement for existing TSC printer configurations; no firmware updates or recalibration required
• Cost-Effective Maintenance: Extends printer service life by addressing a common wear component; reduces unscheduled downtime
• OEM Part Quality: Genuine TSC component manufactured to original specifications for reliability

Integration & Compatibility

The 98-0470101-00LF platen roller is compatible with TSC label printer models that support peel-off label separation kits. This component is wired (integrated into the printer's mechanical system) and functions with both thermal transfer and direct thermal print methods. The roller supports continuous label media processing and integrates with the printer's LCD display-controlled settings for media type and print parameters.

Replacement is recommended when visual wear, reduced peel-off consistency, or media handling irregularities occur. Regular maintenance intervals depend on label volume and media type; high-volume installations using adhesive labels or specialty media may require more frequent replacement than low-volume operations.

Operational Recommendations

Maintain proper printer firmware and mechanical calibration when installing replacement platen rollers. Verify media path clearance and peel-off mechanism alignment before resuming production. Stock replacement rollers as part of preventive maintenance supplies to minimize unexpected downtime during label production cycles.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During printer deployment planning and ongoing maintenance workflows, the TSC 98-0470101-00LF platen roller is a critical consumable component. In facilities running continuous label production with peel-off automation, I recommend maintaining at least one spare roller on-site to prevent unscheduled downtime during wear-related failures.

Technical Highlights:

• Peel-Off Integration: The roller functions as the media support surface during automated label separation; proper condition is essential for consistent peel-off performance and label integrity
• Multi-Method Compatibility: Works with both thermal transfer and direct thermal print workflows, providing flexibility across label types and applications
• Wear Component Management: As a consumable subject to regular contact with adhesive media and mechanical stress, the platen roller should be inspected periodically and replaced proactively

Deployment Considerations:

• High-volume label operations (10,000+ labels per day) typically require platen roller replacement every 3–6 months; adjust intervals based on media type and adhesive formulation
• Verify peel-off mechanism alignment and media path during replacement to prevent subsequent alignment issues
• Keep the printer's firmware and calibration settings current when replacing mechanical components to ensure optimal interaction between the platen roller and peel-off system

For integrators and facility managers, treating the 98-0470101-00LF as a scheduled maintenance item rather than a reactive replacement significantly improves label production reliability and extends overall printer lifespan.
