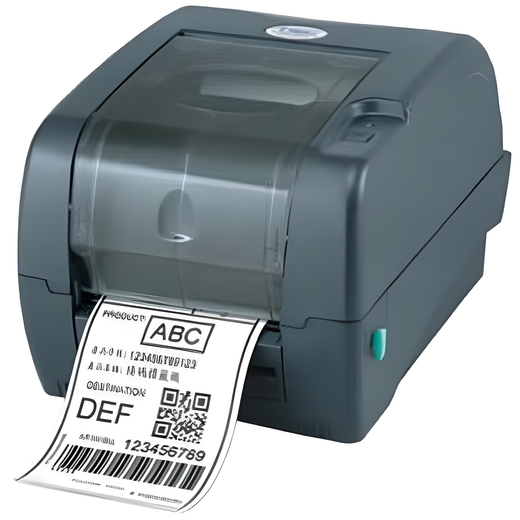

TSC 32-0500005-00LF GAP/Black Mark Sensor Fixing Plate

TSC 32-0500005-00LF Gap/Black Mark Sensor Fixing Plate

Overview

The TSC 32-0500005-00LF is a sensor fixing plate designed for thermal label and receipt printers requiring reliable media detection and positioning. This component supports both gap and black mark sensing modes, enabling flexible label format compatibility across variable-length applications. The fixing plate is engineered to mount securely within the printer frame and maintain consistent sensor alignment throughout extended production runs.

Key Features

• Dual-Mode Sensing: Supports both gap detection (for labels with physical gaps between them) and black mark detection (for continuous media with printed markers), allowing single-printer compatibility across diverse label formats
• Precision Alignment: Fixed mounting ensures stable sensor positioning and eliminates drift during high-volume printing operations
• Robust Construction: Engineered for thermal printer environments with materials selected for durability and thermal stability
• Easy Installation: Designed for straightforward mounting within standard thermal printer chassis configurations
• Media Compatibility: Enables accurate detection of labels ranging from 1-inch to 9-inch widths across standard and custom formats
• Integration Ready: Compatible with touchscreen-enabled TSC printer models, integrating seamlessly with printer firmware for automated media detection settings

Integration & Compatibility

The 32-0500005-00LF fixing plate is designed for integration with TSC thermal printers equipped with touchscreen displays. This component works in conjunction with the printer's firmware to enable automatic media sensing configuration, reducing setup time and operator error during label format changes. The plate supports integration with standard printer management systems and does not require additional drivers or software modifications beyond standard printer configuration menus.

Operational Considerations

When deploying the 32-0500005-00LF, ensure the sensor lens area remains clean and free from label dust or adhesive residue, which can degrade detection accuracy. For applications alternating between gap and black mark media, configure the printer's media detection mode through the touchscreen interface to match your label format. The fixing plate should be installed by qualified service personnel familiar with thermal printer mechanics to ensure proper alignment and functionality.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

From a deployment perspective, the TSC 32-0500005-00LF fixing plate addresses a critical challenge in multi-format printing environments: reliable media detection across variable label types. In my experience with thermal printing installations, sensor misalignment or drift is a common source of runtime failures and reprints. This component's fixed-mount design eliminates those variables.

Technical Highlights:

• Dual Gap/Black Mark Capability: The 32-0500005-00LF supports both sensing modes within a single installation, reducing inventory complexity for operations running mixed label formats without firmware-level workarounds
• Touchscreen Integration: Compatibility with TSC touchscreen printers means operators can switch media detection modes directly from the printer interface, simplifying changeovers and reducing configuration errors

Deployment Considerations:

• Schedule sensor maintenance into your preventive care program—label dust accumulation on the lens will degrade detection reliability within 4-6 weeks of continuous operation in high-volume environments
• During installation, verify sensor alignment using the printer's diagnostic menu before returning equipment to production; misaligned sensors will cause intermittent detection failures that are difficult to troubleshoot after deployment

For integrators supporting multi-site label operations, having spare 32-0500005-00LF plates on hand is practical insurance. Sensor mounting is a field-replaceable component that can be swapped within 15 minutes, minimizing downtime if drift occurs in production.
