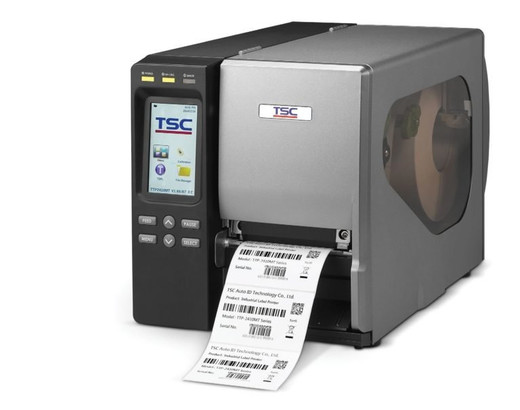

TSC 32-0240006-21LF Interface Plate
The TSC 32-0240006-21LF is an interface plate assembly designed for TSC TTP2410M thermal printers. This component integrates a touchscreen display interface, enabling direct operator control and configuration of printer functions. The interface plate serves as a critical hardware component for integrators and warehouse operators requiring reliable printer management and media handling oversight.
Overview
The 32-0240006-21LF interface plate is engineered as a replacement or upgrade component for TSC TTP2410M series industrial thermal transfer printers. The touchscreen display provides real-time printer status monitoring, job queue management, and configuration access without requiring external host systems. This interface plate is commonly sourced by system integrators who deploy TSC thermal printers in warehouse label printing, logistics automation, and industrial labeling environments.
Key Features
- Touchscreen Display: Integrated touchscreen interface for intuitive operator control and printer configuration
- Direct Printer Integration: OEM-designed component ensuring full compatibility with TTP2410M printer systems
- Real-Time Status: Live printer status, alert notification, and media handling status visibility
- Configuration Access: Direct menu-driven access to print speed, darkness adjustment, and label calibration settings
- Replacement Component: Purpose-built to replace or upgrade existing interface modules in deployed TTP2410M units
- Industrial-Grade Construction: Rated for warehouse and logistics environments with standard mounting compatibility
Integration & Compatibility
The 32-0240006-21LF (often searched as 32 0240006 21LF) is validated for use with TSC TTP2410M thermal printers. Integration is direct via OEM harness connections—no adapters or firmware modifications required. The touchscreen interface communicates with the printer's main controller to deliver display updates and relay operator inputs. Organizations with existing TTP2410M deployments can retrofit this interface plate without affecting printer operation or print quality. For multi-unit warehouse environments, standardizing on this interface plate simplifies operator training and reduces support complexity across sites.
Technical Specifications
The interface plate features a responsive touchscreen display designed for high-traffic warehouse environments. The component is mounted internally within the TTP2410M housing and does not alter the printer's footprint or media capacity. Electrical integration is via proprietary TSC connector architecture. Power is drawn from the main printer power supply. The interface plate operates across the same ambient temperature and humidity ranges as the parent TTP2410M printer unit, ensuring reliable performance in typical warehouse conditions (0–45°C operating temperature).
The touchscreen supports the full command set of the TTP2410M printer, including media calibration, darkness adjustment, print speed modification, and alert management. Operators can navigate the display menu system using standard touch gestures. The interface plate logs basic operational metrics including print count, media depletion events, and error conditions for audit and troubleshooting purposes.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the TSC 32-0240006-21LF as a direct replacement for aging or damaged interface modules on established TTP2410M installations. The touchscreen display significantly improves operator experience compared to legacy button-based control panels, reducing configuration errors and training overhead.
Technical Highlights:
- Touchscreen Responsiveness: The display delivers crisp visual feedback and responsive touch input, essential in fast-paced warehouse picking and shipping operations
- Direct OEM Integration: Being an official TSC component, the 32-0240006-21LF requires no firmware updates or controller reconfiguration—install and operate immediately
- Printer Status Transparency: Real-time visibility into media levels, temperature status, and error conditions reduces unplanned downtime
Deployment Considerations:
- Verify existing TTP2410M firmware compatibility before retrofit; most units from 2015 onward support this interface natively
- Plan installation during scheduled maintenance windows to avoid disrupting active label production
- Operators familiar with legacy TSC control panels will require minimal training due to intuitive touch-based menu layout
For warehouse managers consolidating on TSC thermal printing infrastructure, standardizing on the 32-0240006-21LF interface plate across all TTP2410M units simplifies spare parts inventory and accelerates mean-time-to-repair when modules fail. This is a sound tactical investment for organizations with 10+ deployed TTP2410M printers.
