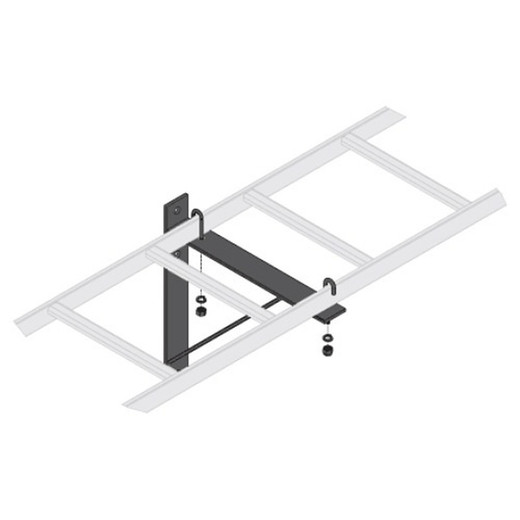

Middle Atlantic CLB-TSB-W18 Triangle Wall Support Bracket

Overview

The Middle Atlantic CLB-TSB-W18 is an 18-inch wide, triangle wall support bracket designed to provide a stable mounting point for AV equipment and network infrastructure. Its robust construction handles significant load bearing, making it suitable for installations where equipment needs secure wall mounting, such as in network closets, behind displays, or within structured wiring systems. This bracket ensures your equipment remains stable and accessible.

Compatibility

This support bracket is designed for use with Middle Atlantic's CLB series cable ladder systems. It provides a specific mounting interface for the 18-inch wide variants of the CLB cable ladder, ensuring a precise fit and secure connection. Confirm compatibility with your specific CLB ladder model before installation.

Installation Notes

The CLB-TSB-W18 features a 2-inch width and a depth of 20.25 inches, with a height of 20.5 inches. It requires adequate wall space for mounting and should be secured into wall studs or appropriate structural supports to handle the intended load. Ensure all mounting hardware is rated for the combined weight of the bracket and the equipment it will support. The bracket is designed for direct attachment to the CLB cable ladder, typically using provided hardware.
