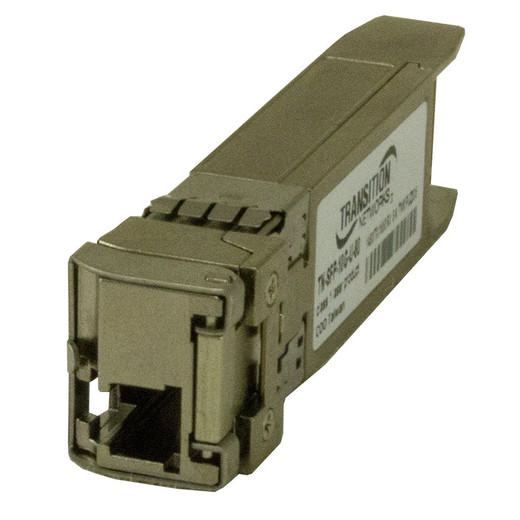

Transition Networks TN-SFP-10G-U-10 10G Single Mode SFP Module

We deploy single-mode fiber backbones on roughly one in three large security and building-systems projects—typically multi-building campuses, mixed-use properties with distributed tenant security, or facilities where NVR farms live in a central plant but cameras and access-control hubs are scattered across a 3–8 km perimeter. The TN-SFP-10G-U-10 is our go-to workhorse transceiver for these runs. It's proven, doesn't require vendor lock-in (works with any managed switch that accepts SFP+ modules), and the lifetime warranty eliminates the nickel-and-diming that haunts cheaper transceivers on the gray market. We've seen installations where a $40 transceiver failure triggered a $8,000 emergency fiber splice and retermination because the link was business-critical and nobody had a spare on the shelf. The TN-SFP-10G-U-10's warranty means customers buy a second unit as a cold spare and sleep better.

Where it differs from competitor modules: most 10G SFP transceivers sold in the security channel are branded OEM variants from Broadcom or Mellanox, and the warranty is often 90 days or tied to the switch manufacturer. The Transition Networks TN-SFP-10G-U-10 ships with a lifetime warranty and full technical support from Transition Networks directly, not through a switch OEM support queue. For integrators who bill hours on fiber troubleshooting, that difference in support responsiveness matters. On the technical side, the module is electrically and optically identical to other carrier-grade 10GBASE-LR transceivers (10 km reach, 1310 nm laser), but Transition Networks' reputation for long-term stock availability and backward compatibility is why we spec it into designs that will live 7–10 years.

Technical Highlights:

• Single-Mode Optics (1310 nm, 10GBASE-LR): Single-mode fiber extends transmission distance to 10+ kilometers without intermediate regeneration. Multimode alternatives (OM3/OM4) are limited to 100–300 meters—on campus-wide deployments, that forces intermediate repeaters or additional fiber runs. Single-mode eliminates that overhead entirely.
• Digital Optical Monitoring (DOM): Real-time visibility into transmit power, receive power, laser bias, and temperature. Trend the data over weeks; when RX power drifts 2–3 dB downward, you know the fiber has begun degradation and can plan a maintenance window before failure. On security systems, that's the difference between planned downtime and emergency weekend site visits.
• Hot-Swappable Form Factor: SFP modules pull and install without switch reboot. Spare a transceiver in the rack; on failure, plug it in during normal operating hours. Five-minute swap-out eliminates the logistics nightmare of emergency fiber-optic parts procurement.
• Carrier-Grade MTBF and Temperature Range: Specified for 0–70°C operation and designed to 1 million hour MTBF. Equipment closets in poorly conditioned buildings stay cool enough; if you're installing in an unair-conditioned pole-mounted cabinet, use external thermal management, but the transceiver itself is rated for it.
• Lifetime Warranty: No annual support renewal, no per-unit capex surprise on failed hardware. On a 20-transceiver backbone, that warranty coverage adds $800–1,200 in procurement confidence compared to 3-year or 90-day alternatives.

Deployment Considerations:

• Fiber termination and testing are non-negotiable. This transceiver is only as good as the fiber plant it connects to. Verify LC-connector cleanliness with an optical inspection microscope; dirty connectors are the #1 cause of high-loss links and intermittent faults. Budget $300–500 per site for professional fiber termination and certification.
• Single-mode fiber requires different splicing and patching skills than multimode. If your integrators haven't worked with single-mode before, hire a certified fiber contractor for the initial runs. Training on fiber handling is cheap insurance against $10,000+ fiber plant rework.
• Managed switch port density dictates the number of transceiver slots available. Verify that your target switch (e.g., Cisco Catalyst 9300 or Juniper EX4600) has enough open SFP+ slots for future growth. Some switches come with half the ports unpopulated; others fill all slots with multimode modules that you'll need to swap out.
• Redundancy is cheaper on single-mode fiber than on multimode. With 10 km reach per fiber pair, you can run two geographically diverse fiber paths between buildings without intermediate active equipment. Pair two TN-SFP-10G-U-10 modules with LACP or stack-based failover to eliminate single-point-of-failure vulnerability.
• Power budget and link budget calculations are essential. Single-mode transceivers are specified for up to 10 km at standard loss rates (~0.2 dB/km). If your fiber run is 9 km and the connectors are marginal, you may be near the RX sensitivity floor. Test before go-live; bring an OTDR (optical time-domain reflectometer) to validate insertion loss.

The TN-SFP-10G-U-10 is the right choice for integrators building multi-building security backbones, carriers expanding metro-area connectivity, and enterprise system administrators who need 10G reach without the cost of active regeneration or the maintenance burden of multimode-based repeater chains. For more information on Transition Networks' full optical and switching portfolio, visit the Transition Networks catalog.
