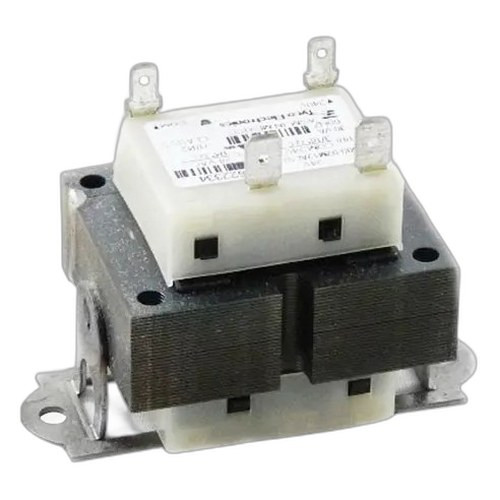

Nortek Transformer 115/24. Smart Gdo Ldco 850/852 - 10012046

Nortek 10012046 Transformer 115/24 Smart GDO LDCO

Overview

The Nortek 10012046 is a 115V to 24V step-down transformer purpose-built for smart gate/door operator (GDO) and low-voltage door control (LDCO) installations, specifically supporting Nortek's 850 and 852 control modules. This transformer addresses a fundamental power infrastructure requirement: stepping down building mains voltage to the low-voltage DC supply needed by gate operators, electronic strikes, and door-control accessories without requiring separate power conversion modules at each endpoint.

If you're running a distributed access control system across multiple gate or door locations, the 10012046 eliminates the need to provision individual wall-mounted power supplies at each remote location — instead, you run 115V mains to a central point, convert once, and distribute 24V over controlled distances to your GDO/LDCO modules. This reduces wiring complexity and centralizes power management where your main control panel sits.

Power delivery specifications

115V primary input to 24V secondary output: The transformer steps down standard North American building voltage (115V AC) to 24V, the standard low-voltage supply for gate operators and electronic door hardware. This conversion happens passively — no active regulation — so output voltage remains stable across typical load variations in residential and light commercial gate/door installations.

Integration with Nortek 850/852 modules: The 10012046 is specified as a companion to Nortek's 850 and 852 smart GDO/LDCO control boards. These modules expect a clean 24V supply; the transformer provides that without requiring additional filtering or regulation. If your 850/852 system was originally designed around this transformer, substituting an off-spec power supply can introduce noise or instability — keep this pairing in mind.

Centralized vs. distributed power: Deploying a single transformer at your main control hub versus individual supplies at each gate/door location trades off upfront equipment cost against installation labor and cable runs. For systems with 2–4 gates within 100–150 feet of your control panel, a single power supply transformer often simplifies troubleshooting and maintenance.

Protection and redundancy

The 10012046 is a passive transformer — no active protection circuitry (no over-current relay, no thermal cutoff). This means it does not self-recover from faults; if a short circuit occurs on the 24V secondary, the transformer will draw maximum current until the upstream breaker or fuse trips. Ensure your electrical panel feeding the 115V primary includes appropriately sized circuit protection — typically a 15A breaker for residential gate installations — to prevent damage to the transformer's windings.

No built-in redundancy is available at the transformer level. If power loss to this single device is unacceptable (e.g., a critical commercial gate), you must architect redundancy upstream: dual mains feeds with an automatic transfer switch, or a secondary backup battery supply for the 24V bus. Check your site's electrical code and gate operator manufacturer guidelines for required failsafe behavior.

Environmental and mounting

The 10012046 is intended for indoor or protected installation — it is not rated for direct outdoor weathering. Mount it in an electrical cabinet, utility closet, or weatherproof enclosure near your Nortek control panel. Ensure adequate ventilation around the transformer to prevent heat buildup during continuous operation; do not stack it directly against other equipment or insulation.

Transformer noise (the characteristic 50/60 Hz hum) is minimal in a properly installed unit, but vibration isolation may be desirable if the transformer is mounted on thin shelving or near occupied spaces. Use rubber isolators or a small vibration-dampening mat to reduce audible hum transmission to surrounding structures.

What's in the Box

No package contents were specified in the available documentation for this model.

Frequently Asked Questions

Q: Can the Nortek 10012046 be used outside or in a wet environment?

A: No. The 10012046 is not rated for outdoor or wet installation. Mount it indoors in a utility closet, electrical cabinet, or protected enclosure. If outdoor power conversion is required, use a weatherproof 115V-to-24V supply rated for your climate zone.

Q: Does the 10012046 include circuit protection or a breaker?

A: No. The 10012046 is a passive transformer with no built-in over-current protection. You must provide circuit protection on the 115V primary side via your electrical panel (typically a 15A breaker). Short circuits on the secondary will draw maximum current until upstream protection trips.

Q: What is the maximum cable run distance from the 10012046 to my Nortek 850/852 module?

A: Distance depends on wire gauge and total load (gate operator current draw). As a guideline, 14 AWG wire carries 24V safely to 100–150 feet before voltage drop becomes significant. For longer runs or heavy loads, use heavier gauge (12 AWG or thicker) or provision a secondary supply closer to the remote gate. Consult the Nortek 850/852 documentation for minimum input voltage tolerances.

Q: Is the 10012046 a continuous-duty transformer or intermittent?

A: The 10012046 is rated for continuous operation. It can supply 24V indefinitely to gate operators and electronic locks that draw current throughout the day and night. No thermal reset or cool-down period is required between operations.

Q: Will the 10012046 work with gate operators other than Nortek 850/852 modules?

A: The 10012046 is specifically designed as a companion to Nortek's 850 and 852 control boards. While any 24V device will technically accept 24V input, using this transformer with non-Nortek gate operators may void warranties or introduce compatibility issues. Verify with your equipment manufacturer before cross-deployment.

Eden Phillips

The Nortek 10012046 is a straightforward but critical component if you're building out a multi-gate or multi-door access system around Nortek's 850/852 control modules. The 115V-to-24V step-down is passive — no active regulation, no digital control — which means you get stable, predictable power conversion without the complexity of a switch-mode supply. The trade-off is that you rely entirely on upstream circuit protection to defend the transformer from shorts and overload.

Technical Highlights:

• 115V primary to 24V secondary conversion: Passive transformer design delivers a constant, stable 24V output suitable for Nortek 850/852 control boards and gate operator solenoids. No active regulation means fewer points of failure, but also no automatic recovery from faults — upstream breaker protection is non-negotiable.
• Continuous-duty rating: The 10012046 operates indefinitely without thermal shutdown or cool-down cycles, making it suitable for 24/7 gate and door control systems that see frequent lock/unlock cycles.
• Centralized power distribution: A single transformer at your main control panel eliminates the need for individual wall-mounted supplies at each remote gate, reducing installation cost and simplifying troubleshooting when power issues arise.

Deployment Considerations:

• The 10012046 has zero built-in fault tolerance. Install it behind a properly rated 15A breaker on the 115V primary — a short on the secondary side will draw unlimited current until the breaker trips. If you skip or under-size that breaker, you risk transformer damage.
• Cable voltage drop over distance is real. For runs beyond 150 feet from the transformer to a remote 850/852 module, calculate expected drop based on your wire gauge and load. Undersized wire plus a weak 24V supply can cause gate operator hesitation or incomplete lock engagement.

Deploy the 10012046 in tight integration with your electrical panel and Nortek control cluster — it's the backbone of reliable centralized power for multi-site gate and door operations where you cannot afford intermittent power to a lock or operator.
