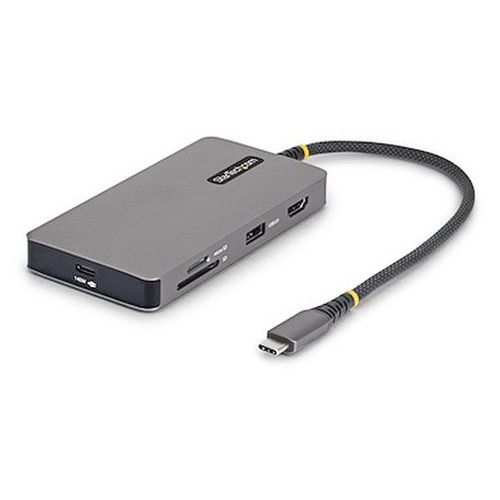

StarTech 305B-USBC-MULTIPORT USB-C Multiport Adapter with 4K 60Hz HDMI, USB-C PD, and USB-A

Overview

The StarTech 305B-USBC-MULTIPORT converts a single USB-C port into a full working desk station — delivering 4K 60Hz HDMI output, 140W USB-C Power Delivery passthrough, a 10Gbps USB-A data port, and Gigabit Ethernet from an 8-inch attached cable. Built from aluminum in a space gray finish at just 4.5 x 2.3 x 0.6 inches and 0.3 lb, this adapter is sized for a laptop bag but built for an 8-hour workday at a monitor-connected desk. The USB 3.2 Gen 2 host interface runs at 10Gbps — enough headroom to push 4K video, charge a laptop, transfer files, and stay on the network simultaneously without bottlenecking any single task. If you regularly work from a single-port USB-C laptop and need a clean, low-footprint way to connect a monitor, wired network, and peripherals, this is a straightforward solution to evaluate.

Key Features

• 4K 60Hz via HDMI 2.0: Drives one external display at 3840x2160 at 60 frames per second — the spec that matters if you're moving from a 1080p monitor to a 4K panel and want smooth, full-resolution output with no dropped frames or 30Hz compromise. One display only; not designed for dual-monitor setups.
• 140W USB-C Power Delivery (Rev. 3.2): Passes through up to 140W to the host laptop — enough to charge most high-performance 15- and 16-inch laptops at full rate while the adapter is actively driving video and data. No need to unplug and recharge separately. Verify your laptop's maximum PD input before assuming 140W will be accepted at that rate.
• USB 3.2 Gen 2 (10Gbps) Interface: The host connection runs at 10Gbps — that's twice the bandwidth of Gen 1 — so you're not creating a throughput ceiling that throttles your storage drives or video output. The USB-A port on the adapter also benefits from this headroom for fast peripheral data transfer.
• Gigabit Ethernet (10/100/1000 Mbps): Wired network connectivity eliminates the reliability variability of Wi-Fi in dense office environments. For video calls, large file transfers, or VPN-heavy workflows, a physical Ethernet connection via this adapter provides consistent latency and throughput that wireless can't guarantee.
• Aluminum construction, 0.3 lb, 8-inch cable: The machined aluminum body dissipates heat better than plastic housings during extended use. The integrated 8-inch (20.3 cm) cable keeps the adapter anchored near the laptop without creating cable slack, and the 0.3 lb weight means it won't drag or stress the host port.
• LED indicators — network and connection status: Two LEDs give you immediate visual confirmation of active network link and host connection state — useful when troubleshooting a dropped Ethernet connection or confirming the adapter has negotiated a session, without opening device manager.
• MTBF of 31,195 hours: StarTech publishes a Mean Time Between Failures figure for this adapter, which is uncommon at this product tier. At roughly 3.5 years of continuous operation, it provides a quantified reliability baseline relevant for IT procurement decisions where failure rates across a fleet matter.

Integration and Compatibility

The 305B-USBC-MULTIPORT (often searched as 305B USBC MULTIPORT) requires a host USB-C port with DisplayPort Alt Mode support — confirm your laptop or workstation explicitly supports DP Alt Mode over USB-C before ordering, as not all USB-C ports carry video signal. The HDMI 2.0 output is compatible with any HDMI 2.0-capable display or projector. The Gigabit Ethernet port works with standard 10/100/1000 Mbps network switches and routers without additional drivers on most modern operating systems. USB Power Delivery Rev. 3.2 is backward compatible with earlier PD revisions, though the 140W maximum will only be delivered if both the charger and host device support that wattage. Operating temperature is rated 0°C to 32°C (32°F to 90°F) — this is a standard office-environment rating, not a hardened or industrial spec. Storage temperature range is -10°C to 70°C. Humidity tolerance is 5% to 85% RH non-condensing.

For organizations deploying across a laptop fleet, the aluminum build and published MTBF make this a more defensible standardization choice than unbranded alternatives. The space gray colorway is designed to pair with silver/gray aluminum laptops common in enterprise environments.

Frequently Asked Questions

Q: Does the 305B-USBC-MULTIPORT support dual monitors?

A: No. The 305B-USBC-MULTIPORT supports a single external display only. It outputs one HDMI 2.0 signal at up to 4K 60Hz. If you need dual external display support, you'll need a different docking solution.

Q: Does the host USB-C port need to support DisplayPort Alt Mode?

A: Yes. The adapter uses USB-C with DP Alt Mode for video output. If your laptop's USB-C port is data-only and does not support DisplayPort Alt Mode, the HDMI port will not function. Check your laptop's USB-C port specification before purchasing.

Q: What is the maximum Power Delivery wattage, and will it charge my laptop at full speed?

A: The adapter supports USB Power Delivery Rev. 3.2 at up to 140W passthrough. Whether your laptop charges at 140W depends on the laptop's maximum PD input rating and the wattage of the power adapter you're passing through. The adapter itself does not supply power — it passes through from an attached USB-C charger.

Q: What is the warranty on the 305B-USBC-MULTIPORT?

A: StarTech covers the 305B-USBC-MULTIPORT with a 3-year manufacturer warranty.

Q: Is the Ethernet port Gigabit, and does it require drivers?

A: Yes, the integrated Ethernet port supports 10/100/1000 Mbps (Gigabit). Driver requirements vary by operating system — most modern OS versions will recognize the adapter automatically, but check StarTech's support page for OS-specific driver availability if needed.

Q: What are the operating temperature limits for the 305B-USBC-MULTIPORT?

A: The rated operating temperature range is 0°C to 32°C (32°F to 90°F). This is a standard office environment rating. Do not deploy in environments that exceed this range — storage temperature is separately rated at -10°C to 70°C.

Ted Perry

The spec that determines whether the 305B-USBC-MULTIPORT actually fits a deployment is the 140W Power Delivery passthrough on a USB 3.2 Gen 2 (10Gbps) host connection — that combination is what separates it from lower-tier adapters that force you to choose between charging speed and data throughput. On most enterprise laptops with 90W–140W PD requirements, you can run the full stack — 4K 60Hz display, wired Ethernet, USB-A peripheral, and full-rate charging — over one cable back to the host port.

Technical Highlights:

• 140W USB-C PD Rev. 3.2: Covers charging requirements for current-generation 15- and 16-inch workstation laptops at full rate — most competing adapters in this form factor cap at 100W, which throttles charging under CPU load on higher-wattage machines.
• HDMI 2.0 at 4K 60Hz: Full 4K output at 60Hz, not the 30Hz limitation you hit with older HDMI 1.4 adapters. For anyone moving to a 4K monitor, this is the threshold — 30Hz at 4K is visibly sluggish for everyday desktop use.
• MTBF 31,195 hours: That's a published reliability figure — roughly 3.5 years of continuous operation — which gives IT procurement a quantified baseline when standardizing across a fleet of 50 or 100 units where failure rate has budget implications.

Deployment Considerations:

• Confirm the host laptop's USB-C port explicitly supports DisplayPort Alt Mode — Thunderbolt 3/4 ports are safe, but not all USB-C ports carry video. This is the most common deployment failure point for this adapter class.
• The operating temperature ceiling is 32°C (90°F). In enclosed or poorly ventilated desk environments — particularly in hot-aisle server rooms or non-climate-controlled workspaces — ambient temperature can push past this limit and affect reliability. This is an office-rated adapter, not a hardened one.

The 305B-USBC-MULTIPORT is the right standardization choice for an enterprise laptop refresh where users are moving to thin-and-light USB-C-only machines and need a single, consistent dock accessory that handles a 4K monitor, wired network, and full-rate laptop charging without a separate power brick on the desk.
