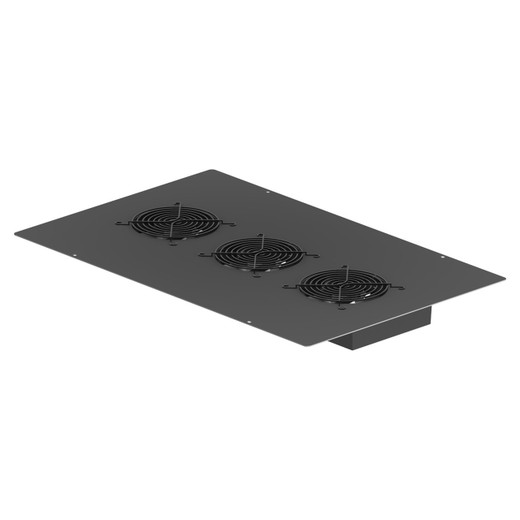

Vertiv TOP Panel FAN 225 CFM 115V ES EZ CAB - TPES-F

Vertiv TPES-F Concise Descriptor

Overview

The Vertiv TPES-F is a 225 CFM fan designed for installation within Vertiv EZ Cabinets. It provides essential airflow to manage thermal loads, preventing equipment overheating and ensuring operational stability in environments where rack-mounted electronics generate significant heat. This fan unit is critical for maintaining optimal operating temperatures for servers, network switches, and other sensitive IT infrastructure housed within these specific cabinet enclosures.

Compatibility

This fan unit is specifically engineered for and compatible with Vertiv EZ Cabinets. It is designed to integrate directly into the designated fan mounting locations within these enclosures. Verify your cabinet model number to ensure compatibility with the TPES-F fan. It is not designed for use in third-party enclosures or other Vertiv cabinet lines.

Installation Notes

The TPES-F operates on 115V AC power and requires a standard electrical connection within the cabinet. Installation involves securing the fan unit to the cabinet's internal fan bracket using the provided mounting hardware. Ensure the fan is oriented to provide proper exhaust airflow, pulling heat away from the equipment and expelling it from the cabinet. Proper airflow direction is critical for effective thermal management.

What's in the Box

• 1x Vertiv TPES-F Fan Unit
• 1x Power Cord
• Mounting Hardware
