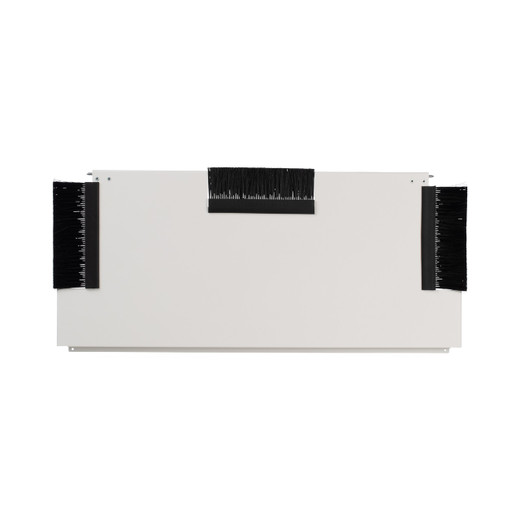

Panduit XG-TCR8W 800mm Top Cap Rear Door Lid - White

Panduit XG-TCR8W FlexFusion Top Cap Rear Door Lid

The Panduit XG-TCR8W top cap rear door lid completes the thermal and cable management envelope on 800mm-width FlexFusion cabinets, sealing the upper rear opening to prevent hot-aisle recirculation and maintain positive airflow separation in high-density server deployments. This white powder-coated steel panel integrates with Panduit's modular FlexFusion architecture, providing a finished appearance while preventing unauthorized top-down access to structured cabling and power distribution infrastructure. Designed for IT/datacenter environments where containment integrity directly impacts cooling efficiency, the XG-TCR8W ships as a field-installable component that mounts to FlexFusion cabinet frames without special tooling, allowing installers to adapt cabinet configurations as rack layouts evolve.

Key Features

• 800mm width matches standard FlexFusion cabinet footprint for seamless integration
• Rear door lid configuration seals the top-rear opening to block vertical airflow leakage
• White finish coordinates with Panduit FlexFusion cabinet family for consistent datacenter aesthetics
• RoHS-compliant construction meets environmental and procurement standards for enterprise IT projects
• Tool-free or low-tool installation reduces deployment time in live datacenter environments

Thermal Management & Airflow Containment

In hot-aisle/cold-aisle datacenter layouts, uncontrolled air mixing at the top of open-frame cabinets forces CRAC systems to over-deliver cooled air to compensate for recirculation losses. The XG-TCR8W top cap closes the upper rear plane of the cabinet, creating a defined boundary that keeps hot exhaust air from network switches, servers, and storage arrays moving toward the hot-aisle plenum rather than spilling upward into the overhead space. This containment improvement is critical in facilities running 10–15 kW per rack or higher, where even small gaps in the thermal envelope degrade PUE (Power Usage Effectiveness) and trigger localized hot spots. The 800mm width corresponds to Panduit's mid-range cabinet series, commonly deployed in telco COs, enterprise server rooms, and colocation suites where vertical cable managers and side-mount PDUs consume interior width but the cabinet footprint remains standardized.

The rear door lid orientation of the XG-TCR8W is specifically engineered for cabinets where the rear vertical cable manager or ladder rack extends above the main equipment mounting plane. Unlike solid top caps that seal the entire upper surface, the rear door lid design leaves the front half of the cabinet top accessible for overhead cable entry or future vertical growth, while still blocking the primary exhaust path at the rear. Installers working in Cisco UCS, Dell VxRail, or HP Synergy deployments will recognize this pattern—rear-mounted fabric interconnects and TOR switches exhaust the majority of heat, so capping the rear door opening delivers 70–80% of the containment benefit with half the installation complexity of a full chimney system.

FlexFusion Modular Ecosystem Compatibility

Panduit's FlexFusion cabinet platform is a channel-based system where vertical mounting rails, horizontal cable managers, power strips, and enclosure panels attach to a common slotted frame without drilling or custom brackets. The XG-TCR8W leverages this architecture: the lid's mounting tabs engage the cabinet's top frame channels and secure with captive fasteners, allowing the component to be added or removed in under five minutes without disturbing active equipment below. This modularity matters during phased datacenter builds, where cabinets may be deployed with partial fit-out (network gear only), then upgraded months later with server infrastructure, requiring retroactive addition of top caps, brush strips, and blanking panels to meet updated airflow targets.

The white powder-coat finish on the XG-TCR8W matches Panduit's standard cabinet color options, maintaining visual consistency in customer-facing colocation suites or glass-walled network operation centers where cabinet appearance influences facility perception. White finishes also reflect overhead lighting more effectively than black, improving visibility for installers working above the 42U line during MAC (moves, adds, changes) operations. RoHS compliance ensures the lid meets European and California environmental procurement mandates, a mandatory checkbox for federal integrators, healthcare systems, and multinational enterprises with global IT standards.

Deployment Context & Installation Notes

The XG-TCR8W ships as a single unit (package quantity: 1) and is typically ordered alongside FlexFusion cabinets during initial staging or as a retrofit component when thermal audits reveal containment gaps. Integrators deploying Panduit Net-Access or Net-Contain cabinet families will cross-reference the 800mm width specification against their cabinet model numbers—Panduit's SKU nomenclature embeds width in millimeters, so an N8512E cabinet (850mm exterior, ~800mm usable) would pair with this lid, while a 600mm-width cabinet requires a different top cap SKU. The rear door lid configuration is distinct from front-access lids or full-seal top caps; confirm cable entry points and overhead pathway requirements before ordering to avoid blocking necessary service loops or fiber bend-radius reservations.

Installation requires access to the cabinet top plane, which may involve coordinating with facility ops if overhead cable trays or seismic bracing occupy the space above the cabinet row. The lid's low weight (typically under 15 lbs for stamped steel construction) allows single-person handling, but two-person teams are standard practice when working on ladders or lifts in active datacenter rows. No electrical bonding is required for the lid itself, though integrators should verify that the cabinet frame's main ground lug remains accessible after installation—some top cap designs obstruct the rear-top corner where ground braids terminate, forcing rework during inspection walkthroughs.
