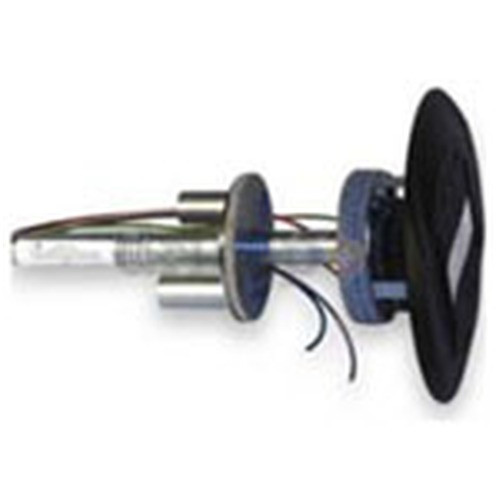

Hubbell S1PT4X4BL Fire-Rated Poke-Through

Overview

The Hubbell SystemOne S1PT4X4BL is a one-piece, fire-rated poke-through fitting designed for 4x4 ceiling penetrations. It provides essential firestopping capabilities, maintaining the integrity of fire-rated assemblies by preventing the passage of flame and smoke through openings created for cables and conduits. This unit is engineered for straightforward installation in commercial construction environments where code compliance for fire barriers is critical.

Compatibility

This poke-through fitting is designed to work with standard 4x4 inch openings in fire-rated floor and ceiling assemblies. It is compatible with various types of low-voltage, data, and power cabling, including Cat5e, Cat6, Cat6a, and standard AC power cords, provided they are routed according to local codes and manufacturer guidelines. It is intended for use within the Hubbell SystemOne product ecosystem for integrated solutions.

Installation Notes

Installation requires a precise 4x4 inch cut-out in the fire-rated assembly. The S1PT4X4BL is designed for a single-piece drop-in installation, requiring minimal tools. Ensure that all cables routed through the poke-through are properly bundled and secured to prevent strain. Adherence to local building and fire codes, as well as specific instructions provided by Hubbell, is mandatory for maintaining fire-rating compliance. The unit is designed to be secured from above or below the assembly using appropriate fasteners (not included).
