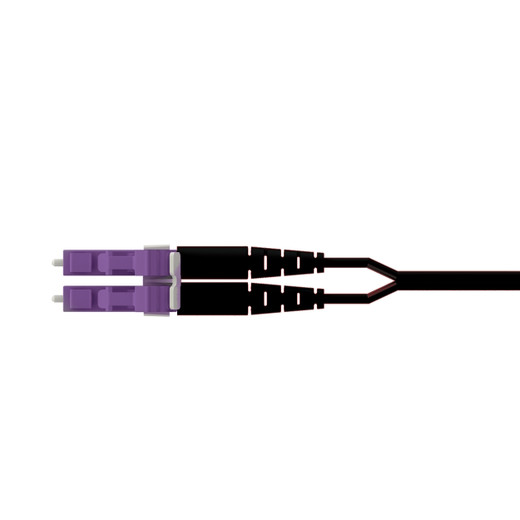

Panduit F92EPKGLGSGM003 OS2 G-Keyed Fiber Patch Cord

Panduit F92EPKGLGSGM003 Opti-Core OS2 G-Code Keyed Fiber Patch Cord

The Panduit F92EPKGLGSGM003 is a 3-meter OS2 single-mode fiber patch cord engineered for secure datacenter and enterprise backbone applications where physical-layer access control is critical. Part of the Opti-Core cabling system, this 2-fiber duplex LC jumper features G-code keying on one end and a standard non-keyed LC connector on the other—ideal for transition zones between high-security areas and standard network segments. The violet 1.6mm zipcord jacket is plenum-rated (OFNP) for installation in air handling spaces, and the cable meets TIA-598-D color standards for OS2 single-mode fiber. Commercial integrators use this configuration to enforce physical access policies at the infrastructure layer without requiring additional hardware locks.

Key Features

• G-code keyed LC duplex connector on one end, standard LC duplex on the other
• OS2 single-mode fiber (9/125µm) for long-distance, high-bandwidth links up to 100G
• OFNP plenum rating for installation above drop ceilings and in HVAC spaces
• 3-meter (9.84 ft) length for rack-to-rack or intra-row datacenter connections
• Violet jacket per TIA-598-D color coding for OS2 identification
• 1.6mm zipcord cable construction for flexibility and ease of routing
• Standard insertion loss performance for reliable optical budget
• Part of Panduit Opti-Core keyed cabling system for physical layer security

The G-code keying system provides an additional layer of physical security by ensuring fiber connections can only be made between matching keyed components. The keyed LC connector features a unique geometric profile that prevents insertion into standard (non-keyed) adapters and vice versa—unauthorized personnel cannot patch into secured network segments without the correct keyed hardware. This F92EPKGLGSGM003 cord is specifically designed for transition scenarios: the G-code keyed end terminates in a secure zone (classified datacenter, financial trading floor, government facility), while the non-keyed end connects to standard infrastructure. This mixed configuration is common in migrations where portions of the network are being secured incrementally, or in perimeter scenarios where traffic enters a secure enclave from a standard distribution layer. The violet color of the keyed end matches the violet of the non-keyed end, maintaining TIA-598-D color compliance across the link.

OS2 single-mode fiber delivers superior performance for long-distance and high-bandwidth applications—supporting 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 over distances up to 10 kilometers or more, far exceeding the reach of multimode fiber. The OFNP (Optical Fiber Nonconductive Plenum) jacket rating meets NEC Article 770 requirements for installation in air handling spaces, where low-smoke, low-flame-spread materials are mandated. Datacenter architects specify plenum-rated fiber for overhead cable trays, under-floor pathways, and vertical riser distribution where airflow for HVAC systems is present. The 1.6mm zipcord construction—two individual fibers in a flat, ribbon-like jacket—provides the flexibility needed for tight bend radii in high-density rack environments while maintaining the 9/125µm core geometry that defines single-mode performance. At 3 meters, this cord is ideal for intra-rack connections, cross-connects between adjacent racks, or short backbone jumpers in collapsed datacenter topologies.

This patch cord is RoHS-compliant and manufactured to Panduit's ISO 9001 quality standards, ensuring consistent optical performance and mechanical durability across every production run. Opti-Core keyed fiber systems are widely deployed in defense, finance, healthcare, and government installations where physical layer security is a compliance requirement—preventing accidental or intentional cross-connection of sensitive traffic. Choosing Panduit for critical infrastructure cabling means choosing a vendor with decades of mission-critical datacenter experience and a keyed-component ecosystem that scales from patch cords to cassettes to trunk assemblies.
