Speco Technologies PVMMT75 VESA 75 Mount
Overview

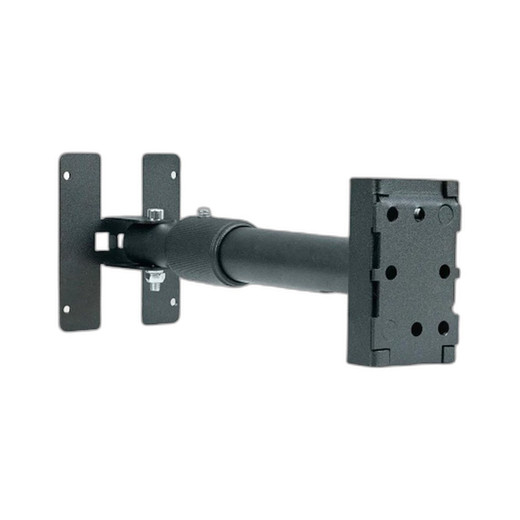

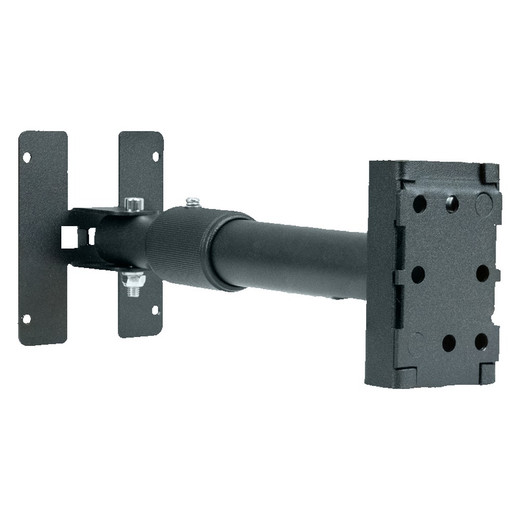

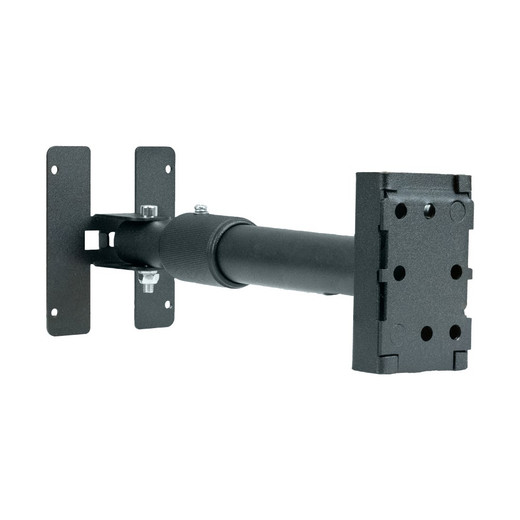

The PVMMT75 is a pole and rack-mounted VESA 75x75mm bracket for Speco Technologies PVM10 and O5DH display monitors. This clamp-on mount secures monitors to vertical pipe or tube structures typical in control room builds, surveillance operations centers, and field installations where rigid fixed placement is required. The 6kg load capacity handles standard commercial security monitors without secondary support.
Compatibility
Designed exclusively for VESA 75x75mm mounting holes on Speco PVM10 and O5DH monitor models. The bracket uses M4x8 screws for monitor attachment and M6x12 screws to lock the bracket assembly to the base plate. Do not use this mount with non-VESA 75 monitors or Speco displays with different hole spacing — fit is guaranteed only on the named models.
Installation Notes
The PVMMT75 accommodates two clamp ranges: 33–57mm diameter pipe (standard 1-inch pole) and 65–89mm diameter tube (2-inch×3-inch structural tube). Position the metal transfer plate against the pipe or tube, then apply stainless steel clamps and tighten with the included solid and hexagonal wrenches. For added security, install the two M6x90 screws with cushion pads and caps to prevent clamp slippage under vibration. The mounting angle and length are adjustable by loosening the monitor-attachment screws before final lock-down. Vertical installations require the metal transfer plate to distribute clamping force evenly.
What's in the Box
- 1x Solid wrench
- 1x Hexagonal wrench
- 2x 33–57mm stainless steel clamp
- 2x 65–89mm stainless steel clamp
- 2x M6x90 screw with cushion pad and cap
- 1x Metal transfer plate
- 2x M6x12 screw for transfer plate
