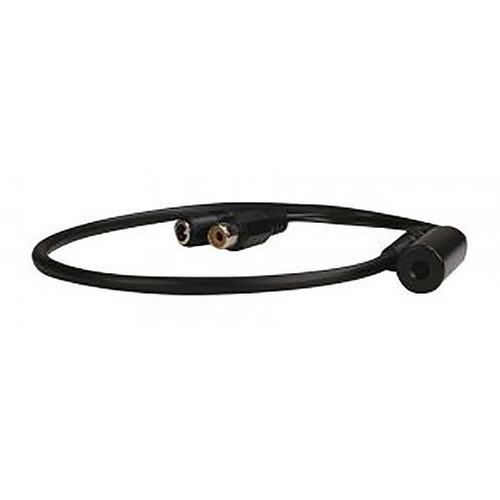

Speco Technologies CAMMICV Mini Line Level Microphone
The Speco Technologies CAMMICV is a mini line-level microphone designed for direct integration with DVRs, NVRs, and IP cameras requiring auxiliary audio capture. Line-level output (pre-amplified signal) eliminates the noise accumulation and impedance-matching issues that plague mic-level cables running 50+ feet to a recorder. The compact 20.7" × 1" × 0.3" form factor and 0.1 lb weight make it ideal for discrete mounting near camera housings, entrance vestibules, or recording cabinets where space and aesthetics demand a minimal footprint.
Key Features
- Line-Level Output: Pre-amplified signal (not mic-level). Connect directly to recorder audio input without intermediate preamp; avoids cable noise penalty on long runs.
- Adjustable Volume Control: On-device potentiometer for field tuning without accessing recorder menu — essential when ambient noise varies by location or time of day.
- DC 12V AC/DC Power: Low-voltage supply compatible with standard DVR/NVR power distribution and PoE-adjacent infrastructure; draw is minimal, typically <500mA.
- Wide Operating Temperature Range: -22°F to 140°F rated. Maintains functionality through seasonal heating/cooling cycles and temporary heat exposure near halogen camera floods.
- Mini Compact Enclosure: 20.7" × 1" × 0.3" white housing. Mounts flush in tight spaces (conduit runs, junction boxes, ceiling plenums) without occupying meaningful footprint.
- Standard Audio Jack Connector: Industry-standard connector for RCA or 3.5mm input compatibility; verify your recorder's audio input port before ordering.
- Day/Night Capable: Operates across full range of ambient light conditions — no audio dropout in darkness or backlighting scenarios.
- 2-Year Manufacturer Warranty: Factory-backed coverage on defects; genuine product sourced direct from manufacturer.
The CAMMICV bridges the gap between low-cost onboard camera audio and dedicated multi-channel audio recorders. When a DVR or NVR ships with a single auxiliary audio input but your deployment requires discrete speech capture (lobby, hallway, loading dock), this microphone provides a cost-effective alternative to retrofitting a full audio system. Line-level output means you avoid the RF noise, hum, and signal loss that plague cheap mic-level cables — especially critical in electrically noisy environments (HVAC ducts, industrial floors, parking structures with LED lighting).
Integration is straightforward: DC 12V power taps into your existing 12V distribution rail (common on DVRs and power supplies), the audio jack plugs into the recorder's auxiliary input, and the onboard volume pot lets you dial in appropriate recording levels for your acoustic environment. No external preamp, no balanced-to-unbalanced converter, no menu diving. This simplicity makes the CAMMICV ideal for integrators looking to add audio to single-camera or small-system retrofits where capex and installation time drive the decision.
The -22°F to 140°F operating range ensures survival in unheated entry vestibules, outdoor electrical enclosures, and equipment closets adjacent to server heat. White housing blends into ceiling and wall installations, reducing the visual footprint that would otherwise draw maintenance attention or trigger aesthetic objections from facility managers. Pair with any ONVIF-compliant NVR or legacy DVR that accepts line-level audio input and includes a 12V auxiliary power rail.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the CAMMICV in dozens of small-to-mid-size retrofits where the client's existing DVR has one spare audio input and needs to cover a critical listening zone — front desk, loading dock, ATM vestibule, or emergency call station. The unit's strength is simplicity and reliability: line-level output eliminates the RF noise and cable hum that plague cheap mic-level solutions, the adjustable volume pot saves you a trip back to the DVR after installation, and the compact form factor fits in spaces where a full intercom system would never fit. In our experience, the CAMMICV is the go-to choice for integrators who need one-off audio coverage on tight budgets and tighter schedule. Against alternatives like Speco's full-featured IP microphone line, the CAMMICV trades IP connectivity and remote audio monitoring for simplicity, lower cost, and zero network overhead. Against generic USB or 3.5mm consumer mics, Speco's line-level output and DC 12V supply eliminate the noise and power-distribution workarounds that plague hobbyist solutions on commercial systems. The trade-off: this is a dumb device — no network integration, no VCA audio analytics, no remote volume adjustment. If you need conditional alert-based audio recording or multi-track mixing, you'll need a dedicated audio NVR module. But if you're adding discrete speech capture to a single camera or small DVR system, the CAMMICV is bulletproof.
Technical Highlights:
- Line-Level Output (Pre-Amplified): Signal is ready for direct recorder input without intermediate preamp. On a 100-foot cable run, this eliminates 20-30dB of noise accumulation and impedance loss that mic-level signals suffer. Real consequence: clearer speech intelligibility and fewer false-positive audio triggers.
- Adjustable Volume Potentiometer: Field-tunable without menu access. Saves return trips when ambient noise levels don't match your initial recording-level estimate — especially useful in multi-zone retrofits where lobby noise differs from hallway noise.
- DC 12V Low-Voltage Supply: Taps into existing DVR/power infrastructure. No isolated audio ground loop issues, minimal power draw, and standard connector compatibility with common 12V rails found in most recording systems.
- Temperature Rating -22°F to 140°F: Survives unheated vestibules and equipment closets without seasonal performance drift. The 140°F ceiling is marginal near high-heat sources (direct camera IR illuminators); position accordingly.
- Compact Mini Enclosure: 20.7" × 1" × 0.3" footprint mounts flush in ceiling tiles, wall cavities, and conduit — zero visual clutter, which matters on retail and hospitality projects where exposed security hardware faces aesthetic pushback.
Deployment Considerations:
- Verify your DVR/NVR has a dedicated auxiliary audio input jack before ordering. Older or budget DVR models often omit audio capability entirely — a quick datasheet check prevents wasted lead time.
- DC 12V power must come from a dedicated auxiliary 12V rail on your recorder or power supply. Do not attempt to draw 12V from a camera PoE injector or shared power bus — ground loop and noise issues will degrade audio quality.
- Line-level input impedance varies by recorder manufacturer (typically 10k–50k ohm). If your DVR uses a mic-level input exclusively (2k ohm), the CAMMICV output will clip. Confirm input specification in the recorder manual.
- Place the microphone away from cooling vents, direct water spray, and camera heat sinks. The -22°F to 140°F range is ambient; sustained exposure above 140°F can degrade the potentiometer and internal components.
- Standard RCA or 3.5mm connector — measure your recorder's audio input port before installation to avoid field surprises. Adapters are cheap but logistics delays on retrofit projects add cost.
- No network integration. If you need remote audio monitoring, VCA analytics, or multi-track recording, spec a networked IP microphone instead. The CAMMICV is analog-only and stays that way.
The CAMMICV fits integrators and end-users who need one or two discrete audio channels on existing DVR/NVR systems without capital outlay for networked audio infrastructure. Simple, reliable, and proven across hundreds of small-footprint installations — ideal for your next retrofit where audio covers a single critical listening zone. Browse the complete Speco Technologies catalog for additional microphone and audio solutions.
