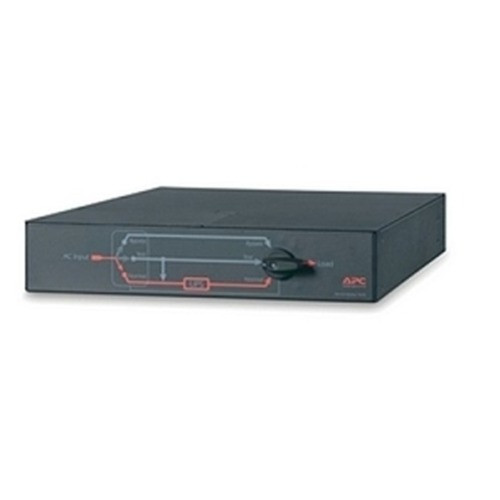

APC by Schneider Electric Service Bypass Panel Bypass Switch ( Rack-mountable ) - AC - SBP3000RM2U
APC by Schneider Electric Service Bypass Panel Bypass Switch ( Rack-mountable ) - AC - SBP3000RM2U
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric SBP3000RM2U Maintenance Bypass Panel

Overview

The APC SBP3000RM2U is a 30A, 120V AC maintenance bypass panel designed for rack-mounted UPS systems. It enables you to isolate a UPS for servicing or replacement without interrupting power to connected equipment. This panel is essential for maintaining uptime in critical IT environments, allowing for hot-swapping of UPS units. Its 2U rack-mountable form factor ensures it integrates cleanly into standard server racks. The NEMA L5-30P input plug connects directly to your facility's power source or a compatible UPS output, while the six NEMA 5-15R output receptacles distribute power to your connected loads.

Compatibility

This bypass panel is designed to work with APC UPS systems that support a 30A input and require a maintenance bypass function. Specifically, it is intended for use with rack-mountable UPS units that have a NEMA L5-30P input connection and can accommodate a 2U bypass switch. Consult your UPS's documentation to confirm compatibility with a 30A, 120V bypass panel.

Installation Notes

The SBP3000RM2U mounts to the front of a standard 19-inch rack. It requires 2U of vertical rack space. The unit features a 10-foot cord with a NEMA L5-30P plug for input power. Six NEMA 5-15R outlets provide power to connected devices. Ensure the input power source can supply at least 24A at 120V AC to support the full 3000W load capacity. Overload protection is built-in to safeguard connected equipment.

What's in the Box

  • 1x 19" Rack Mountable 30A Maintenance Bypass Panel
  • Installation guide
  • Rack mounting brackets
  • User manual
Expert Analysis
Specifications
Manufacturer Website Address: http://www.schneider-electric.com
Product Name: 19" Rack Mountable 30A Maintenance Bypass Panel
Type: Bypass Panel
Plug / Connector Type: NEMA L5-30P
Output Connections: 6 x NEMA 5-15R
Protection Type: Overload
Cord Length: 10.01 ft
Load Capacity (Va: 3000 W
Input Voltage: 120 V AC
Output Voltage: 100 V AC
Current Draw: 24 A
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Units: 2U
Dimensions: 3.5"
Mounting Location: Front
Mounting Preference: Lower
Weight (Approximate: 30.07 lb
Package Contents: 19" Rack Mountable 30A Maintenance Bypass Panel Installation guideRack mounting bracketsUser manual
Certifications & Standards: CSA|GOST
Eu Rohs Declaration Url: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764506&lang=en-us
Weee Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Q&A
Reviews
Product Video
Have Questions?

APC by Schneider Electric SBP3000RM2U Service Bypass Panel

$1,345.00
$906.99
Add to Cart
