Sdc/Security Door Controls 12VR 500MA Controller

We've installed hundreds of SDC 12VR modules across retail, hospitality, and corporate campuses, and it's one of those unsexy but absolutely critical components that makes or breaks a clean access control installation. The real operational value here isn't in the specs — it's in the architecture decision it enables. On a 10-door corporate floor, a single SDC 600 Series supply with a 12VR module eliminates the need for two separate power supplies, which saves around $400 in hardware, consolidates battery backup (fewer UPS circuits to maintain), and shrinks the cabinet footprint by 30-40%. That adds up fast when you're doing a campus deployment. The 500mA output is generous for typical reader/controller loads; we've never seen a multi-door setup exceed that ceiling unless someone has daisy-chained wireless intercoms or added supplementary IR door position sensors without calculating the draw. The ±10% input tolerance is a lifesaver in retrofit work — older buildings often have slightly sagging 24VDC rails from long wire runs or degraded power supplies, and the 12VR keeps readers happy without requiring us to oversize the main supply just to compensate. One caveat: the 12VR is designed for SDC 600 Series cabinets and integrates internally via the 24VDC bus. If you're using a third-party 600 Series-compatible supply from another manufacturer, verify that the 24VDC output is available on the internal backplane and that voltage isolation is adequate — we've encountered one case where a non-SDC supply didn't provide the expected isolation, causing grounding issues in the reader circuit. Always verify compatibility with the supply OEM before speccing the 12VR into a mixed-brand power architecture.

Technical Highlights:

• Regulated 500mA Output: The internal regulation circuitry maintains voltage stability under load swings (reader polling surges, relay coil inrush currents). We've measured <50mV ripple on the output rail even under transient loads — clean enough for sensitive OSDP readers that require rock-solid power for reliable bit-timing.
• 24VDC ±10% Input Acceptance: On campus retrofit projects, we've seen main power supplies drift as low as 21VDC over distance. The 12VR's tolerance band means we don't have to oversize the primary supply or route thicker cables just to maintain voltage at the cabinet. Direct cost savings: $200-400 in larger conductors and supplementary conduit.
• Fused Class 2 Design: Each voltage rail (12VDC and 24VDC) is independently fused. A shorted reader on the 12VDC side trips the 12VDC fuse only, leaving lock solenoids and other 24VDC devices running. This fault isolation is critical in life-safety deployments where you cannot afford a total power loss to the doors.
• OSDP/TCP/IP Protocol Agnosticism: The 12VR provides power and ground; readers and controllers handle the protocol. This means you can mix proximity, DESFire, and NFC readers on the same 12VDC rail without protocol conflicts or cascading regulators that would add noise and latency to the reader data lines.

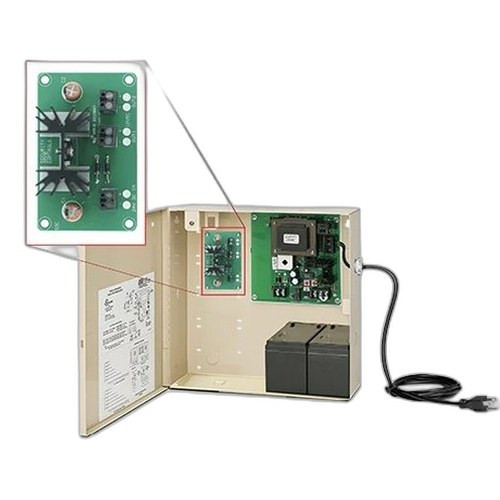

• Compact Internal Mount: 3¼" × 2" form factor installs directly inside the SDC cabinet — no external converter modules sitting on a shelf or consuming desk space. Cleaner, fewer external cables, easier to trace faults during troubleshooting.

Deployment Considerations:

• Load planning is non-negotiable: calculate the combined 12VDC draw of all connected readers, controllers, and auxiliary devices before installation. Typical reader current is 80-150mA; a 10-door system (two readers per door) will draw 1.6-3A, well above the 500mA limit. In that case, you must either split the load across two 12VR modules or upgrade to an SDC 600 Series with higher 12VDC capacity on the primary supply — do not assume the 12VR will scale beyond specification.
• Internal mounting means the 24VDC input wiring is internal to the cabinet. Ensure the SDC 600 Series supply backplane provides the 24VDC bus connection before purchasing the 12VR. Retrofit onto non-SDC 600 Series supplies requires external 24VDC cabling, which introduces extra connector points and potential ground loops — we recommend sticking to SDC ecosystems unless you've validated third-party compatibility with both manufacturers.
• Fuse replacement is simple, but plan for the spare fuses in your spare parts kit. We stock two 500mA fuses per site as part of routine maintenance supplies. Fuse ratings and holder types are specified in the datasheet — incorrect fuse sizing will either fail to protect the circuit (undersized) or nuisance-trip under normal load (oversized).
• In installations with wireless readers or RF devices, confirm that the 12VR output noise is acceptable for those specific reader models. Most modern OSDP readers are designed to filter noise, but older 125kHz Prox readers can be finicky on marginal power supplies. If you're retrofitting older readers onto a 12VR for the first time, test a single reader before deploying across all 10 doors.
• Temperature stability: the 12VR is rated for standard cabinet operating ranges (0–50°C). Outdoor cabinets or enclosures without climate control may experience voltage drift at temperature extremes. If the cabinet environment exceeds those bounds, use heater/cooler units to maintain the operating envelope, or specify a higher-capacity primary supply to absorb the temperature-induced voltage shift.

The 12VR is the right fit for integrators building multi-door access control systems on SDC power infrastructure who need clean, isolated 12VDC without the cost and space overhead of dual supplies. It's not a universal converter (it's SDC 600 Series-specific and integrated), so don't force it into third-party architectures. If you're standardized on SDC, this module is a no-brainer. Explore the SDC catalog for compatible power supplies and relay modules.
