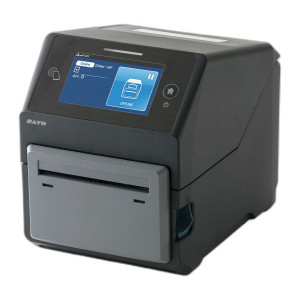

SATO CT4-LX 305dpi Desktop Thermal Printer WWCT02041-WAN

SATO CT4-LX 305dpi Desktop Thermal Printer – WWCT02041-WAN

The SATO WWCT02041-WAN is a high-performance desktop thermal printer engineered for enterprise-grade label production in demanding logistics, manufacturing, and warehouse environments. This compact yet powerful system combines 305 dpi resolution with dual printing modes—direct thermal and thermal transfer—delivering professional-quality barcodes, text, and graphics at 8 inches per second. The intuitive 4.3" full-color touchscreen simplifies configuration and operation, while integrated multi-protocol connectivity ensures seamless integration into existing IT infrastructure.

Key Features

• 305 dpi resolution for crisp barcode and text output at enterprise quality
• 8 ips print speed with 4.09" maximum print width
• Direct thermal and thermal transfer modes for flexible labeling workflows
• 4 GB Flash, 1 GB DDR3, and 2 GB user-accessible storage for forms, fonts, and graphics
• Quad connectivity: Ethernet, Wi-Fi, Bluetooth, and USB 2.0
• 4.3" full-color touchscreen with intuitive menu navigation
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• Supports media rolls up to 5" outer diameter with 1" to 4.1" width range
• Ribbon capacity up to 984 feet (300 m) for extended production runs

Technical Specifications

• Print Resolution: 305 dpi
• Print Speed: 8 ips
• Maximum Print Width: 4.09"
• Memory: 4 GB Flash, 1 GB DDR3 RAM, 2 GB user storage
• Connectivity: Ethernet, Wi-Fi, Bluetooth, USB 2.0
• Display: 4.3" full-color touchscreen
• Media Range: 1" to 4.1" width; rolls up to 5" diameter
• Maximum Ribbon Length: 984 ft
• Dimensions: 7.0" W × 9.375" D × 8.4375" H
• Weight: 7.3 lbs (3.3 kg)
• Power: AC 100-240V, 50/60 Hz
• Operating Temperature: 32°F to 104°F (0°C to 40°C)

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing part identification and serialization
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Healthcare and pharmaceutical tracking
• Retail price and product labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

Karl Wilson

The SATO CT4-LX WWCT02041-WAN is a versatile mid-range thermal printer that balances performance, flexibility, and operational simplicity. The dual-mode printing capability—direct thermal for cost-effective short-term labels and thermal transfer for durable long-life applications—makes this system adaptable to diverse business requirements. At 305 dpi and 8 ips, it delivers quality comparable to enterprise systems while maintaining a compact footprint suitable for space-constrained environments.

The quad-connectivity option (Ethernet, Wi-Fi, Bluetooth, USB) is particularly valuable in modern supply chains where network flexibility and mobile integration are essential. The 4.3" touchscreen and tool-free maintenance design reduce training time and downtime, lowering total cost of ownership. With 2 GB user storage and 4 GB flash memory, the printer accommodates complex label templates, custom fonts, and graphics without network dependency. This configuration is ideal for mid-to-large operations requiring reliable, rapid label production with minimal IT overhead.
