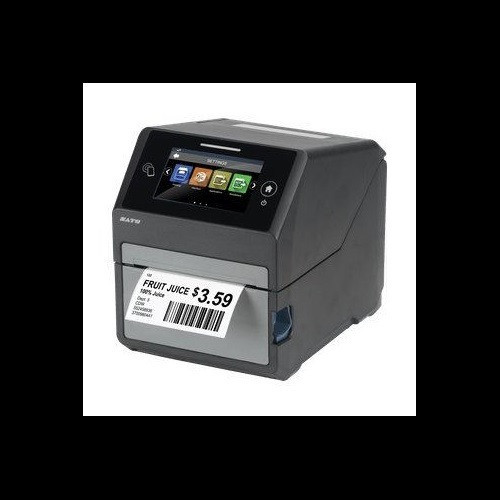

SATO CT4-LX 203dpi UHF RFID Desktop Thermal Printer

SATO CT4-LX 203dpi UHF RFID Desktop Thermal Printer – WWCT03241-NCR

The SATO WWCT03241-NCR is a compact yet powerful desktop thermal printer engineered for enterprise-grade RFID label production. Combining 203 dpi thermal printing with integrated UHF RFID encoding (860-960 MHz, EPC C1G2 standard), this printer delivers reliable barcode and smart label output in demanding supply chain and asset tracking environments. The 4.3-inch full-color touchscreen and intuitive controls make operation straightforward, while advanced features like SATO RF Analyze auto-optimization ensure consistent RFID performance across varying inlay types.

Key Features

• 203 dpi resolution at 8 ips print speed for sharp barcode and text output
• 4.09-inch maximum print width supports standard label formats
• Integrated UHF RFID encoding with SATO RF Analyze antenna auto-optimization
• 4 GB Flash + 1 GB DDR3 memory with 2 GB user storage for forms, fonts, and templates
• 4.3-inch full-color touchscreen for intuitive operation and real-time monitoring
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Multi-protocol connectivity: USB 2.0, Ethernet, Bluetooth, and Wi-Fi
• Compact desktop footprint: 7.0" × 9.375" × 8.4375", weighing just 7.3 lbs

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 8 inches per second
• Maximum Print Width: 4.09 inches
• Media Width Range: 1 inch to 4.1 inches
• Media Core Size: 1.5 inches
• Maximum Roll Diameter: 5 inches
• Maximum Ribbon Length: 984 feet
• RFID Frequency: 860–960 MHz (UHF)
• RFID Standard: EPC C1G2
• Memory: 4 GB Flash, 1 GB DDR3, 2 GB user storage
• Power Input: AC 100–240V, 50/60 Hz
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Dimensions: 7.0" × 9.375" × 8.4375"
• Weight: 7.3 lbs (3.3 kg)

Typical Applications

• UHF RFID tag encoding and verification for asset tracking and inventory management
• Smart label production for supply chain visibility and logistics optimization
• Manufacturing item-level RFID tracking for production workflow automation
• Retail and warehouse automated inventory systems with real-time tag encoding
• Healthcare and pharmaceutical track-and-trace labeling compliance

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CT4-LX strikes an effective balance between compact form factor and enterprise-class capabilities. At 203 dpi and 8 ips, it delivers acceptable throughput for mid-volume label operations while maintaining print quality suitable for barcode scanning and RFID antenna alignment. The SATO RF Analyze auto-optimization feature is a significant advantage for organizations deploying diverse inlay types—it automatically adjusts antenna parameters to ensure consistent tag encoding without manual tuning, reducing encoding failures and rework.

The 4 GB Flash and 1 GB DDR3 provide sufficient capacity for complex label templates and high-volume batch processing. Dual memory architecture allows simultaneous template storage and real-time print job buffering, minimizing bottlenecks in fast-paced production environments. Tool-free printhead and platen replacement directly reduces mean time to repair (MTTR), a critical metric for supply chain operations where printer downtime equals lost productivity.

The 4.3-inch touchscreen positions this printer as user-friendly for operators across skill levels, eliminating the learning curve associated with legacy command-line interfaces. Multi-protocol connectivity (Ethernet, Wi-Fi, Bluetooth, USB) provides deployment flexibility in both networked enterprise environments and standalone mobile scenarios. The compact 7.3 lb desktop footprint makes it suitable for space-constrained label production areas without sacrificing performance.
