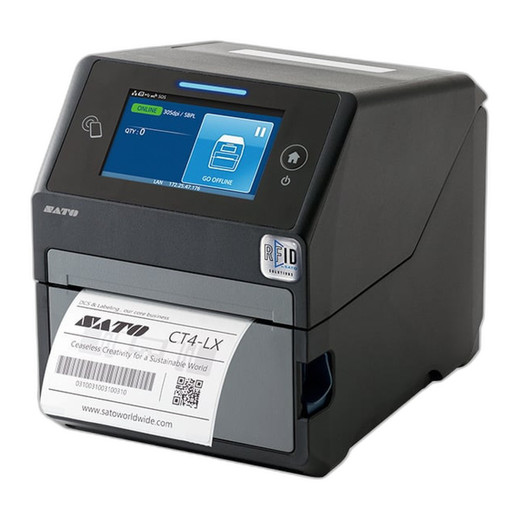

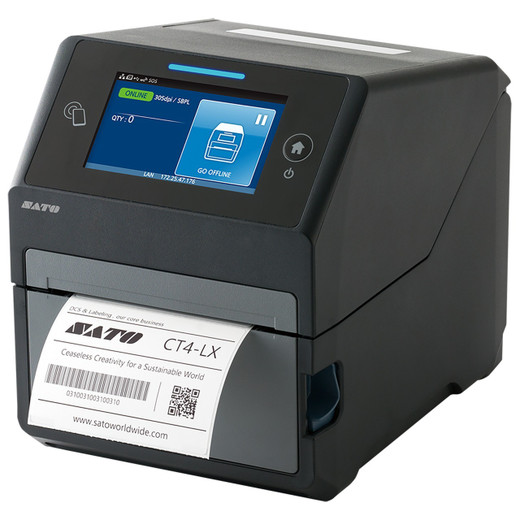

SATO CT4-LX 203dpi Desktop Thermal Printer WWCT03041

SATO CT4-LX 203dpi Desktop Thermal Printer WWCT03041

The SATO CT4-LX (WWCT03041) is a professional-grade desktop thermal printer engineered for high-volume enterprise label production. Combining compact form factor design with robust thermal printing capabilities, this printer delivers 203 dpi resolution at 8 inches per second (ips), making it ideal for organizations requiring reliable, rapid barcode and label generation across logistics, manufacturing, and warehouse operations.

Key Features

• 203 dpi resolution at 8 ips for sharp barcode, text, and graphic output
• 4.09" maximum print width with media roll support up to 5" outer diameter
• Dual-mode printing: Direct Thermal and Thermal Transfer for maximum media flexibility
• 4 GB Flash + 1 GB DDR3 memory with 2 GB user-accessible storage for custom fonts and forms
• 4.3" full-color touchscreen for intuitive operator interface and job management
• Comprehensive connectivity: Ethernet, Wi-Fi, Bluetooth, and USB 2.0
• Tool-free printhead and platen roller replacement for minimal maintenance downtime
• Universal media compatibility: 1" to 4.1" print widths on 1.5" cores
• Ribbon capacity up to 300 meters for extended print runs

Technical Specifications

• Print Resolution: 203 dpi (8 dots/mm)
• Print Speed: 8 inches per second maximum
• Print Width: 4.09" maximum
• Memory: 4 GB Flash, 1 GB DDR3, 2 GB user storage
• Display: 4.3" touchscreen
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Media Roll OD: Up to 5"
• Ribbon Length: Up to 300 m (984 ft)
• Dimensions: 7.0" × 9.375" × 8.4375"
• Weight: 7.3 lbs
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 0°C to 40°C

Applications

• Shipping, logistics, and parcel labeling at scale
• Manufacturing product identification and serialization
• Warehouse inventory tracking and routing labels
• Compliance and regulatory barcode labeling
• Asset management and fixed-asset tagging
• Healthcare and pharmaceutical labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CT4-LX represents a well-balanced choice for mid-to-large enterprises transitioning from entry-level to production-grade thermal printing. Its 203 dpi resolution strikes a practical middle ground—sufficient for GS1-compliant barcodes and readable text without the footprint or cost of high-density 300+ dpi systems. The 8 ips throughput accommodates batch printing of 500+ labels per hour, suitable for shipping centers and fulfillment operations.

The dual thermal capability (direct thermal and thermal transfer) is a significant operational advantage. Direct thermal supports cost-effective shipping labels without ribbon expense, while thermal transfer enables durable labels on synthetic media—critical for warehouse and manufacturing environments exposed to moisture, chemicals, or temperature extremes.

The 4 GB flash with 2 GB user storage allows storage of hundreds of custom label formats, fonts, and graphics locally—reducing dependency on network connectivity or print server infrastructure. On-device storage is particularly valuable in distributed warehouse networks where bandwidth is limited.

Tool-free maintenance (printhead and platen replacement) minimizes technical support overhead and extends mean time to repair. For high-volume operations, this translates directly to reduced operational friction and faster recovery from wear-related issues.

Connectivity breadth (Ethernet, Wi-Fi, Bluetooth, USB) provides flexibility in deployment—from fixed dock locations hardwired to warehouse systems to mobile scanning operations requiring wireless access. The 4.3" touchscreen supports standalone operation and job preview, reducing reliance on host systems for simple print tasks.
