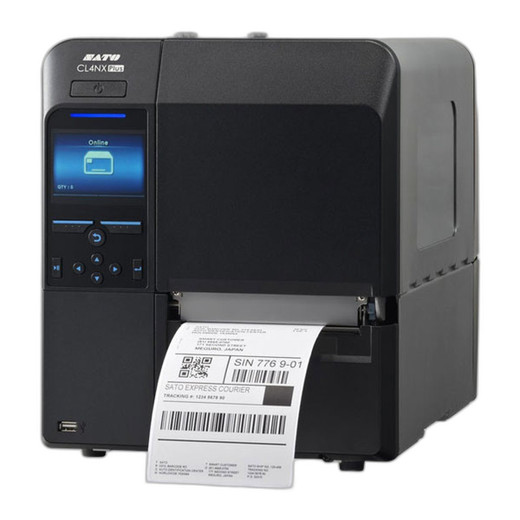

SATO CL4NX Plus 305dpi UHF RFID Industrial Thermal Transfer Printer
The SATO WWCLP2701-NAR is a high-performance industrial thermal transfer printer engineered for enterprise-grade RFID label production. Combining 305 dpi resolution with integrated UHF RFID encoding (860-960 MHz EPC C1G2), this printer delivers reliable barcode, text, and RFID inlay encoding in demanding manufacturing and supply chain environments. The robust cast aluminum frame and corrosion-resistant construction ensure durability in harsh operational conditions.
Key Features
- 305 dpi resolution at 14 ips print speed for crisp barcode and text output
- UHF RFID encoding with SATO RF Analyze auto-antenna optimization for reliable encoding across inlay types
- 4.09" maximum print width accommodating standard enterprise label formats
- 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms, fonts, and applications
- 3.5" Full-Color LCD touchscreen for intuitive configuration and monitoring
- Tool-free printhead and platen roller replacement minimizing maintenance downtime
- Multi-protocol connectivity: Ethernet, Wi-Fi, and USB 2.0
- Media flexibility: 0.87" to 5.04" widths on 1" or 3" cores; supports rolls up to 10" outer diameter
- Ribbon capacity up to 1,968 ft enabling extended production runs
- AC 100-240V universal power input with 50/60Hz support
Technical Specifications
The WWCLP2701-NAR operates across 41°F to 104°F temperature range, making it suitable for diverse industrial environments. Its compact footprint of 10.66" x 17.99" x 12.63" and 33 lb weight facilitate flexible deployment in production floors and warehouse settings. The printer supports both direct thermal and thermal transfer print methods, providing cost-effective operation for various label requirements.
RFID Capabilities
The integrated SATO RF Analyze function automatically optimizes antenna settings to ensure consistent encoding performance across different inlay geometries and material compositions. This intelligent optimization reduces failed reads and encoding errors, critical for supply chain visibility and asset tracking applications where label reliability directly impacts operational efficiency.
Applications
- UHF RFID tag encoding and verification for asset tracking and item-level visibility
- Smart label production for pharmaceutical, retail, and apparel supply chains
- Manufacturing floor RFID-enabled tracking and work-in-process management
- Automated inventory management and warehouse receiving operations
- Healthcare and hospital supply chain management with serialized label encoding
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CL4NX Plus represents SATO's commitment to integrating RFID encoding directly into the printing workflow, eliminating separate encoding steps and reducing label production complexity. The auto-antenna optimization feature addresses a common pain point in RFID operations—variable encoding success across different label substrates. Organizations implementing item-level tagging benefit significantly from this integrated approach, as encoding validation occurs during printing rather than as a downstream quality check.
The 305 dpi resolution strikes an important balance for enterprise applications, delivering sufficient clarity for barcode scanning while maintaining reasonable printing speeds at 14 ips. For companies investing in RFID infrastructure, this printer consolidates equipment requirements and simplifies operational logistics.
