Vertiv Rpdu Switched Unit Level Monitoring EC 20A 120V 1.9KW Horizontal (12) NEMA - VP5N21A1

Vertiv VP5N21A1 Switched Unit-Level Monitored Rack PDU

Overview

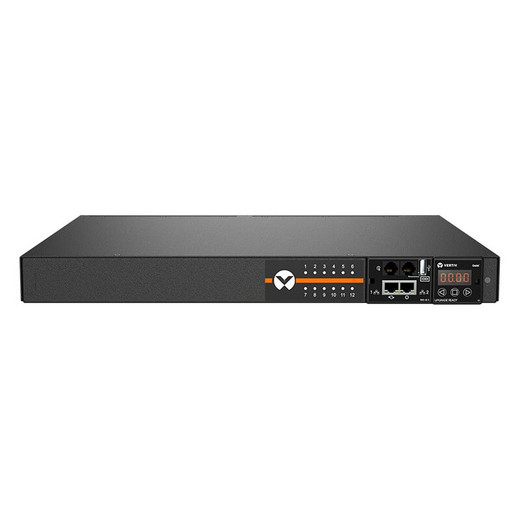

The Vertiv VP5N21A1 is a 1U horizontal rack PDU from the Geist PowerIT Switched line — a 20A, 120V unit purpose-built for data center rows and server cabinets where remote outlet control and real-time input power monitoring are non-negotiable. With 12 NEMA 5-20R receptacles, a NEMA L5-20P input plug, and 1.9kW of managed power capacity, this PDU handles the density of a fully loaded 1U shelf without requiring a separate power supply or external monitoring appliance. If you're managing racks remotely — whether across a single cage or a distributed multi-site deployment — the VP5N21A1 gives you granular switched control down to the individual outlet without a KVM console.

The unit ships as part of the Vertiv Geist switched PDU family, which spans a range of form factors and amperage ratings for rack power distribution across enterprise and colocation environments.

Key Features

• Outlet-Level Switching with Bi-Stable Latching Relays: Each of the 12 NEMA 5-20R outlets can be switched on or off independently via the network interface. Bi-stable latching relays maintain their last-set state through a power loss — load devices don't accidentally power on during a utility restoration event, which matters for sequenced boot environments and any rack with sensitive equipment.
• Input Power Monitoring at 20A / 1.9kW: Real-time input power tracking lets you monitor actual load against the 20A / 1.9kW rated capacity from a browser or SNMP manager. You'll know when a cabinet is approaching its breaker limit before a trip event, not after — critical for capacity planning in shared colocation environments.
• Dual Ethernet Ports for IP Aggregation: Two ethernet ports allow the VP5N21A1 to participate in a daisy-chained PDU network, reducing the number of IP addresses needed per cabinet row. In dense deployments with multiple PDUs per rack, this cuts switch port consumption and simplifies IP management.
• Environmental Sensor Port: A dedicated sensor port accepts temperature and humidity probes — keeping ambient rack conditions in the same monitoring dashboard as power data. Useful anywhere that thermal runaway is a real risk, including edge deployments with poor airflow and colocation racks with shared cooling.
• Power Sequencing with Time Delays: Configurable outlet-level power sequencing delays prevent inrush current spikes when bringing up a full rack simultaneously. For UPS-backed environments, this spreads the startup load and protects both the UPS and the PDU breaker from nuisance trips.
• 128x128 LCD Touchscreen: A local display means field technicians can read power data and switch outlet states without remote access — useful during initial commissioning or when the network connection is unavailable during a maintenance window.
• U-Lock and Color-Coded Receptacles: U-Lock receptacles physically retain connected cords, preventing accidental disconnection in vibration-prone environments or high-density cable runs. Color-coded outlets simplify visual identification of circuit assignments during installs and audits.
• Hot-Swappable Monitoring Device: The monitoring module is field-upgradeable and hot-swappable — you can replace or upgrade the intelligence layer without powering down connected equipment. This extends the useful life of the PDU hardware itself and allows firmware or feature updates without a maintenance window.
• TAA and UL Compliance: TAA compliance makes the VP5N21A1 eligible for federal procurement and GSA contracts. UL listing confirms the unit has been independently tested to applicable safety standards — not just self-certified. RoHS certification covers hazardous substance restrictions for EU-destined deployments.

Integration and Compatibility

The dual ethernet architecture and SNMP/IP management interface make the VP5N21A1 compatible with standard data center infrastructure management (DCIM) platforms and NMS tools that support SNMP v1/v2c/v3. The environmental sensor port pairs with compatible Geist temperature and humidity probes for integrated thermal monitoring. For facilities running mixed UPS and PDU infrastructure, the power sequencing feature coordinates startup load across the full rack. The 1U horizontal form factor fits standard 19-inch EIA racks without adapter hardware, and the NEMA L5-20P input is the industry-standard twist-lock connector for 20A branch circuits.

Frequently Asked Questions

Q: Is the VP5N21A1 TAA-compliant for government procurement?

A: Yes. The VP5N21A1 is TAA-compliant, making it eligible for federal government and GSA schedule procurement where Trade Agreements Act compliance is required.

Q: What is the maximum power capacity of the VP5N21A1?

A: The VP5N21A1 is rated at 20A / 120V with a 1.9kW (1,900W) power capacity. The unit's VA capacity is listed at 2,400 VA.

Q: Can outlets be switched independently on the VP5N21A1?

A: Yes. All 12 NEMA 5-20R outlets support independent outlet-level switching. Each outlet can be toggled on or off remotely via the network management interface. Bi-stable latching relays retain the last-set state across a power loss.

Q: What input connector does the VP5N21A1 use?

A: The input uses a NEMA L5-20P twist-lock plug, the standard connector for 20A, 120V branch circuits in rack environments.

Q: Does the VP5N21A1 support daisy-chaining multiple PDUs?

A: Yes. The dual ethernet ports support IP aggregation, allowing multiple PDUs to be networked together while consuming fewer IP addresses and switch ports per row.

Q: What warranty does the VP5N21A1 carry?

A: The VP5N21A1 is covered by Vertiv's five-year limited warranty.

Marty Allison

The VP5N21A1 is one of those PDUs I recommend specifically when a client needs outlet-level switched control but doesn't want to give up 2U to get it — the 1U horizontal form factor with all 12 NEMA 5-20R outlets switched independently is a real differentiator in dense cabinet builds. The bi-stable latching relay design is the detail most buyers overlook until they've lived through an unplanned utility restoration that cycled every server in the rack simultaneously.

Technical Highlights:

• Bi-Stable Latching Relays: Outlets hold their last switched state through a power event — critical in sequenced-boot environments where you don't want all 12 outlets energizing simultaneously on utility restoration. This is a hardware protection, not a firmware setting.
• Dual Ethernet / IP Aggregation: In a 4-PDU-per-row cabinet layout, daisy-chaining via the two ethernet ports reduces your IP and switch-port overhead per row by up to 75% compared to standalone-managed PDUs — meaningful at scale in a multi-row data center build.
• Hot-Swappable Monitoring Module: Field upgradeable without powering down connected loads. If Vertiv releases a firmware or hardware revision to the intelligence module, you're not scheduling a rack maintenance window — you swap the module during normal operations.

Deployment Considerations:

• The NEMA L5-20P input requires a dedicated 20A, 120V twist-lock branch circuit. Verify your PDU panel has available 20A breakers before ordering — this is not a standard 5-15P or IEC C14 input and cannot be field-converted without a new whip.
• The 1.9kW (1,900W) rated capacity means you're running at roughly 80% of the 20A / 120V theoretical maximum — correctly derated for continuous load. Don't plan to fill all 12 outlets with high-draw devices; budget your connected load against the 1.9kW figure, not the 2,400 VA rating.

This PDU is the right fit for colocation cages, enterprise server rooms, and edge deployments where remote outlet cycling and granular power visibility are required and cabinet space is at a premium. It's particularly well-suited for managed service providers running mixed client equipment in shared racks who need outlet-level isolation and power accountability per tenant.
