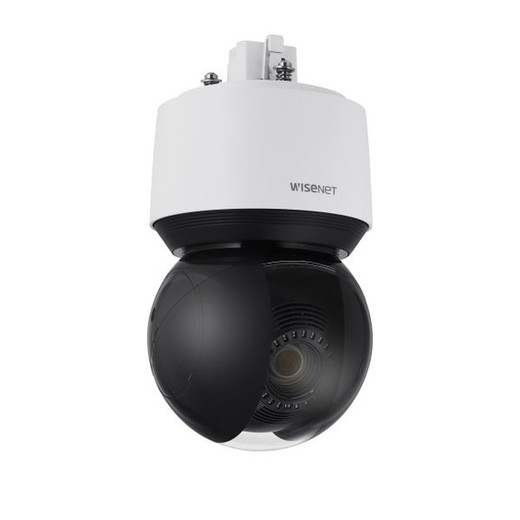

Hanwha XNP-6400 RB 2MP PTZ Network Camera

Hanwha XNP-6400 RB 2MP PTZ Network Camera

The Hanwha XNP-6400 RB is a professional-grade PTZ network camera engineered for long-range surveillance in demanding outdoor and indoor environments. Built with a 170mm 40x optical zoom lens, 2MP resolution at 60 fps, and extreme 150dB WDR capability, this vandal-resistant camera delivers exceptional performance across critical infrastructure, perimeter security, traffic enforcement, and large-area monitoring applications where environmental durability and extended focal range are essential.

Key Features

• 2MP Resolution at 60 FPS: Captures high-frame-rate video for smooth motion analysis and forensic-grade temporal accuracy in surveillance workflows.
• 170mm 40x Optical Zoom Lens: Delivers extended focal length for long-range target identification and object clarity without digital quality loss or interpolation artifacts.
• Extreme 150dB WDR: Forensic-grade wide dynamic range processing handles simultaneous extreme backlight and shadowed areas, eliminating washout in scenes with direct sunlight and deep shadows.
• Day & Night ICR (Intelligent Color Recognition): Automatically switches between color (day) and monochrome (night) modes to maximize visibility and detail across 24-hour cycles.
• Intelligent Analytics with Object Auto-Tracking: Built-in Person and Vehicle detection enables automated target lock and tracking, reducing manual monitoring burden and accelerating incident response.
• IR Night Vision: Enhanced low-light capability ensures continuous surveillance in 24/7 security deployments.
• IP66 & IK10 Rated: Weatherproof and vandal-resistant design withstands harsh outdoor conditions, dust, water jets, and impact.
• NEMA 4X & NEMA-TS 2 Compliance: Meets industrial environmental standards for extreme temperature and corrosive environments.

Technical Specifications

• Form Factor: Fixed PTZ
• Sensor Resolution: 2 MP at 60 fps
• Lens: 4.25mm 170mm, 40x optical zoom
• Video Compression: H.265 for efficient bandwidth and storage utilization
• Power: PoE++ (HPoE) — High Power over Ethernet for extended cable runs and on-device heating
• Protection Rating: IP66 (dust/water ingress) and IK10 (vandal resistance)
• Night Vision: IR with Intelligent Color Recognition switching
• Dynamic Range: 150dB WDR
• VMS Compatibility: ONVIF-compliant systems for open-architecture integration

Ideal Applications

• Perimeter and boundary security at critical infrastructure sites
• Traffic enforcement and intersection monitoring
• Long-range object identification and forensic detail capture
• Large outdoor areas requiring extended focal range and 24/7 visibility
• Harsh environments requiring IP66 weatherproofing and IK10 impact resistance
• Intelligent surveillance workflows leveraging person/vehicle auto-tracking

Karl Wilson

The XNP-6400 RB combines professional PTZ capabilities with enterprise-grade analytics in a ruggedized form factor. The 40x optical zoom and 2MP sensor at 60 fps balance frame rate stability with extended focal range—critical for long-distance identification tasks. The extreme 150dB WDR and Day/Night ICR switching ensure consistent image quality across backlit and low-light scenes without manual intervention.

H.265 compression reduces bandwidth and storage overhead by up to 50% compared to H.264, making this camera cost-effective for large deployments. PoE++ power delivery eliminates auxiliary power runs, lowering installation complexity. ONVIF compliance ensures VMS interoperability, while IP66/IK10 ratings and NEMA environmental certifications make the XNP-6400 RB suitable for industrial-grade, outdoor 24/7 surveillance where uptime and durability are non-negotiable.
