APC by Schneider Electric Rack Access Control - Number of Rack UNIT:1U - NBACS125

APC by Schneider Electric NBACS125 NetShelter Rack Access Control Station

Overview

The APC by Schneider Electric NBACS125 is a 1U rack-mounted access control station engineered for NetShelter SX enclosures where physical security, environmental monitoring, and remote visibility need to converge in a single managed appliance. If you're running a data center or IDF/MDF room and need to enforce who opens which rack — and get alerted when temperature, humidity, smoke, or fluid anomalies appear — this controller handles both functions without requiring a separate environmental monitoring unit or a standalone door controller. It ships with a proximity card reader and door sensor, so you can commission basic card-in/card-out access the same day it's racked.

Designed as part of the APC by Schneider Electric NetBotz product line, the NBACS125 communicates over A-Link and SNMP — the same protocols used across the broader NetBotz ecosystem — which means it integrates cleanly into existing access control and DCIM infrastructure without requiring proprietary middleware. For integrators managing multi-enclosure data halls, up to six Rack Sensor Pod 150 units can be daisy-chained off a single NBACS125, extending environmental coverage across an entire row without adding management overhead.

Key Features

• 6 Universal Sensor Ports: Supports door contact, dry contact, humidity, smoke, fluid spot leak, temperature, and vibration sensors — all on one controller. In a mixed-use server room where you need both physical intrusion detection and environmental alerting, this eliminates the need for a dedicated environmental monitor alongside your access controller.
• Proximity Card Reader Included: The NBACS125 ships with a proximity reader and proximity card, so there's no separate reader purchase required for single-rack deployments. Card-based access means you get an auditable entry log rather than relying on key cylinders that offer no forensic trail.
• A-Link + SNMP Communication: SNMP integration lets your existing NMS or DCIM platform poll the controller directly — rack access events, door state, and sensor readings can all feed into the same alerting workflow you use for network gear. A-Link connectivity ties it natively into the NetBotz appliance hierarchy.
• Up to 6 Sensor Pod 150 Connections: Expand environmental monitoring across up to six Rack Sensor Pod 150 units from a single NBACS125. For high-density rows where each cabinet needs its own temperature and humidity readings, this architecture avoids per-rack management addresses and keeps your monitoring footprint manageable.
• Relay Output + Modbus RS-485 + Alarm Beacon Output: The onboard relay output supports door locking hardware; the Modbus RS-485 output enables integration with building management systems; and the alarm beacon output drives external visual or audible alerts. This three-channel external I/O means the NBACS125 can participate in a broader facility automation loop, not just sit as a standalone rack controller.
• Temperature Accuracy ±1°C (15–50°C): Sensor accuracy at ±1°C across the full operating range means you can set tight thermal thresholds without chasing false positives. In a hot-aisle/cold-aisle layout where inlet temperatures matter for cooling efficiency, that precision is worth having.
• 1U Rack Mount, 2.80 lb: At under three pounds and one rack unit, it installs in the enclosure it's protecting without consuming meaningful space or adding load to the rack weight budget. Front-of-rack mounting keeps the proximity reader accessible at door level.
• Operating Range 0–10,000 ft Altitude, 0–95% RH: Covers elevated data center sites and high-humidity environments. If you're commissioning racks in a facility at altitude — a mountain-region colocation, for example — the NBACS125 operates without derating across that range.

Integration & Compatibility

The NBACS125 is purpose-built for NetShelter SX enclosures and the NetBotz monitoring ecosystem. The included door sensor and proximity reader wire directly to the controller; the six universal sensor ports accept the full range of APC universal sensors (temperature, humidity, fluid spot leak, smoke, vibration, dry contact) without adapters. For facilities already running NetBotz appliances, the A-Link protocol integrates this controller into the existing device hierarchy without additional licensing. SNMP support means your NMS — whether that's an existing DCIM platform or a general-purpose network monitoring tool — can receive traps and poll OIDs from the NBACS125 alongside your switches and PDUs. The Rack Sensor Pod 150 is the verified compatible expansion pod for this unit; verify pod firmware compatibility with your NetBotz appliance version before deployment. For sites requiring structured cabling and network switching to support the management network, plan a dedicated OOB management VLAN — mixing SNMP trap traffic with production workloads is a common commissioning oversight on dense monitoring deployments.

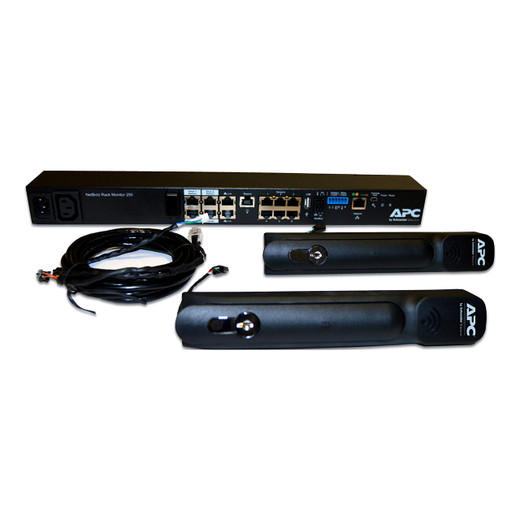

What's in the Box

• 1x NBACS125 Access Controller (1U)
• 1x Proximity Card Reader
• 1x Proximity Card
• 1x Door Sensor
• 1x Lock Handles
• 1x Rack Mounting Brackets
• 1x Installation Guide
• 1x User Manual
• Cable Ties

Frequently Asked Questions

Q: What enclosures is the NBACS125 compatible with?

A: The NBACS125 is designed for NetShelter SX enclosures and integrates with the APC NetBotz monitoring ecosystem via A-Link and SNMP. It is not a universal rack controller — confirm enclosure compatibility before ordering for non-NetShelter deployments.

Q: How many environmental sensors can the NBACS125 support?

A: The NBACS125 has 6 universal sensor ports supporting door contact, dry contact, humidity, smoke, fluid spot leak, temperature, and vibration sensors. It also supports connection of up to 6 Rack Sensor Pod 150 units for expanded coverage across multiple cabinets.

Q: Does the NBACS125 include a proximity card reader, or is that purchased separately?

A: The proximity card reader and one proximity card are included in the box. You do not need to purchase a separate reader for a basic single-rack deployment.

Q: What communication protocols does the NBACS125 use?

A: The NBACS125 communicates via A-Link (for NetBotz ecosystem integration) and SNMP (for NMS/DCIM integration). There is no mention of IP-based web interface protocols in the available specifications — verify management interface requirements against your DCIM platform before deployment.

Q: What external outputs does the NBACS125 provide for integration with building systems?

A: The unit includes one relay output (for door locking hardware), one Modbus RS-485 output (for BMS integration), and one alarm beacon output (for external visual or audible alerting). This allows the NBACS125 to participate in broader facility automation and alerting workflows.

Q: What are the operating temperature and humidity limits for the NBACS125?

A: The NBACS125 operates from 32°F to 122°F (0°C to 50°C) ambient with 0–95% relative humidity and up to 10,000 ft altitude. Storage range extends from 5°F to 149°F (-15°C to 65°C) at up to 50,000 ft.

Marty Allison

The NBACS125 is the kind of device that earns its rack unit by doing two jobs at once — rack access control and environmental monitoring — without requiring separate management infrastructure for each. The six universal sensor ports are the specification I'd highlight first: temperature accuracy at ±1°C across the 15–50°C range means you can set 35°C inlet alerts without constant nuisance trips, and the addition of fluid spot leak and smoke detection on the same controller means a single SNMP trap destination handles both physical intrusion and environmental risk for that enclosure.

Technical Highlights:

• 6 Universal Sensor Ports: Handles the full APC universal sensor family — temperature (±1°C), humidity, smoke, fluid spot leak, vibration, and dry contact — eliminating a standalone environmental monitoring appliance in space-constrained deployments.
• Rack Sensor Pod 150 Expansion (up to 6 pods): A single NBACS125 can anchor environmental monitoring for an entire six-cabinet row via Pod 150 daisy-chain, keeping the management address count flat even as physical coverage grows.
• Relay + Modbus RS-485 + Alarm Beacon Outputs: Three external I/O channels let the NBACS125 drive door hardware, feed a BMS, and trigger local alerting independently — useful when a facility's access control, DCIM, and BAS run on separate platforms that all need to see rack events.

Deployment Considerations:

• The NBACS125 is a NetShelter SX-specific product — the mounting hardware and A-Link topology are tuned to that enclosure family. Deploying it in a third-party cabinet without verifying mechanical and protocol compatibility is the most common commissioning mistake on first-time deployments.
• SNMP is the integration path for NMS/DCIM platforms, but the specs don't document a standalone web UI — plan your management network and SNMP community strings before racking, because there's no fallback console access described in the available documentation.

For a colocation operator or enterprise IT team managing a row of NetShelter SX enclosures — particularly in a facility where physical security audits require card-based entry logs and environmental SLAs require temperature and humidity trending — the NBACS125 is a focused, well-kitted solution that installs in a day and feeds the monitoring stack you already have.
