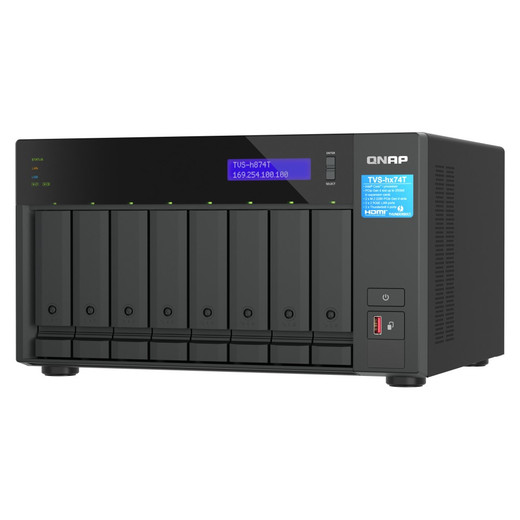

QNAP Ultra-high Speed 8 BAY Thunderbolt 4 - TVS-H874T-I9-64G-US

QNAP TVS-H874T-I9-64G-US 8-Bay Thunderbolt 4 NAS with Intel Core i9

The TVS-H874T-I9-64G-US is a high-performance 8-bay ZFS-based NAS built around a 12th-generation Intel® Core™ i9 16-core / 20-thread processor — a meaningful step up for creative professionals, video production studios, and small-to-midsize IT environments that need fast local storage, reliable data integrity, and flexible PCIe expansion in a single desktop appliance. With dual Thunderbolt™ 4 ports, dual 2.5GbE, dual M.2 NVMe slots, and dual PCIe expansion bays, this is one of the most connectivity-dense desktop NAS platforms available at this price point. Browse the full QNAP storage catalog to compare the TVS-h874T family and related models.

Key Features

• Intel® Core™ i9 16-Core / 20-Thread CPU: The 12th-gen i9 with its 16 cores and 20 threads handles simultaneous workloads that would stall a lighter NAS — think 4K/8K video transcoding running alongside active backup jobs, VM instances, and surveillance recording without meaningful queuing delay. For a production environment that can't afford a dedicated workstation and a separate NAS, this processor closes that gap.
• 64GB DDR4 RAM: 64GB pre-installed is enough headroom to run multiple containers, virtual machines, and ZFS ARC cache simultaneously. ZFS in particular benefits from generous RAM — a larger ARC (Adaptive Replacement Cache) means frequently-accessed data stays in memory rather than spinning up drives on every read, which directly translates to lower latency for concurrent users.
• Dual Thunderbolt™ 4 Ports: Thunderbolt 4 delivers up to 40Gbps per port — fast enough to saturate even an all-NVMe array when transferring large media files from a connected Mac or PC workstation. For video editors moving multi-terabyte project files, this eliminates the bandwidth ceiling that 10GbE NAS solutions still impose. Daisy-chaining Thunderbolt peripherals (external displays, docks, capture devices) through the NAS is also supported.
• 2x M.2 NVMe SSD Slots for Caching: Installing NVMe SSDs in the two onboard M.2 slots enables SSD caching in front of the spinning-disk array. For mixed workloads — frequent small-block reads/writes alongside bulk sequential storage — caching absorbs the random I/O that HDDs handle poorly, keeping the array responsive under real production conditions.
• 2x PCIe Expansion Slots: Two PCIe slots let you extend the platform well beyond its stock configuration. Add a 10GbE or 25GbE network card to serve a larger team over the LAN, or install an additional M.2 NVMe card for a dedicated all-flash pool. This is the kind of forward-looking flexibility that extends the useful life of a $4,499 NAS across multiple infrastructure cycles. See the network switches category for compatible uplink hardware.
• Dual 2.5GbE Ethernet: Two 2.5GbE ports support link aggregation (LACP) for up to 5Gbps of combined throughput to a compatible switch — useful for multi-user file sharing environments where a single 1GbE port would become the bottleneck long before the drives do. For dedicated single-workstation Thunderbolt 4 use, the 2.5GbE ports handle management and secondary client traffic cleanly.
• Intel® UHD Graphics 770 (Built-in GPU): The integrated GPU enables hardware-accelerated transcoding through QNAP's multimedia applications. Streaming 4K footage to multiple clients without re-encoding on the CPU keeps processor headroom available for other services running concurrently — a practical benefit for environments using the NAS as a media server alongside its primary storage role.
• 8-Bay Drive Capacity with ZFS Foundation: Eight large-format drive bays support a range of RAID and ZFS pool configurations — from RAIDZ2 (dual-parity, comparable to RAID 6) for maximum fault tolerance, to RAID 10 for write performance. ZFS adds checksumming at the block level, which catches silent data corruption that traditional RAID controllers miss entirely. For long-term archival or master media storage, that data integrity guarantee matters more than raw throughput numbers. Explore NAS storage solutions for drive and accessory pairing options.

Integration and Compatibility

The TVS-H874T-I9-64G-US runs QNAP's QTS Hero operating system (the ZFS-based variant), which supports a broad application ecosystem: container stations (Docker/LXC), virtual machine manager (QEMU/KVM), surveillance station for IP camera recording, and a range of media and backup applications. The two PCIe slots accept QNAP-validated expansion cards, including 10GbE/25GbE NICs, additional M.2 NVMe adapters, and Fibre Channel HBAs for SAN integration. Thunderbolt 4 connectivity makes this NAS directly compatible with macOS and Windows workstations without requiring a network switch in the path — ideal for small creative studios where direct-attach speed is the priority. For teams requiring a guide to NAS storage selection, the choice between the i7 12-core and i9 16-core variants in this family comes down to sustained concurrent workload requirements rather than peak single-task speed.

Frequently Asked Questions

Q: What is the difference between the i9 and i7 versions of the TVS-h874T?

A: The i9 variant ships with a 16-core / 20-thread processor versus the i7's 12-core / 20-thread configuration. The i9 provides more physical cores for sustained parallel workloads — simultaneous VM execution, transcoding, and container services — while the i7 is the appropriate pick for lighter concurrent loads at a lower price point.

Q: Can the TVS-H874T-I9-64G-US be used as a surveillance NVR?

A: Yes. QNAP's Surveillance Station application supports IP camera recording and live monitoring. The 8-bay capacity, combined with the i9 processor and 64GB RAM, provides the compute and storage headroom to run a meaningful number of camera channels alongside other NAS services simultaneously.

Q: Does Thunderbolt 4 work with both Mac and Windows workstations?

A: Thunderbolt 4 is cross-platform compatible with any Thunderbolt 4 or USB4-equipped Mac or Windows PC, enabling direct-attach speeds up to 40Gbps per port without requiring a network switch in the path.

Q: What RAID or storage pool options does the 8-bay configuration support?

A: Running QTS Hero (the ZFS-based OS), the TVS-H874T-I9-64G-US supports RAIDZ, RAIDZ2, RAIDZ3, RAID 0/1/5/6/10, and JBOD configurations. ZFS pools add block-level checksumming to catch silent data corruption regardless of RAID level selected.

Q: Can the M.2 NVMe slots be used for primary storage instead of caching?

A: The two onboard M.2 NVMe slots are primarily designed for SSD caching (Qtier) to accelerate the main HDD array. Dedicated all-flash pools can be configured using a PCIe-based NVMe expansion card installed in one of the two available PCIe slots.

Q: What expansion cards are compatible with the PCIe slots?

A: The two PCIe slots accept QNAP-validated expansion cards including 10GbE and 25GbE network cards, additional M.2 NVMe adapters, and Fibre Channel HBAs. Consulting QNAP's official compatibility list before purchasing expansion cards is recommended to confirm supported configurations.

Karl Wilson

The TVS-H874T-I9-64G-US is the configuration I'd reach for when a creative team or small post-production facility needs direct-attach NVMe-class speed AND the storage depth of an 8-bay array in one box. The 16-core / 20-thread i9 processor is the differentiator here — not because burst tasks need it, but because sustained parallel workloads (live camera ingest, background backup, active VM, concurrent client access) all compete for the same CPU simultaneously, and the i9's additional physical cores prevent that competition from producing visible latency spikes.

Technical Highlights:

• Thunderbolt 4 at 40Gbps per port: Two ports means you can connect a primary editing workstation at full 40Gbps while the second port serves a secondary machine or a Thunderbolt dock — no switch required, no 10GbE bottleneck, real wire-speed access to the array from the desktop.
• Dual M.2 NVMe + Dual PCIe: The two M.2 slots handle SSD caching today; the two PCIe slots let you add a 10GbE/25GbE card for LAN clients or a dedicated NVMe pool card tomorrow. The platform grows without a hardware replacement cycle.
• 64GB RAM with ZFS ARC: ZFS assigns free RAM to its Adaptive Replacement Cache automatically. At 64GB pre-installed, there's genuine headroom for a meaningful ARC alongside VM RAM allocations — on a heavily read-biased workflow, this keeps frequently-accessed project assets effectively in memory.

Deployment Considerations:

• The i9 model ships at $4,499 and the integrated Intel UHD Graphics 770 handles hardware transcoding; if your deployment is purely storage with no media serving or VM workloads, the i7 12-core variant covers the same connectivity at lower cost — confirm your concurrent workload requirements before ordering.
• The 2x 2.5GbE ports are adequate for management and secondary clients, but LAN-primary deployments serving more than two or three simultaneous heavy users will want a 10GbE expansion card in one of the PCIe slots from day one — plan that cost into the initial BOM.

Best-fit deployment: a 4–8 person video production studio or broadcast post house running DaVinci Resolve or Premiere on Mac/Windows workstations that need direct-attach 40Gbps scratch storage plus centralized project archiving, surveillance recording via Surveillance Station, and room to add 10GbE LAN access as the team grows — all without a dedicated server rack.
