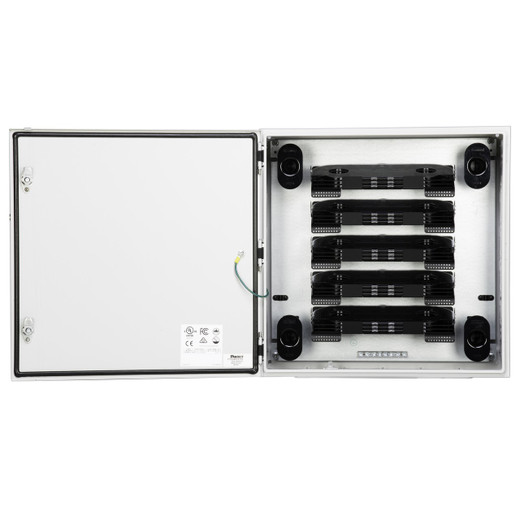

Panduit FTE24A1A1 Pre-Configured 288-Fiber Termination Enclosure
Overview
The Panduit FTE24A1A1 is a pre-configured 288-fiber termination enclosure from the Panduit IndustrialNet™ line, designed for industrial automation environments where fiber needs to be housed, organized, and fully protected in a single deployable unit. At 24"x24"x12" in powder-coated mild steel, this is a purpose-built solution for industrial fiber termination enclosures where getting a complete, standards-verified assembly — not a field-assembled patchwork — is the priority. It ships as a system: modules, mounting hardware, slack managers, and grounding kit included.
Specifiers and integrators selecting fiber infrastructure for harsh industrial zones will find this enclosure engineered to UL 508A, NEMA 4/12, and IP66 — the combination that matters when a control room or network zone system is subject to dust, coolant spray, or hose-down cleaning.
Key Features
- 288-Fiber Capacity (validated to 360 fibers): The enclosure accommodates up to fifteen 24-fiber fusion splice modules (FOSMs), giving you a validated upper bound of 360 fibers — so you can deploy at 288 today and have room to expand within the same chassis without a forklift upgrade.
- UL 508A / NEMA 4/12 / IP66 Ratings: UL 508A certifies the enclosure for industrial control panel use. NEMA 4/12 covers indoor wash-down and dust-tight environments. IP66 adds rain and high-pressure jet resistance — between the three, this unit covers the harshest indoor industrial zone deployments without requiring additional environmental housings.
- Powder-Coated Mild Steel Construction: The enclosure body resists corrosion and mechanical impact — appropriate for factory floors and machine rooms where painted sheet metal alternatives tend to rust or dent over time.
- Pre-Configured as a Complete System: Fusion splice modules, approved mounting brackets, slack managers (up to 3 meters of slack per run), and a grounding kit ship with the enclosure. That eliminates sourcing individual components separately and reduces installation time on the rack.
- Slack Management Built In: Accommodating up to 3 meters of fiber slack per run inside the enclosure means technicians can re-splice without pulling new cable — a real operational advantage in facilities where cable runs are inaccessible after commissioning.
- Rack-Mount Form Factor, 24"x24" Footprint: At 609.6mm x 609.6mm, the FTE24A1A1 fits standard industrial rack bays. Confirm your rack's available depth (12" depth on this unit) before ordering — some shallow racks won't accommodate the full enclosure body.
- Grounding Kit Included: Industrial environments with high EMI require proper fiber enclosure grounding. The included kit ensures the chassis meets bonding requirements without a separate field procurement step.
Integration and Compatibility
The FTE24A1A1 is designed for industrial automation networking applications — factory backbone fiber runs, machine network zone terminations, and any deployment where a standards-compliant fiber splice point is required in a non-office environment. The FOSM-based internal architecture is compatible with Panduit's 24-fiber fusion splice module ecosystem. Verify module part numbers with Panduit's current FOSM catalog before specifying a high-fiber-count build above 288.
Frequently Asked Questions
Q: What is the maximum fiber count the FTE24A1A1 can support?
A: The enclosure is validated to accommodate up to 360 fibers using fifteen 24-fiber fusion splice modules (FOSMs). The pre-configured build supports 288 fibers.
Q: What environmental ratings does the FTE24A1A1 carry?
A: The FTE24A1A1 meets UL 508A, NEMA Type 4/12, and IP66 ratings — covering industrial control panel use, wash-down environments, and high-pressure jet resistance.
Q: What is included in the box with the FTE24A1A1?
A: The enclosure ships as a pre-configured system including fiber splice modules with approved mounting brackets, slack managers (up to 3 meters of slack capacity), and a grounding kit.
Q: Can the FTE24A1A1 be rack-mounted?
A: Yes. The enclosure is designed for rack mounting with a 24"x24"x12" (609.6mm x 609.6mm) form factor. Verify rack bay depth accommodates the 12" enclosure depth before installation.
Q: What material is the FTE24A1A1 enclosure body made from?
A: The enclosure is constructed from powder-coated mild steel, providing corrosion and impact resistance suitable for industrial environments.
The FTE24A1A1 is the enclosure I reach for when a project spec requires a validated, ready-to-install fiber splice point in an industrial zone — not a field-assembled solution. The triple rating stack (UL 508A + NEMA 4/12 + IP66) is what closes the loop on inspection sign-off in facilities that run wet or dusty processes. Most enclosures carry one or two of those ratings; carrying all three means this unit passes the environmental checklist without a workaround.
Technical Highlights:
- 360-Fiber Validated Capacity: Pre-configured at 288 fibers (twelve FOSMs), but the chassis validates to 360 via fifteen modules — you get three modules of headroom before needing a second enclosure.
- 3-Meter Slack Managers: Three meters of managed slack per run is enough to re-splice on-site without pulling cable — critical in conduit-heavy industrial installs where re-pulling is measured in hours, not minutes.
- IP66 + NEMA 4/12 Dual Rating: IP66 covers outdoor rain and jet wash; NEMA 4/12 adds indoor oil and coolant resistance. Together they qualify this enclosure for machine rooms and process areas where single-rating housings fall short.
Deployment Considerations:
- At 12" deep, confirm rack bay depth before ordering — shallow industrial racks (under 12") will not physically accommodate this enclosure without extension brackets.
- The enclosure ships with Panduit-specified FOSMs and mounting hardware; substituting third-party splice modules may void the UL 508A listing for the pre-configured assembly. Stick with Panduit FOSMs if UL compliance on the finished enclosure matters to your AHJ.
This enclosure is the right call for manufacturing plant network zone builds, automated warehouse backbone fiber termination points, and any ICS/SCADA deployment where the fiber splice point sits inside the machine envelope and needs to survive the same environment as the equipment it connects.
