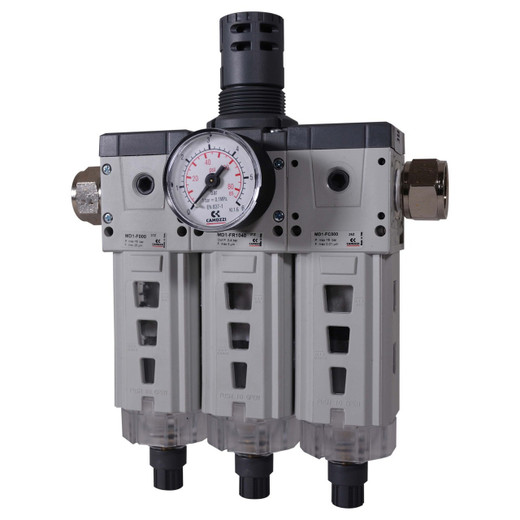

Pelco NXFIGRU2 NX Series Compressed Air Filtering Group

Pelco NXFIGRU2 NX Series Compressed Air Filtering Group

The Pelco NXFIGRU2 is a compressed air filtering group designed specifically for Pelco NX Series air-barrier camera housings. This essential accessory removes oil and water contaminants from compressed air supplies before reaching the housing front window, ensuring optimal optical clarity and extended maintenance intervals.

Key Features

• Removes oil and water contaminants from compressed air
• Prevents optical path contamination
• Extends window cleaning intervals
• Compatible with NX Series housings equipped with air barrier option (ONXAB2)
• Easy inline installation between air source and housing
• Replaceable filter elements with site-based maintenance scheduling
• NDAA Section 889 compliant for government installations

Technical Specifications

• Product Type: Camera Housing Accessory
• Classification: Accessory
• Part Number: NXFIGRU2
• Warranty: 5-year Warranty

Installation and Maintenance

Install the NXFIGRU2 in the compressed air supply line between your air source and the NX Series housing. Filter element replacement follows a maintenance schedule based on local air quality conditions. Regular filter maintenance ensures consistent performance and prolongs the life of your camera optics.

Ideal Applications

The NXFIGRU2 is essential for commercial and industrial surveillance deployments where NX Series air-barrier housings are used in challenging environmental conditions. It is particularly valuable in dusty, humid, or contaminated air environments where optical clarity is critical to surveillance performance.
