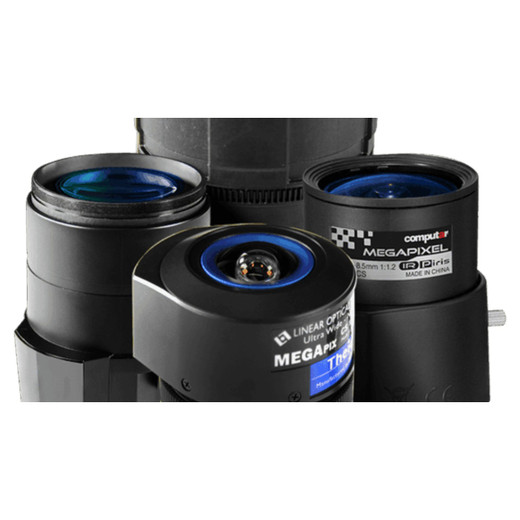

Pelco AG3Z2812KCS-MPWIR-MSI 2.8-12mm MP IR Lens

Pelco AG3Z2812KCS-MPWIR-MSI 2.8-12mm MP IR CS Lens

The Pelco AG3Z2812KCS-MPWIR-MSI is a precision megapixel varifocal CS-mount lens engineered for professional surveillance systems requiring consistent image quality across day and night operation. With a 2.8–12mm focal range and integrated IR correction, this lens resolves the full pixel count of 2MP and 3MP sensors without edge softening, delivering sharp detail across the frame.

Key Features

• 2.8–12mm varifocal range with 4.3:1 zoom ratio for moderate wide-angle to mid-telephoto coverage
• IR correction maintains focus consistency between daylight and infrared modes, eliminating focus shift
• CS-mount design compatible with Pelco Sarix Pro 3 Box Camera and modular camera systems
• Optimized for 2MP and 3MP megapixel sensor resolution without optical distortion
• NDAA Section 889 compliant for government and regulated facility deployments

Technical Highlights

The integrated IR correction preserves focus accuracy when cameras switch to infrared illumination, a critical requirement for continuous surveillance in low-light and nighttime conditions. The 4.3:1 zoom ratio provides flexible framing options for moderate wide-angle through mid-telephoto scenes. For applications requiring extended reach, Pelco offers the YV2.8X28SR4A variant with 2.8–28mm range and 10:1 zoom ratio.

Applications

Ideal for commercial and industrial surveillance installations, facility monitoring, and enterprise security deployments. Backed by a 1-year warranty and supported through Pelco's global service network and specialty distributor channels.
