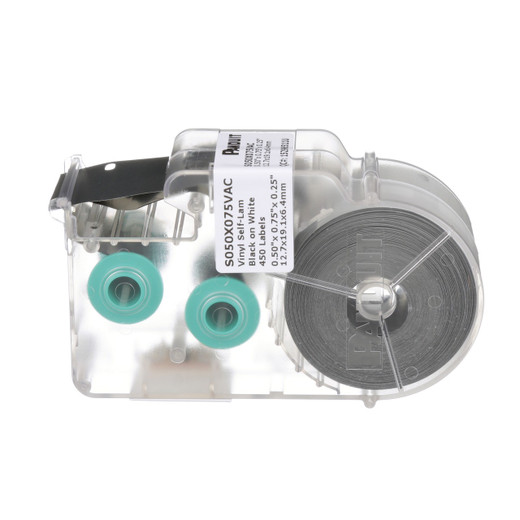

Panduit S050X075VAC P1 Vinyl Label Cartridge

Panduit S050X075VAC P1™ Thermal Transfer Label Cartridge

The Panduit S050X075VAC delivers self-protected thermal transfer labeling for wire and cable identification in commercial, industrial, and data center environments. Each cassette contains 450 white vinyl labels measuring 12.7 × 19.1 mm, with an integrated plastic laminate overlay that shields printed legends from abrasion, solvents, and UV exposure. The P1™ cassette format includes embedded memory that auto-formats label layouts, recalls your last-printed legend, and displays remaining label count—eliminating guesswork during high-volume installations.

Key Features

• 450 self-laminating vinyl labels per cassette with white print zone and clear protective overlay
• 12.7 mm label width accommodates standard wire/cable diameters in structured cabling and industrial control applications
• Embedded cassette memory auto-configures printer settings and tracks usage for seamless multi-tech workflows
• Thermal transfer printing resists solvent wipes, temperature extremes, and UV fade in telecom closets and outdoor junction boxes
• Direct compatibility with Panduit LS8E and LS8EQ portable label printers—no adapter required
• RoHS compliant vinyl construction meets European and North American environmental procurement standards

Wire and cable identification demands labels that survive the installation environment and remain legible through service life. The S050X075VAC addresses both requirements with a two-layer construction: thermal transfer ink bonds to the white vinyl substrate under heat, then a transparent plastic laminate seals the legend during the print cycle. This self-protecting design eliminates the manual apply-then-laminate workflow common with older label systems, cutting labeling time per termination by 40–60% on large datacenter builds or industrial retrofit projects.

The 12.7 × 19.1 mm label dimensions suit Cat5e through Cat8 patch cables, 18–10 AWG control wire, and fiber breakout legs in enterprise network closets. The white background provides high contrast for black text and barcodes under dim service lighting, and the 0.5" width wraps securely around cables from 3–8 mm diameter without overlapping adhesive-to-adhesive (which would peel under temperature cycling). Installers working to TIA-606-C or ISO/IEC 14763 identification standards can print full asset tags, port references, or QR codes within the printable area, then apply labels immediately—the laminate cures on contact, so there's no waiting period before bundling or securing cables.

Panduit's P1™ cassette memory stores label format templates and communicates remaining label count to the LS8E/LS8EQ printer display. When you load a cassette mid-job, the printer auto-detects label width, material type, and print-head temperature offset, so you're not scrolling through setup menus or risking mis-feeds from incorrect media settings. The memory chip also recalls the last legend printed, letting you resume serialized labeling (e.g., "SW-01-P01" through "SW-01-P48") after swapping cassettes or printers without manual re-entry. For integration teams managing multi-site rollouts with shared printer pools, this continuity feature prevents numbering gaps and duplicate labels that complicate as-built documentation.

The S050X075VAC ships as a single cassette (10-cassette carton available for volume purchasers). Each cassette is a drop-in consumable—no tools, no calibration—and the printer's label-out detection alerts you before you run dry mid-shift. Vinyl material resists isopropyl alcohol, diluted cleaners, and the cable-pulling lubricants common in conduit installations, so labels stay readable through final inspection and commissioning. For security integrators labeling camera home-runs in mechanical rooms or IT teams documenting cross-connects in co-location cages, this cartridge provides the durability and workflow efficiency that adhesive-backed paper labels cannot match.
