Panduit F92RLU1ZNONM047 OS2 2F 2MM PC LSZH LC Uniboot/cs Connea

Panduit F92RLU1ZNONM047 OS2 2F 2MM PC LSZH LC Uniboot/cs Connea

Overview

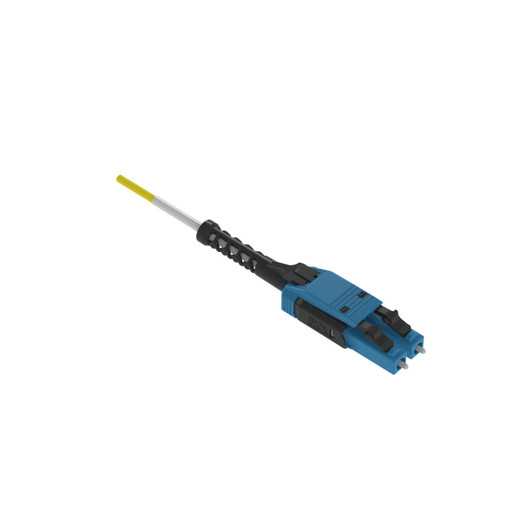

The Panduit F92RLU1ZNONM047 is a 154.2-foot (47-meter) OS2 singlemode, 2-fiber, 2mm diameter, Low Smoke Zero Halogen (LSZH) rated patch cable. It terminates with LC Duplex connectors on both ends, featuring PC (Physical Contact) polish for optimal signal integrity. This cable is engineered for high-bandwidth data transmission in environments where fire safety and minimal smoke emission are critical, such as data centers, telecommunications rooms, and equipment distribution areas requiring rapid, pre-terminated fiber infrastructure.

Compatibility

This Panduit OS2 fiber optic cable is compatible with all standard LC Duplex fiber optic transceivers and network equipment utilizing OS2 Singlemode fiber infrastructure. It is suitable for integration into systems compliant with TIA-568.3-D, ISO/IEC 11801, and ITU-T G.652.D standards, commonly found in enterprise networking and data center backbone applications.

Installation Notes

The LSZH jacket material requires careful handling during installation to avoid damage, as it offers enhanced fire safety but may be less abrasion-resistant than standard PVC jackets. Ensure connectors are clean before mating to prevent signal degradation. The uniboot/cs construction simplifies cable management by allowing two fibers to share a single cable jacket, reducing bundle size and improving airflow. Minimum bend radius for OS2 2mm cable is typically 20mm (0.79 inches) when un-loaded and 40mm (1.57 inches) when loaded.
