Panduit F92ERANB1SNM001 OS2 Fiber Patch Cord

Overview

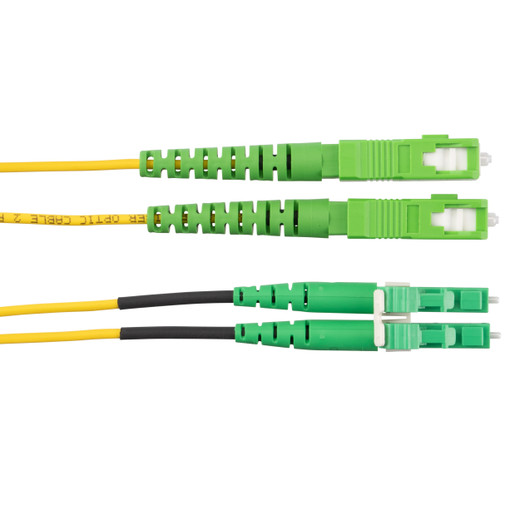

The Panduit F92ERANB1SNM001 is a 1-meter OS2 duplex fiber optic patch cord designed for reliable data transmission in network infrastructure. This cord features a 1.6mm yellow OFNR (plenum-rated) jacket and terminates with SC/APC on one end and LC/APC on the other, suitable for connecting network devices in structured cabling systems where a precise, short-run connection is required. The Opti-Core™ sub-brand signifies Panduit's commitment to quality fiber optic components.

Compatibility

This patch cord is compatible with any network equipment, fiber optic panels, or transceivers utilizing SC/APC and LC/APC connectors. It is suitable for use with OS1/OS2 single-mode fiber optic systems, including those found in enterprise data centers, telecommunications closets, and high-speed networking environments. The standard polarity and standard insertion loss specifications ensure broad interoperability with existing infrastructure.

Installation Notes

The 1.6mm cable diameter and OFNR jacket allow for installation in plenum spaces, adhering to EN 60332-1-2 standards for flame retardancy. The SC/APC and LC/APC connectors require careful handling to prevent dust contamination and scratching, which can impact performance. Ensure proper strain relief is maintained at connection points to prevent damage to the fiber or connectors.
