Overview

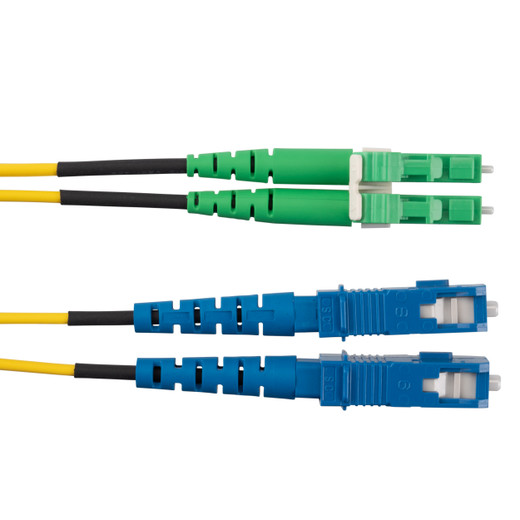

The Panduit F92ELB1SNSNM030 is a 30-meter (98.4 ft) OS2 Singlemode fiber optic patch cable designed for high-bandwidth data transmission. It features LC Duplex connectors on one end and SC Duplex connectors on the other, terminated with APC (Angled Physical Contact) polish on the LC side to minimize back reflection. The 1.6mm diameter cable utilizes a Low Smoke Zero Halogen (LSZH) jacket, making it suitable for installations in environments where fire safety and minimal smoke emission are critical, such as data centers and telecommunications rooms. This pre-terminated infrastructure enables rapid deployment and reliable connectivity for network backbone and interconnect applications.

Compatibility

This cable is engineered for use in standard fiber optic network infrastructure. The OS2 Singlemode fiber type (9/125µm) is compatible with all 1310nm and 1550nm transceivers and network equipment designed for singlemode operation. The LC Duplex and SC Duplex connectors are standard interfaces found on a wide range of network switches, routers, optical transceivers, and media converters from various manufacturers. It is intended for use within data centers, telecommunications rooms, entrance facilities, and equipment distribution areas requiring pre-terminated fiber optic cabling.

Installation Notes

The cable's LSZH jacket meets flammability standards, reducing hazardous emissions in case of fire. Ensure proper bend radius management (minimum 20x cable diameter for OS2 fiber) during installation to prevent signal degradation or damage. The APC connector polish on the LC side requires careful handling to avoid scratching; use appropriate cleaning tools and procedures. Verify connector compatibility with mating ports before insertion. The 1.6mm cable diameter is suitable for most patch panel and equipment port densities.
