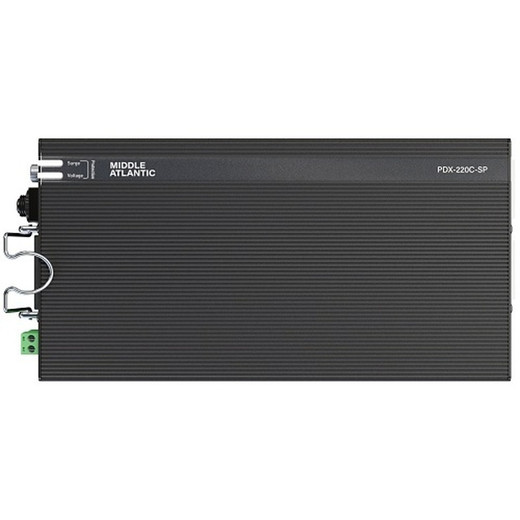

Middle Atlantic PDX-220C Compact Power Distribution Unit
Overview
The Middle Atlantic PDX-220C is a compact 2-outlet power distribution unit (PDU) designed for behind-display installations. It provides essential surge protection for sensitive AV and security equipment, preventing damage from voltage spikes and transient surges. With a NEMA 5-20P plug, it connects directly to standard 20A circuits, making it suitable for environments requiring reliable power delivery in a small footprint, such as digital signage or surveillance camera installations.
Compatibility
This PDU is designed for integration with various display mounts and enclosures that offer behind-the-display mounting capabilities. Its compact form factor ensures it fits within tight spaces often found behind monitors, projectors, or within rack enclosures. The NEMA 5-20R outlets are compatible with standard NEMA 5-20P plugs found on most commercial AV and security devices. It is intended for use with 120 VAC systems.
Installation Notes
The PDX-220C features a behind-the-display mounting design, requiring sufficient clearance within the mounting system. It utilizes a standard NEMA 5-20P plug, compatible with 20A circuits. The unit's surge protection has a peak impulse current rating of 45,000 Amps (8/20µS) and a response time of less than 1 nanosecond, offering rapid protection against voltage transients.
