APC by Schneider Electric Netshelter SX 48U Nexus 7018 Duct KIT - AR7747
APC by Schneider Electric Netshelter SX 48U Nexus 7018 Duct KIT - AR7747
APC by Schneider Electric Netshelter SX 48U Nexus 7018 Duct KIT
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

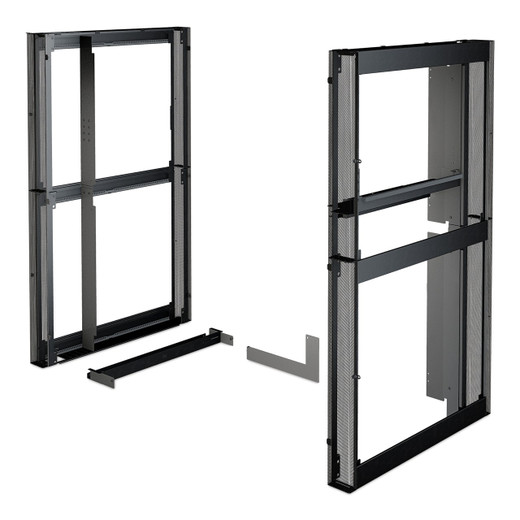

APC by Schneider Electric AR7747 Nexus 7018 Duct Kit

Overview

The APC by Schneider Electric AR7747 is a Nexus 7018 Duct Kit designed to integrate with 48U NetShelter SX enclosures. This accessory provides vertical cable management channels and airflow optimization within the rack, reducing strain on network cables and maintaining thermal performance for sensitive IT equipment. It is specifically engineered for high-density deployments where organized cabling is critical for reliability and serviceability.

Compatibility

This duct kit is compatible with APC by Schneider Electric NetShelter SX 48U enclosures, including models such as the AR3106, AR3140, and AR3150. It is designed to fit within the standard internal dimensions of these racks, ensuring a precise fit for effective cable routing and management.

Installation Notes

The AR7747 installs vertically within the rack, utilizing pre-defined mounting points. Its dimensions of 267 mm width, 1200 mm depth, and 2088 mm height are designed to align with the internal structure of compatible 48U racks. The black color blends seamlessly with the standard enclosure aesthetic. Installation requires basic hand tools and familiarization with the NetShelter SX mounting scheme.

Expert Analysis
Specifications
Product colour: Black
Rack capacity: 48U
Certification: RoHS
Width: 267 mm
Depth: 1200 mm
Height: 2088 mm
Weight: 61 kg
Package dimensions (WxDxH: 1530 x 760 x 550 mm
Package weight: 94.8 kg
Harmonized System (HS) code: 85389099
Dimensions (WxDxH: 267 x 1200 x 2088 mm
freight: 565.40
Q&A
Reviews
Product Video
Have Questions?

APC by Schneider Electric 48U Nexus Duct Kit - AR7747

$4,650.00
$3,178.99
Add to Cart
